ZSF hydraulic small scissors

Description

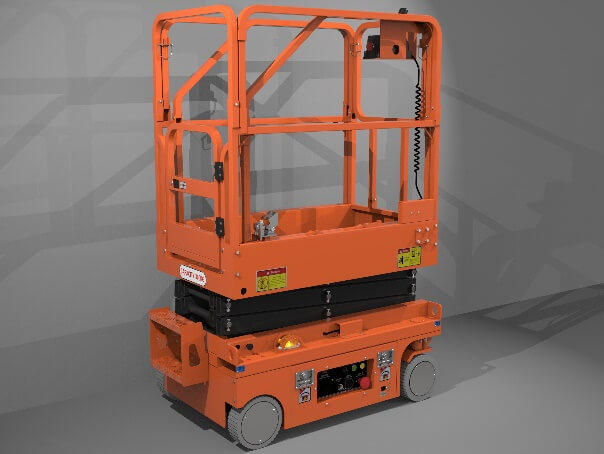

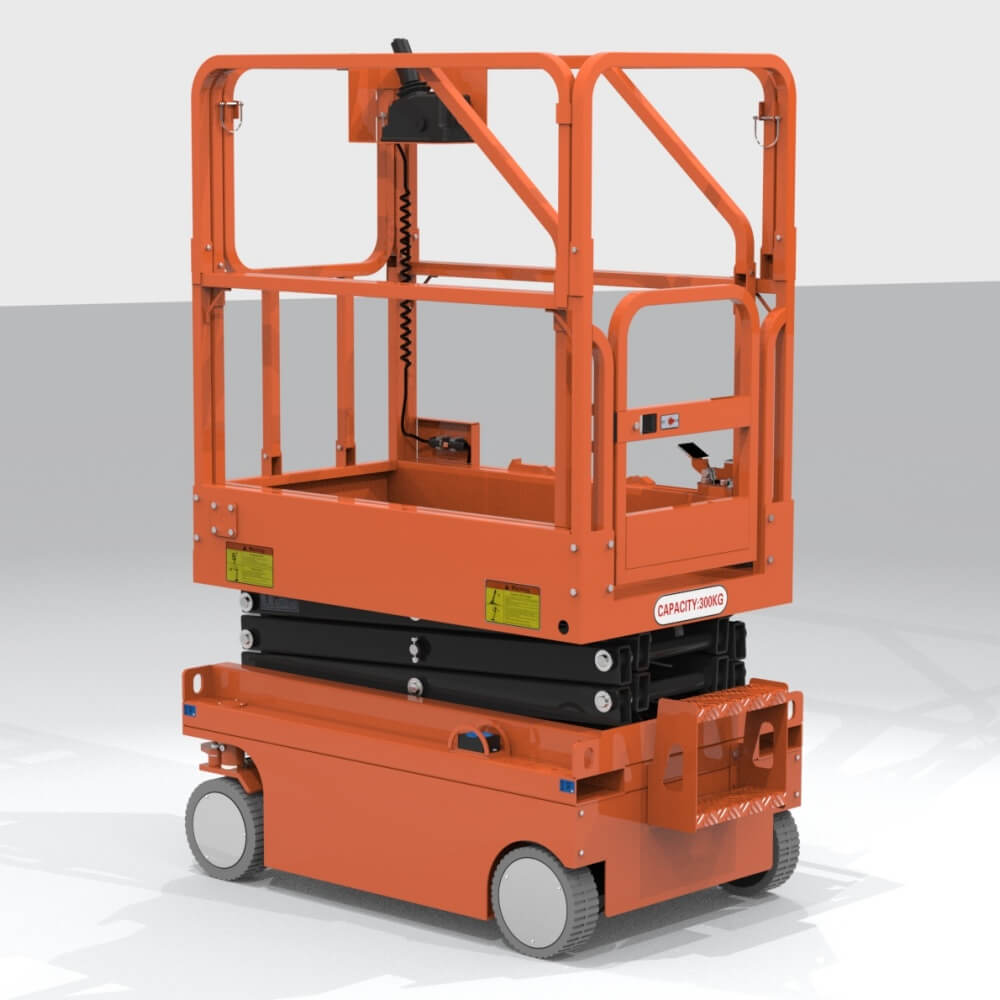

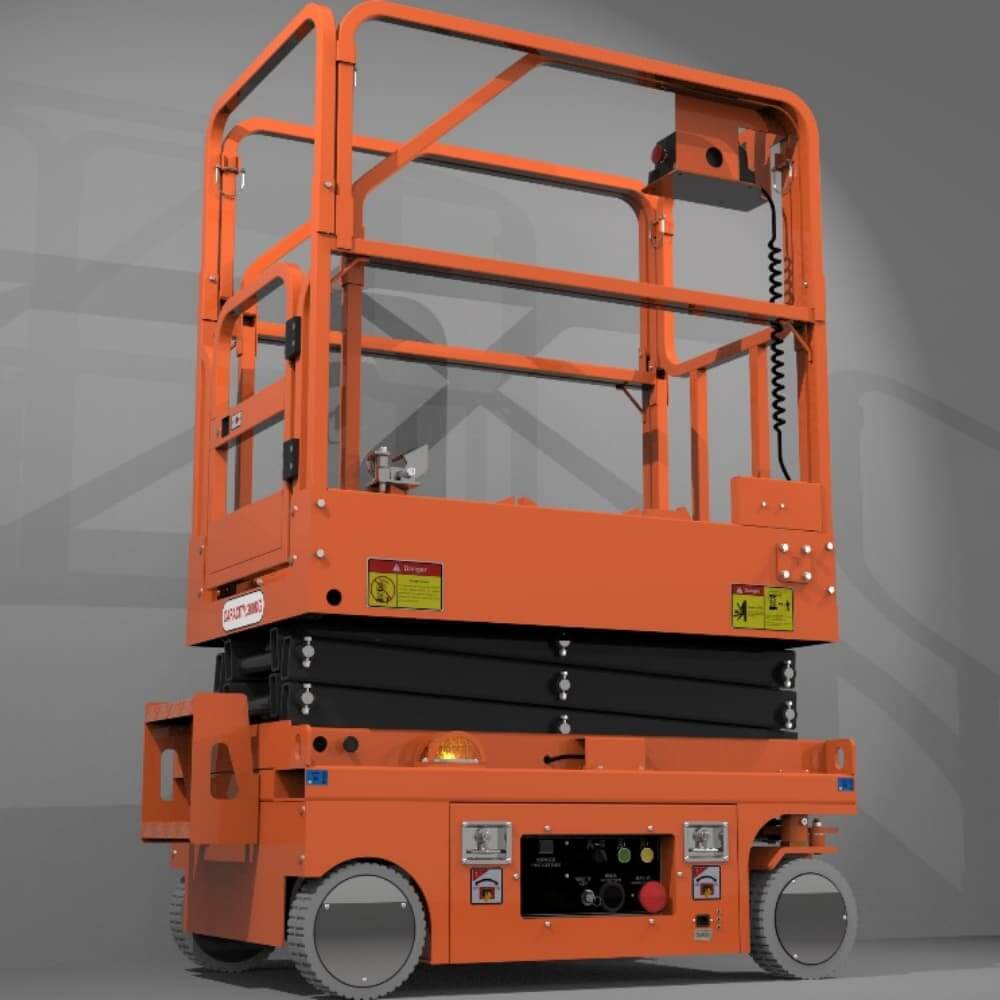

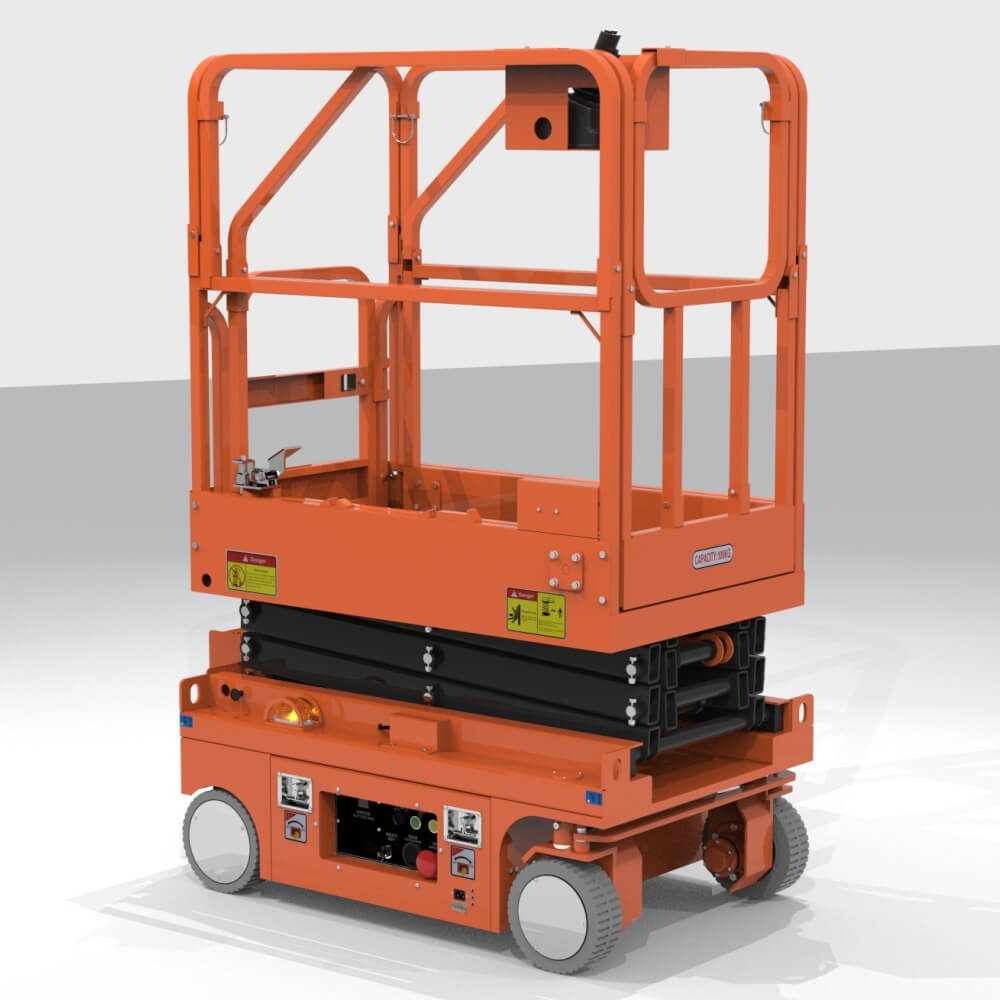

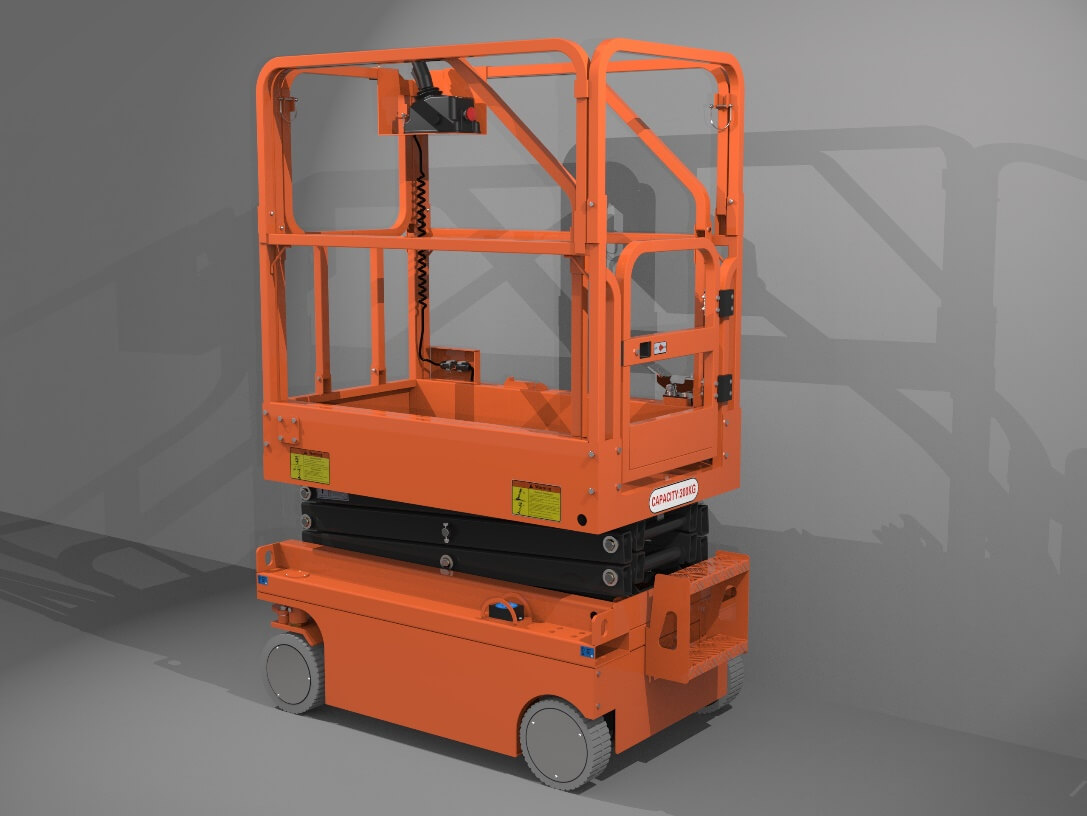

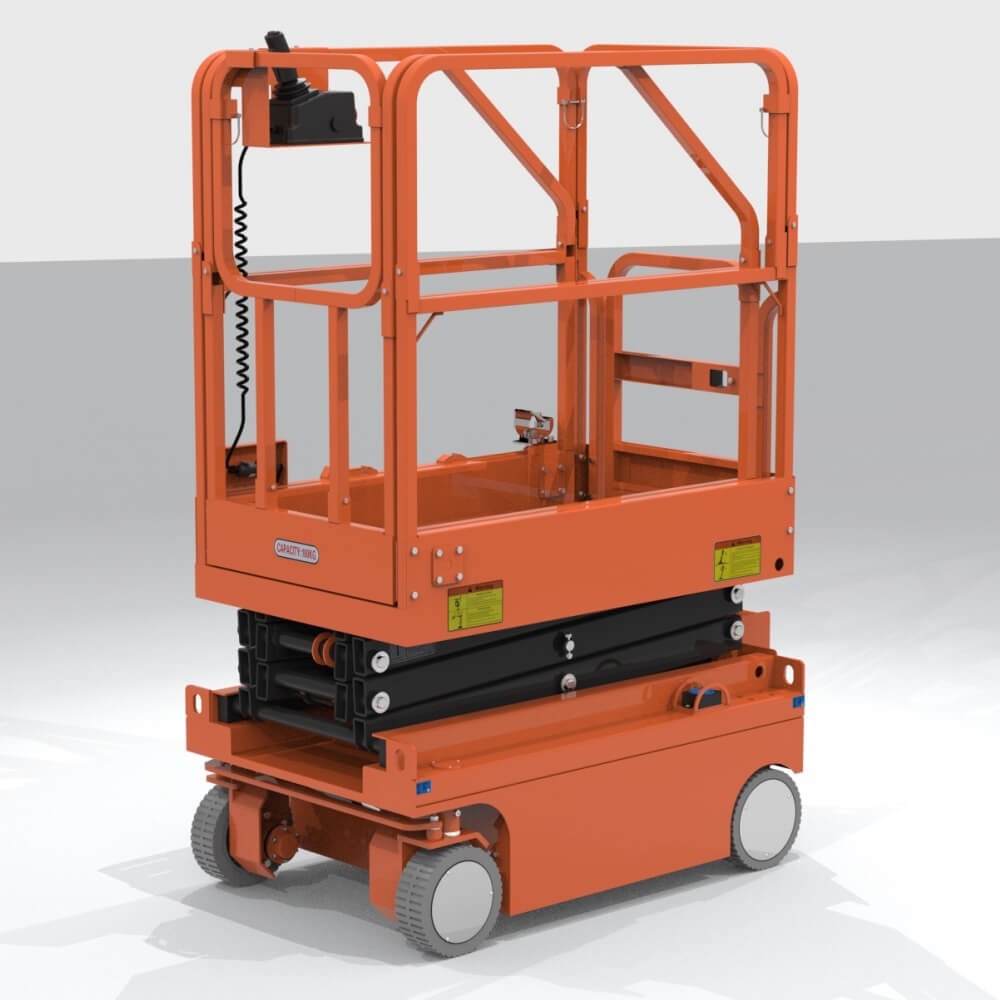

This mini scissor lift boasts a compact design, allowing it to access and work in narrow spaces. With a maximum lifting height of 4.8 meters, it adopts rear-wheel drive—while the front wheels achieve steering via hydraulic cylinders, ensuring precise maneuvering and dependable safety. As the ideal replacement for ladders, it significantly enhances workers’ efficiency.

Chat with us Leave a message

Product details

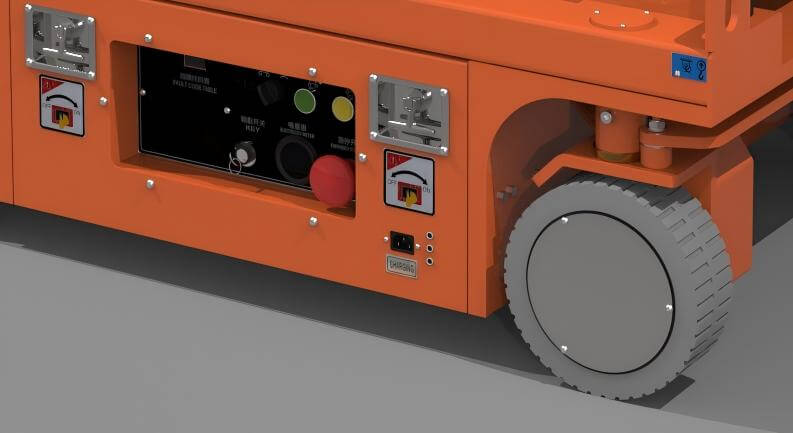

Featuring 230-mm-diameter large wheels, it confidently operates in any harsh working conditions. The pull-out drawer design enables convenient maintenance access.

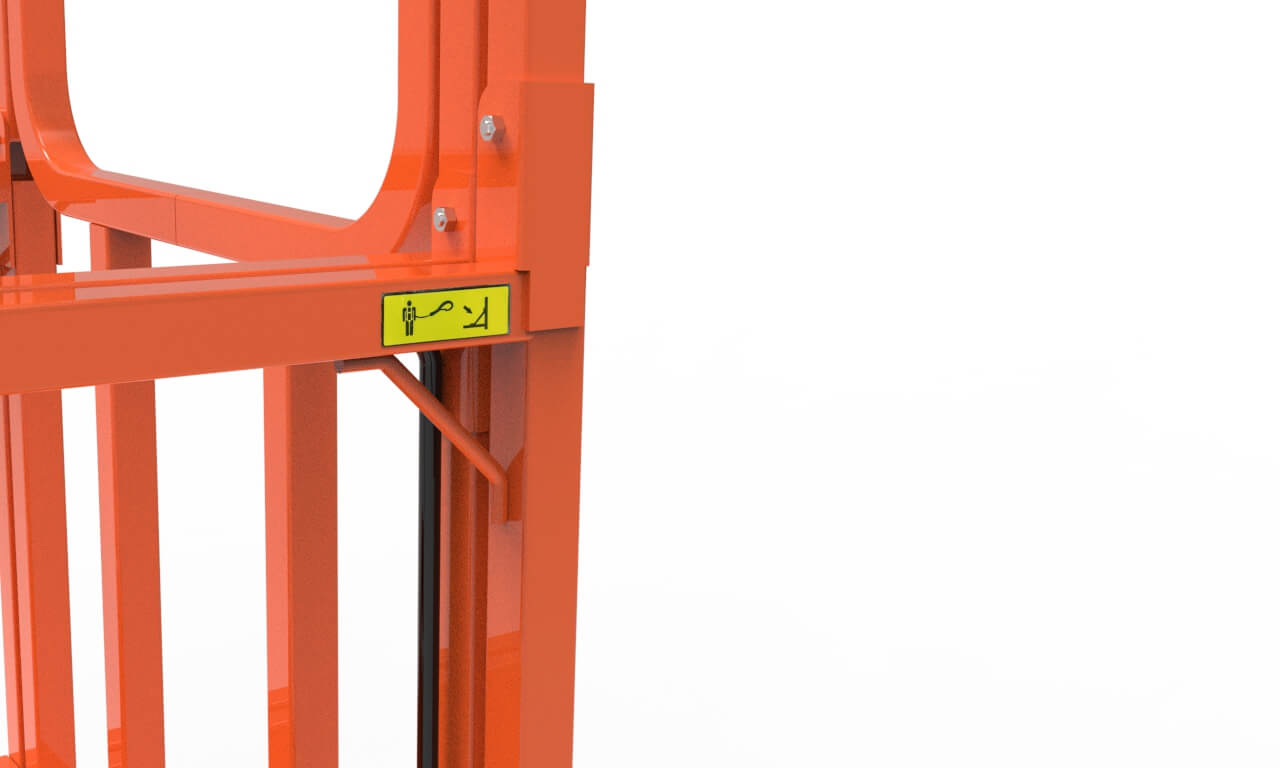

Platform-mounted Safety Hook.

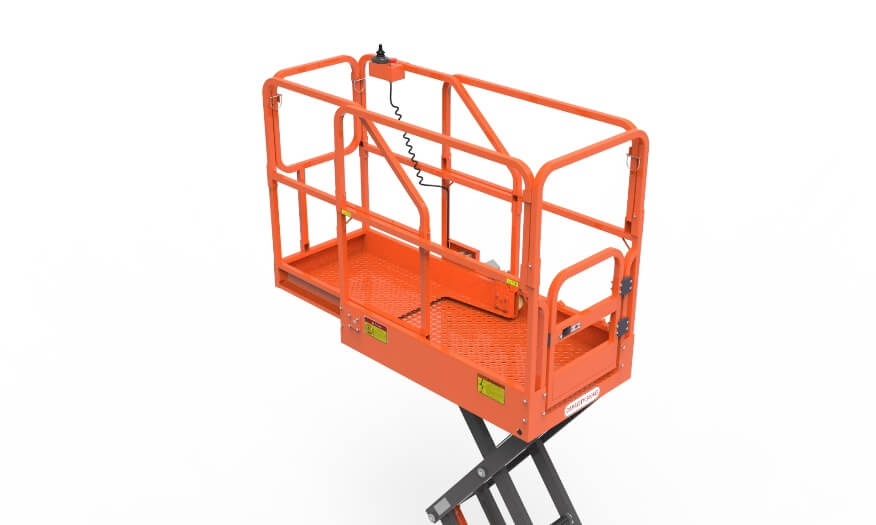

The inner platform extends outward by 550 mm, effectively expanding the operational area.

The equipment is standard-equipped with an electronic level. When the front-back or left-right tilting angles exceed safe limits, the lifting operation is automatically prohibited. Moreover, it features a hydraulic hose explosion-proof valve, effectively preventing sudden drops during aerial work caused by hose ruptures.

parameter

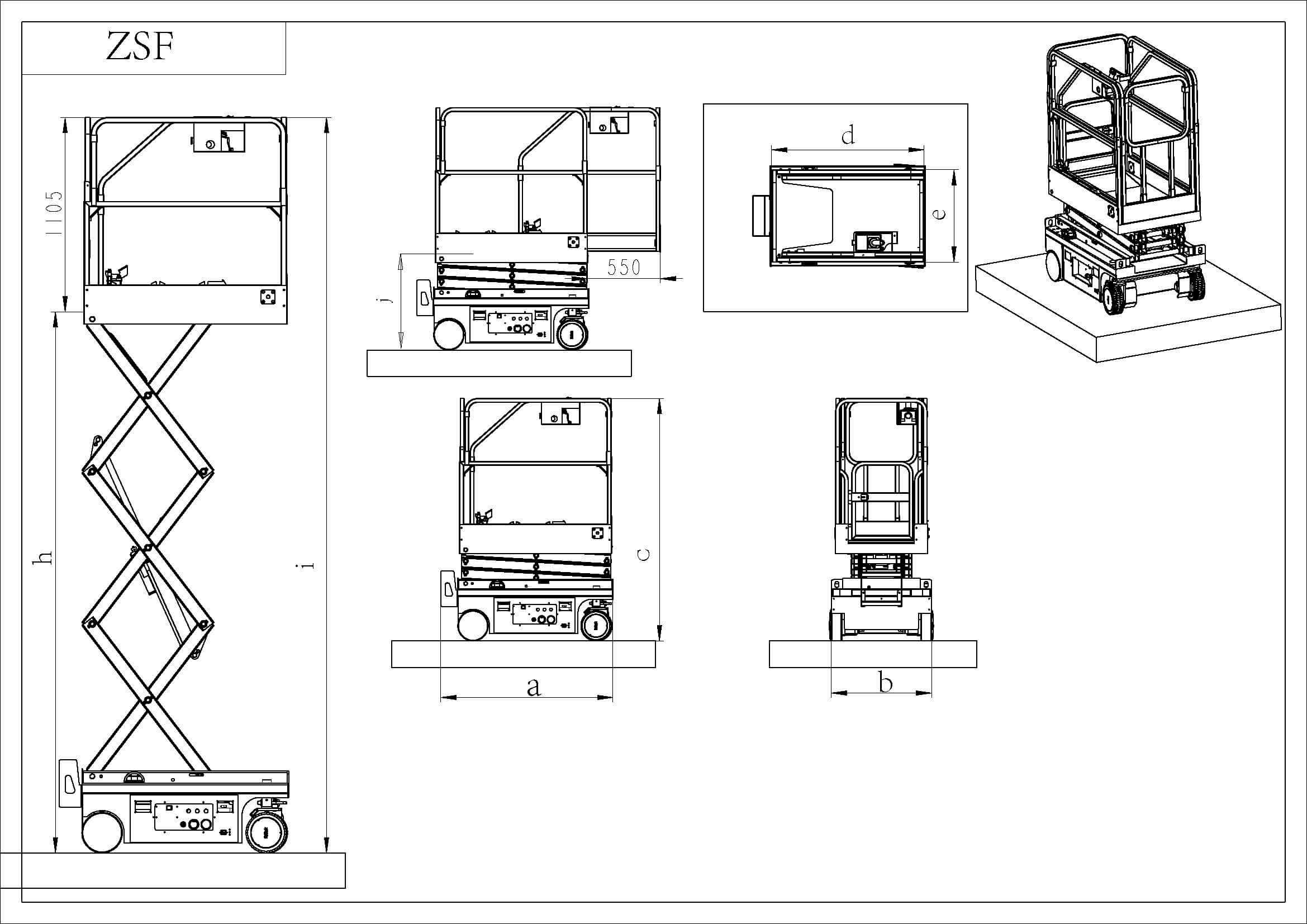

Specification （The front wheels adopt hydraulic cylinder steering）	ZSF0.3-1.8	ZSF0.3-3	ZSF0.3-3.9	ZSF0.3-4.8
Max.platform Height mm (h)	1800	3000	3900	4800
Max.machine Height mm (i)	2860	4060	4960	5860
Overall Length mm (a)	1300
Overall Width mm （b）	760
Overall Height mm (c)	1645	1725	1805	1885
Platform length mm (d)	1155
Platform width mm (e)	600
Platform height above ground mm (j)	585	665	745	825
mm Ground clearance mm	60
Max load Kg	300
Extended platform load Kg	100Kg
Lifting Motor V/Kw	24/1.2
Traveling motor V/KW	2 X 24X0.5
Travel speed Km/h	0~3.5
Minimum turning radius mm	1600
Battery voltage/capacity V/Ah	2 X 12/80

Support non-standard customization

This equipment supports function customization tailored to clients’ specific needs.
