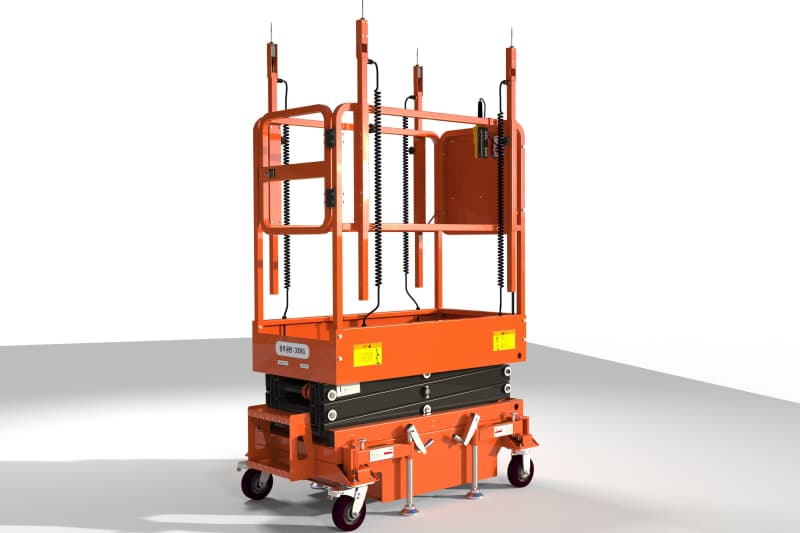

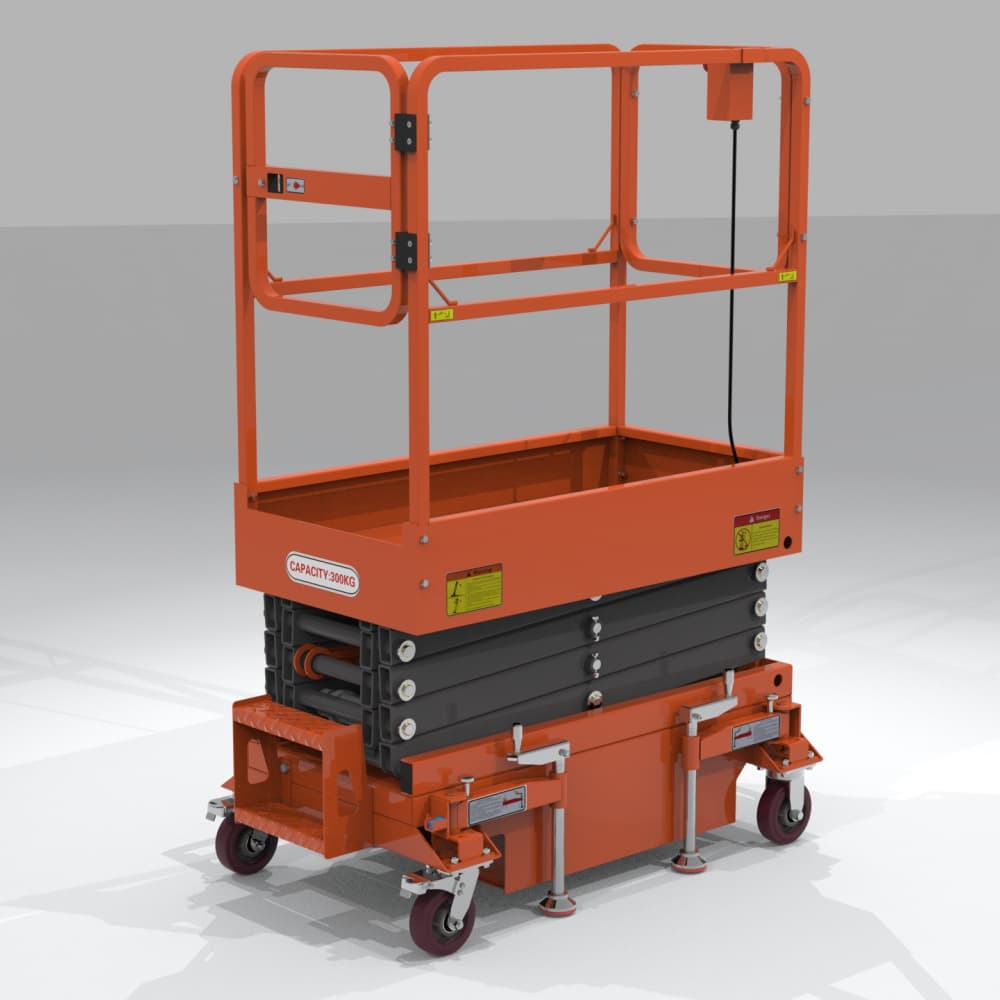

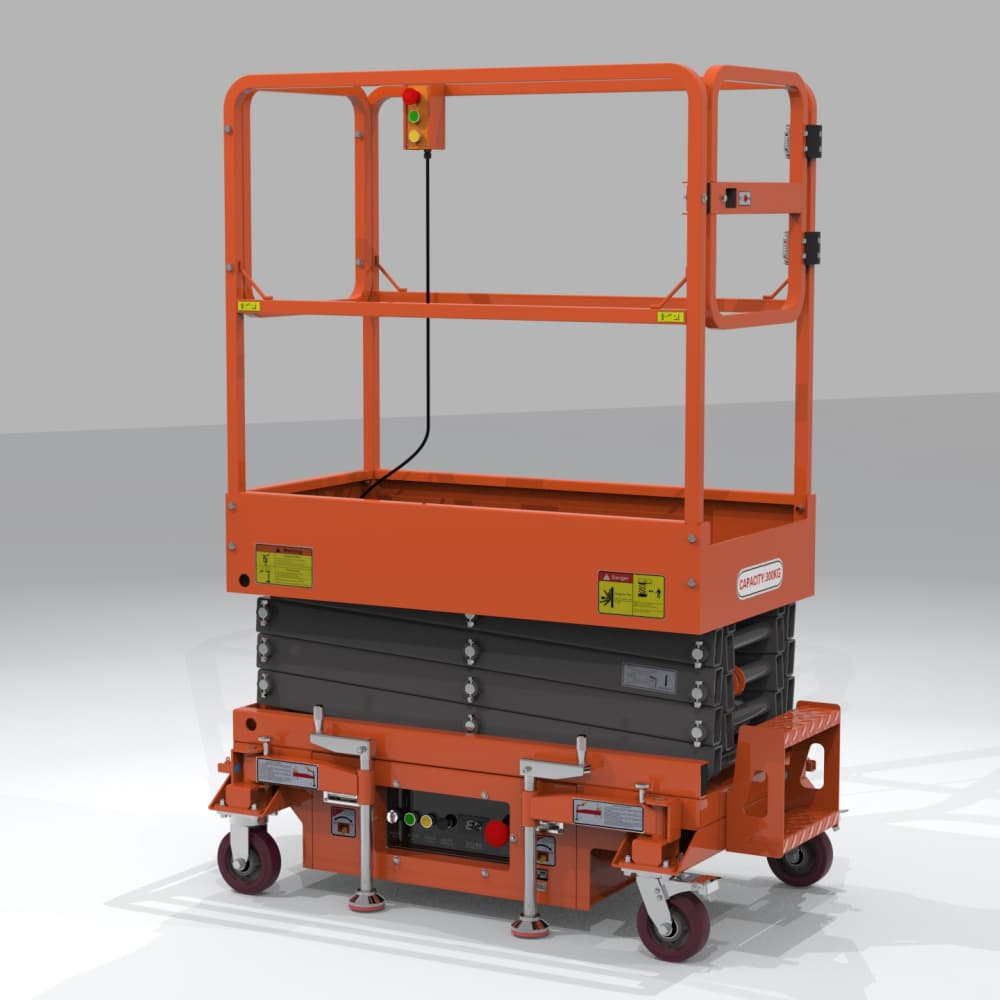

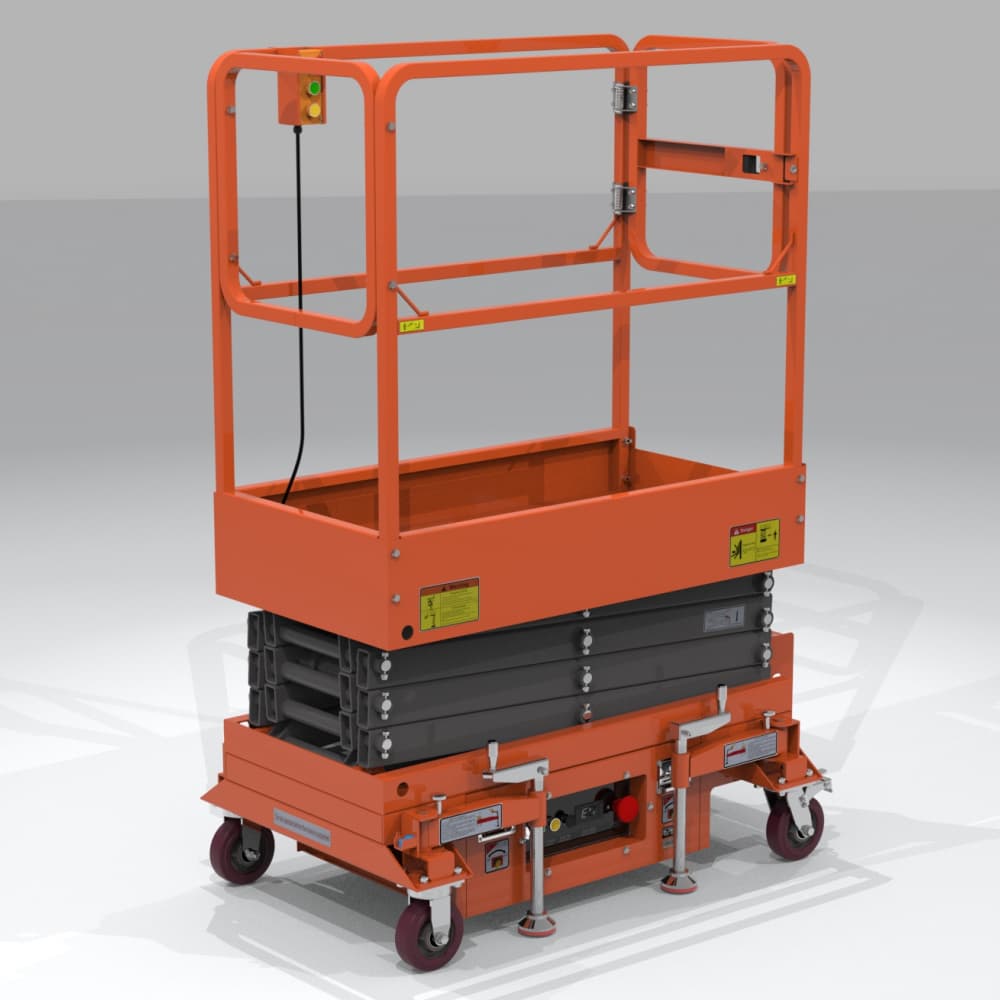

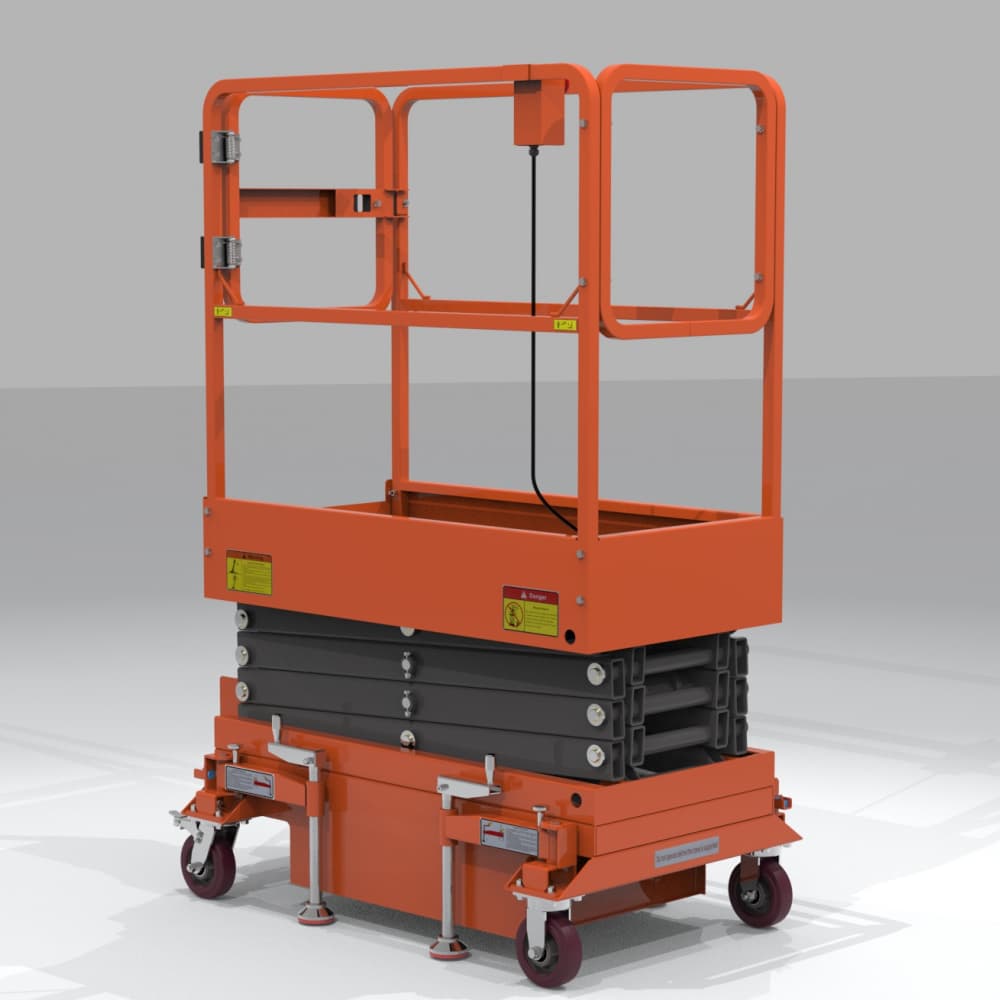

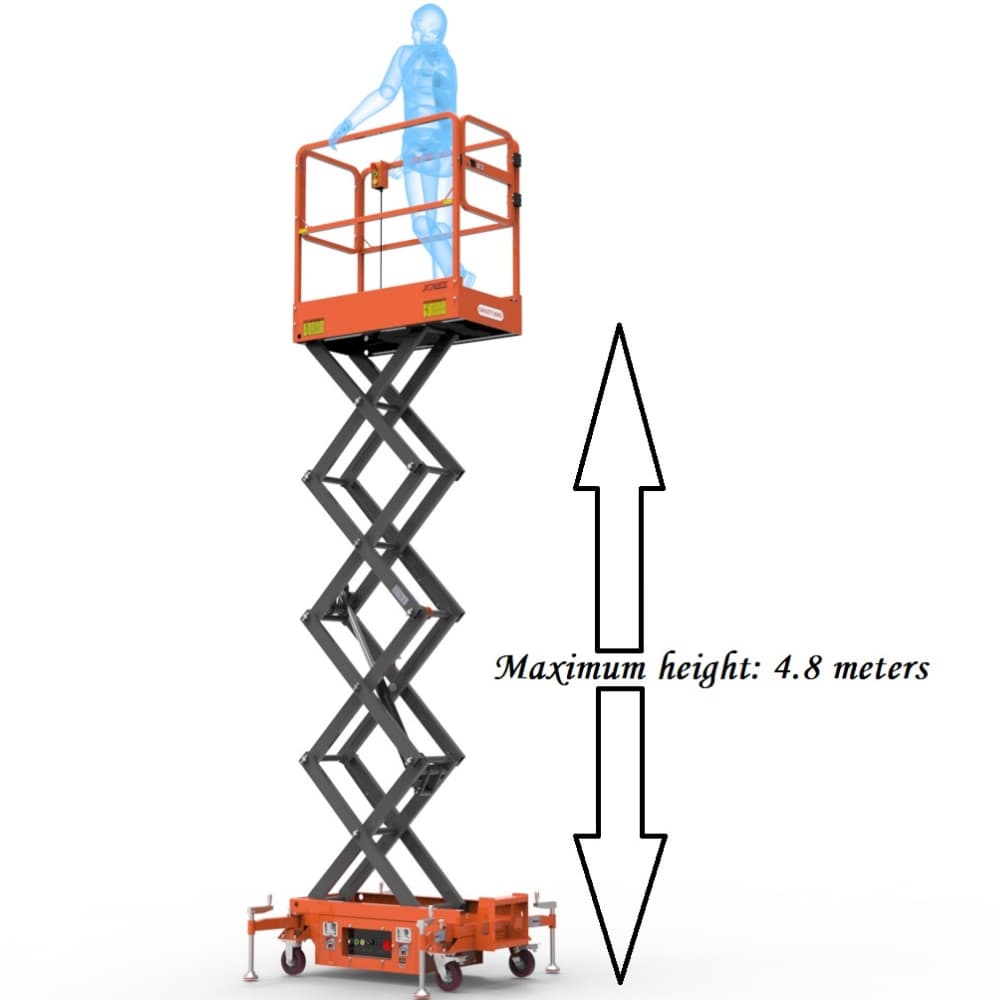

Characterized by its compact size and lightweight design, this equipment is incredibly easy to push and pull, making it an ideal choice for high – altitude operations in confined spaces. With a maximum working height of 4.8 meters, it can comfortably accommodate two workers simultaneously, enabling efficient and safe work at elevated positions.

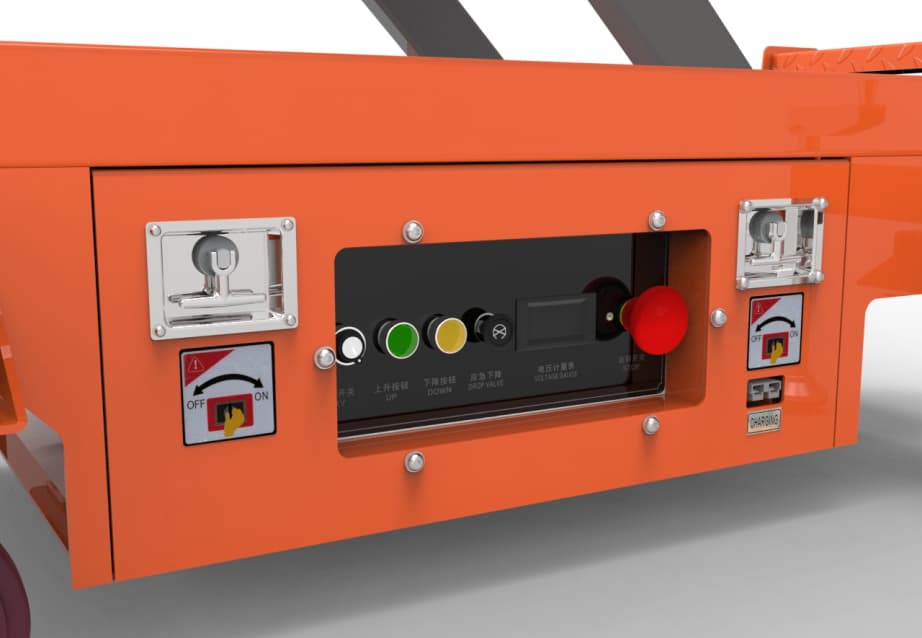

The control panel under the chassis comes with a voltmeter display and a manual emergency lowering device

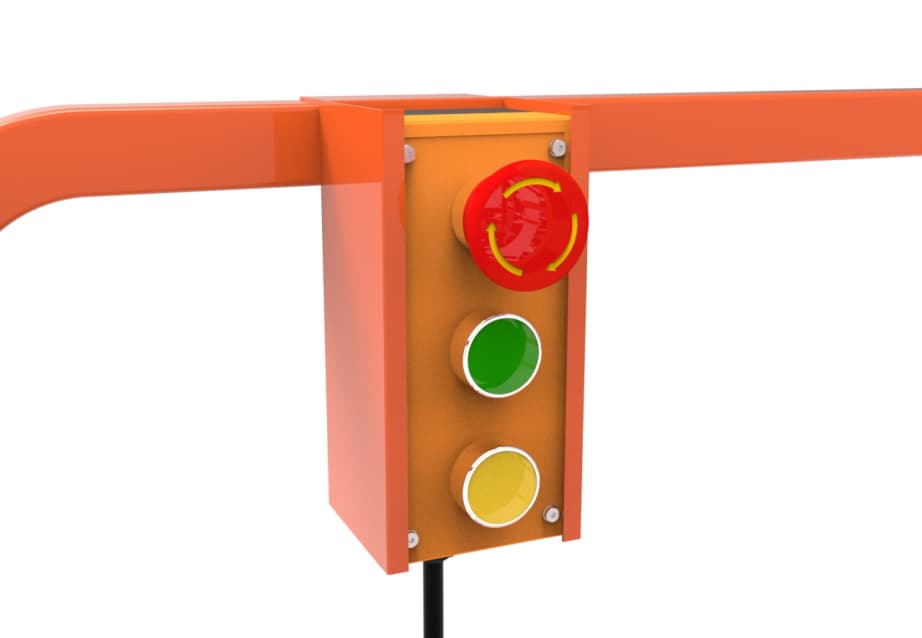

The upper control button box adopts a jogging control mode. When the button is pressed, the equipment ascends, and it stops once the button is released.

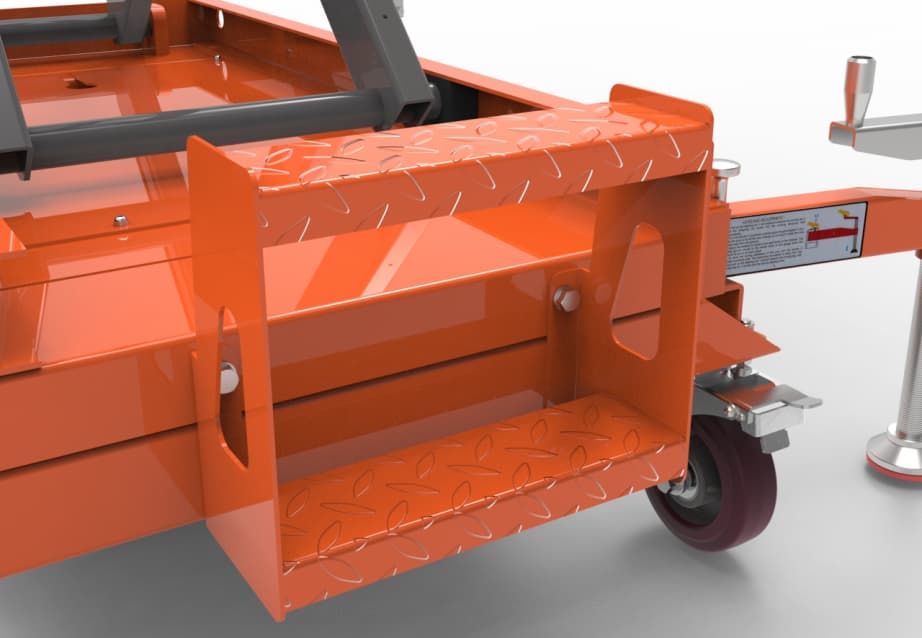

The stairs are made of high-quality checkered steel plates to prevent slipping.

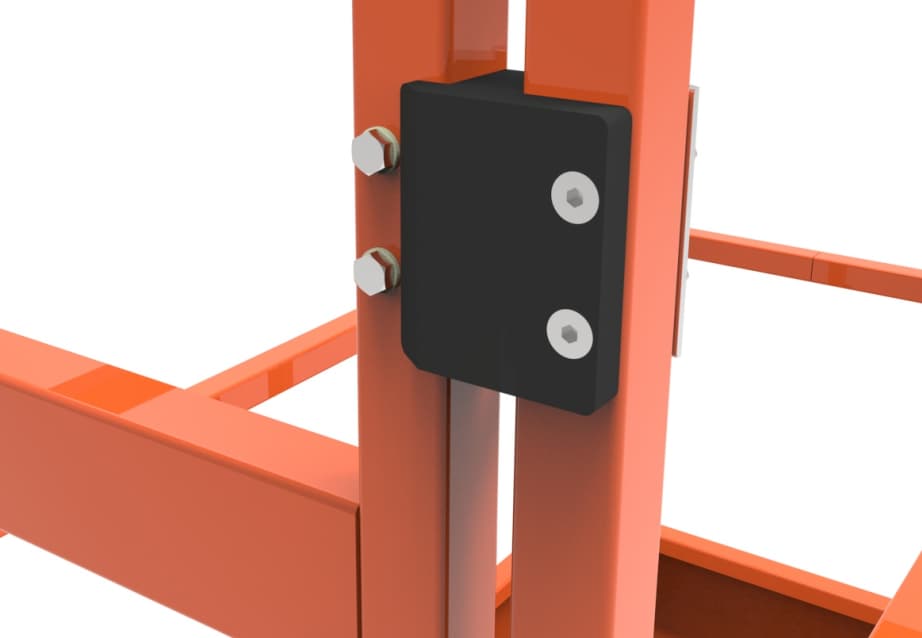

The door hinges are made of high-quality steel combined with plastic blocks. They can be opened and closed ten thousand times without deformation or noise.

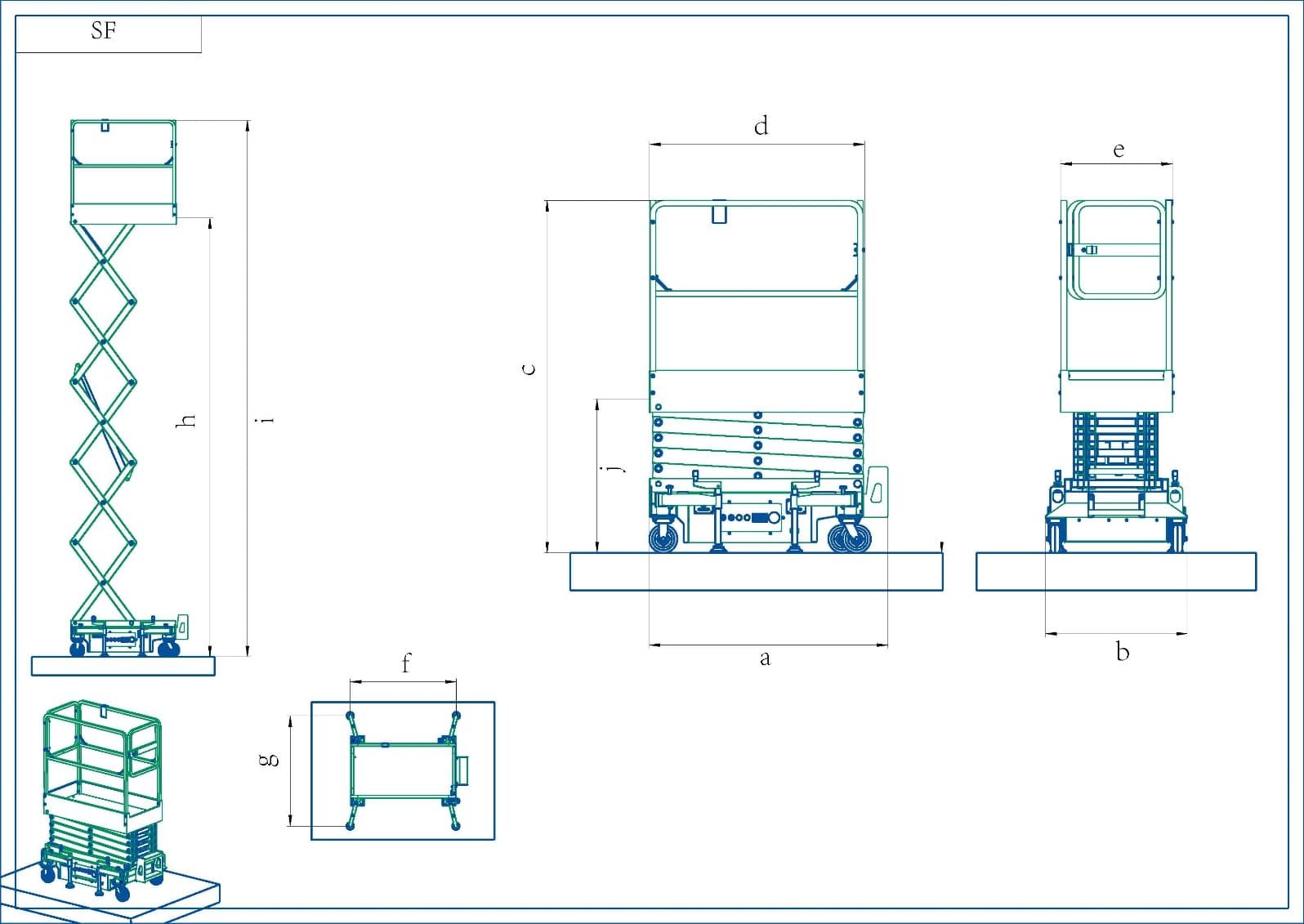

| Specification | SF0.3-1.8 | SF0.3-3 | SF0.3-3.9 | SF0.2-4.8 |
| Max.platform Height (h) | 1800 | 3000 | 3900 | 4800 |
| Max.machine Height (i) | 2860 | 4060 | 4960 | 5860 |
| Overall Length (a) | 1300 | |||
| Overall Width （b） | 760 | |||
| Overall Height (c) | 1645 | 1725 | 1805 | 1885 |
| Platform length (d) | 1155 | |||
| Platform width (e) | 600 | |||
| Platform height above ground (j) | 585 | 665 | 745 | 825 |
| Support foot expansion size
(f X g) |
No support leg | 1170 X 1215 | ||
| Max load Kg | 300 | 200 | ||
| Lifting Motor V/Kw | 12/0.8 | |||
| Time of rise S | 11 | 35 | 41 | 46 |
| Time of descent S | 8 | 25 | 29 | 36 |
| Charger V/A | 12/15 | |||
| Batteryvoltage/capacity V/Ah | 12V/105Ah | |||
| Tire size mm | Φ150*50 | |||
| Overall Net Weight Kg | 360 | 390 | 450 | 480 |
This equipment offers enhanced safety features. It is equipped with an anti – over – topping device and an electronic level gauge, ensuring a higher level of security during operation.
In addition to safety upgrades, we also provide customization options. You can choose the color of the equipment according to your personal preferences, allowing it to better integrate with your working environment.
Moreover, we support the addition of extra features. For example, you can have a power outlet installed on the operating platform for convenient use of electrical tools. You can also opt to add an air pipe connector, which is especially useful for pneumatic tools. This flexibility ensures that the equipment can be tailored to meet your specific work requirements.
