Description

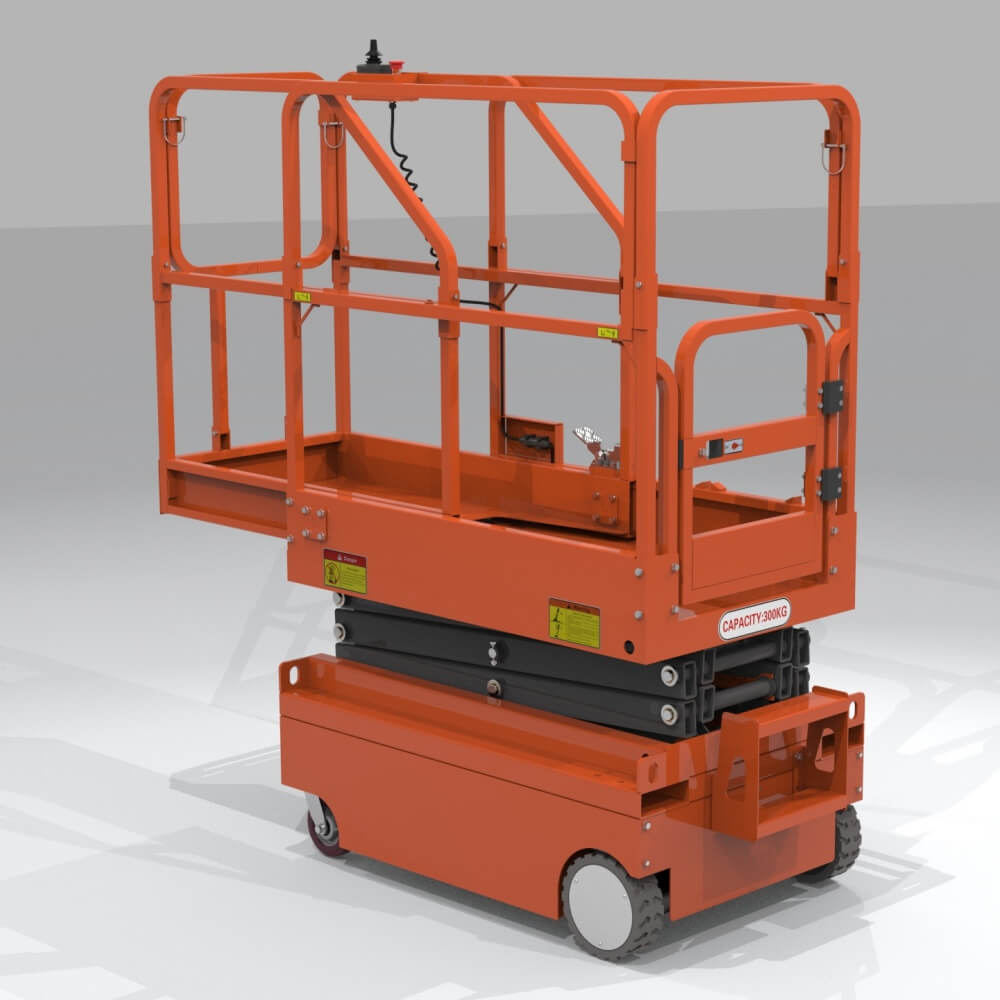

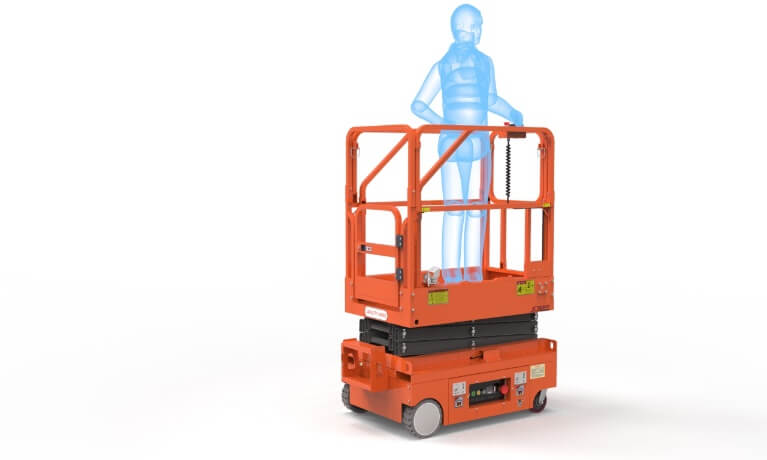

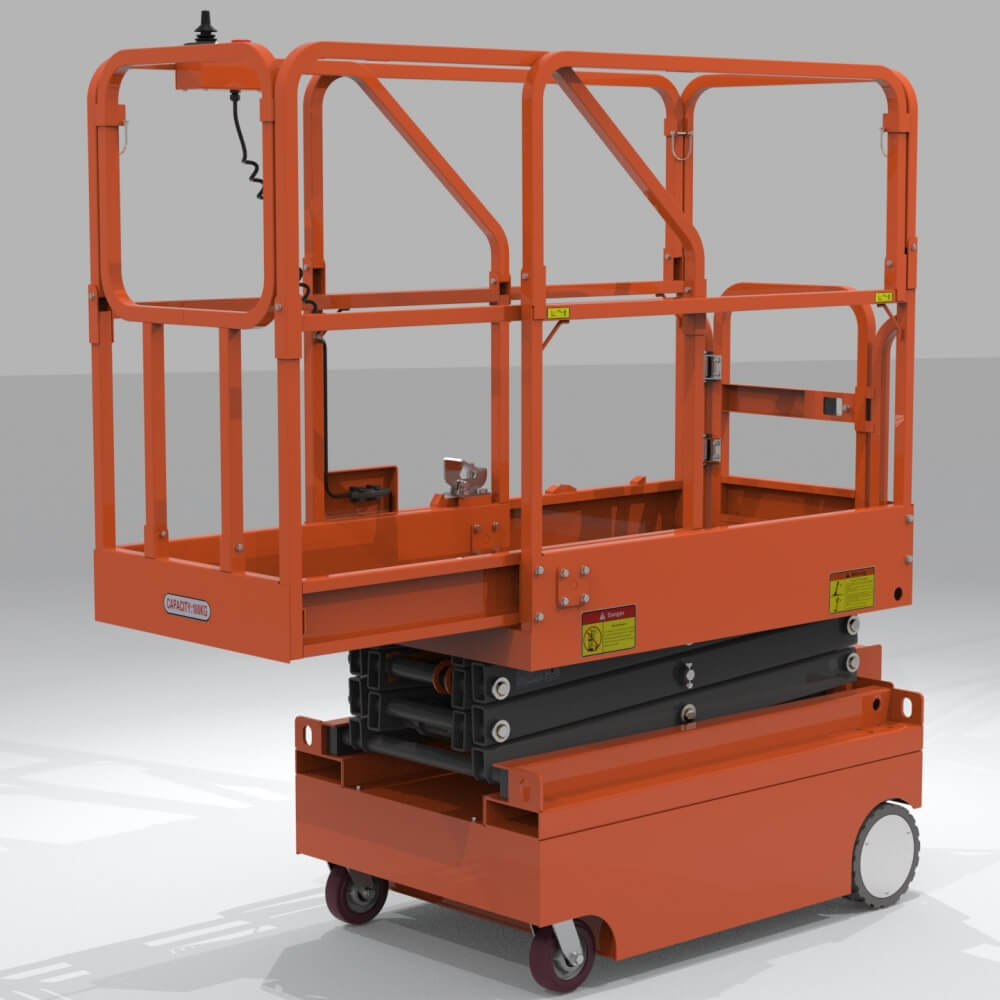

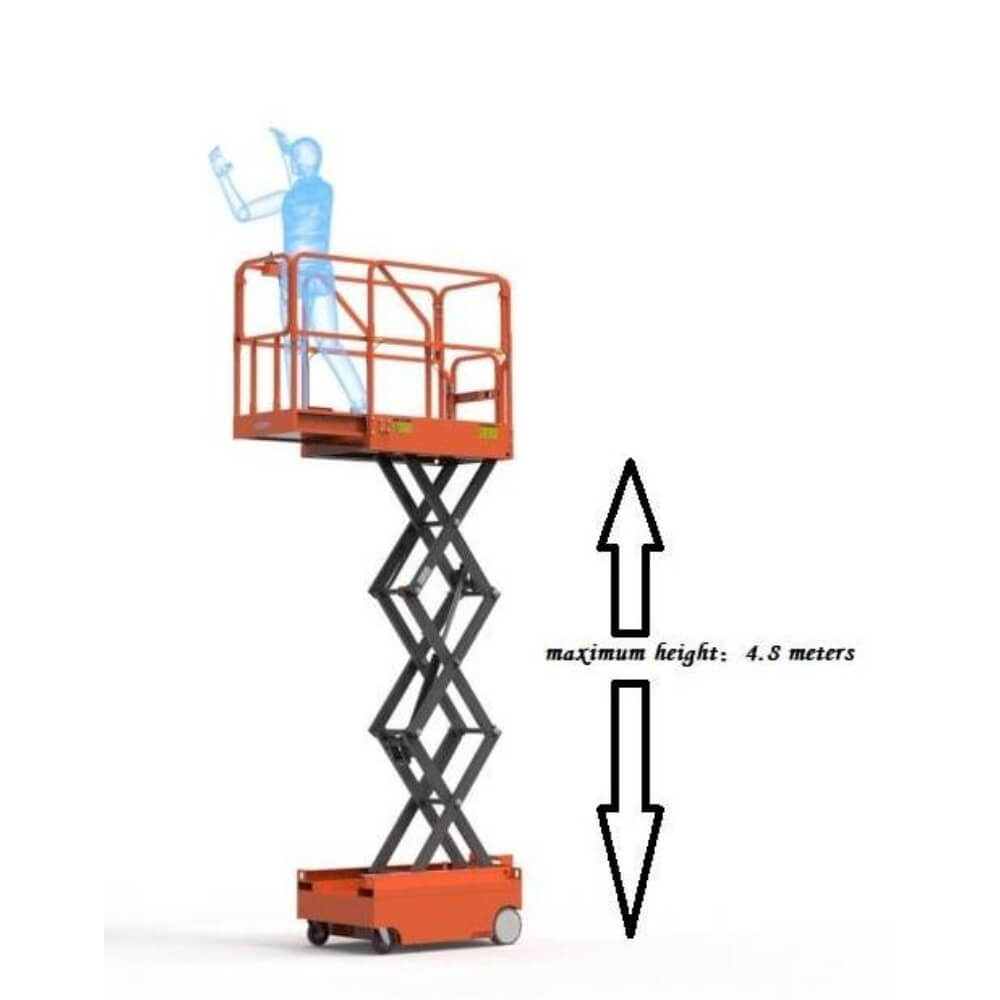

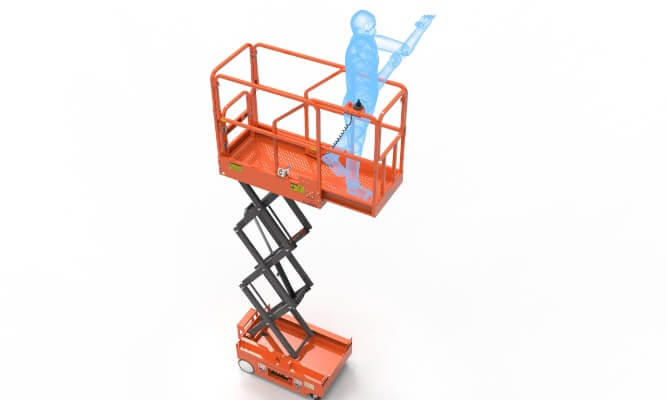

This aerial work platform features a compact design, making it a perfect choice for aerial operations in confined spaces. With a maximum platform height of 4.8 meters, it can accommodate two operators simultaneously. Equipped with dual-driven wheels, it achieves flexible movement via motor differential speed, ensuring agile and smooth turns. It should be noted that this equipment is only suitable for paved surfaces.

Chat with us Leave a message
Product details

ASF small scissors

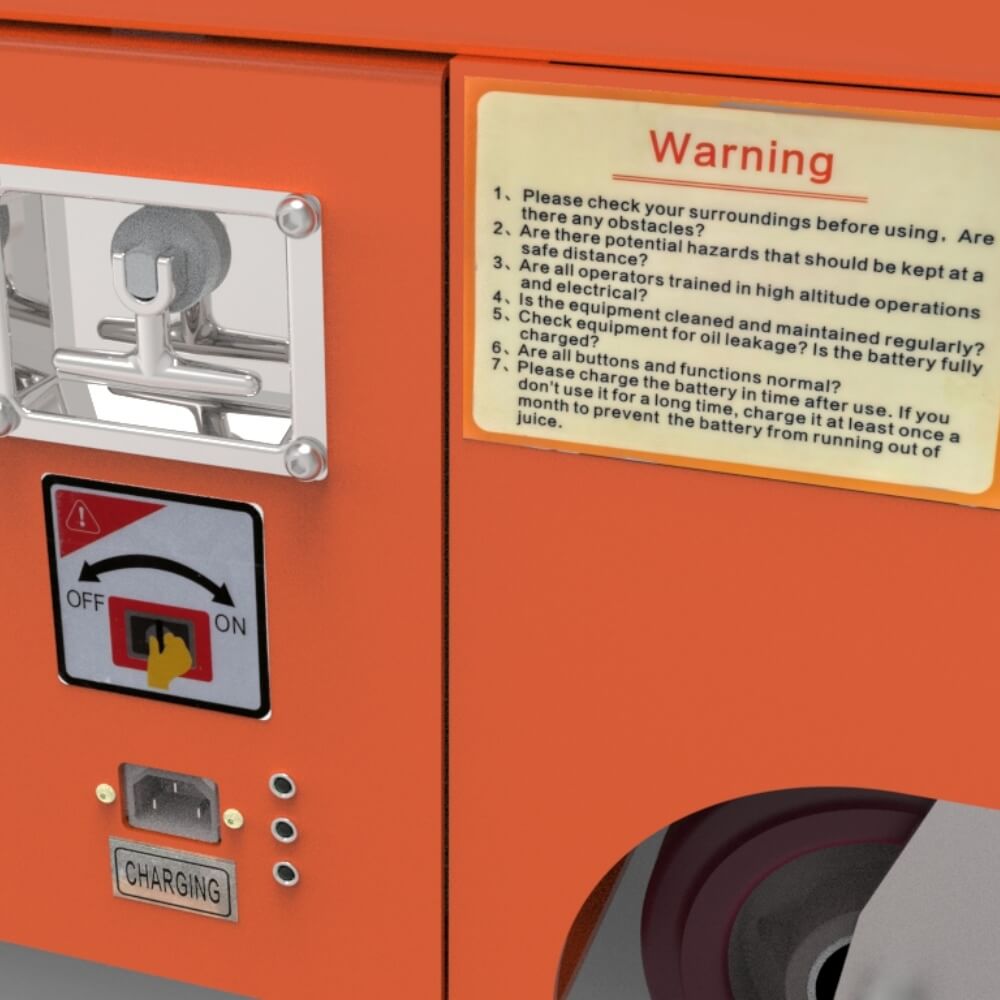

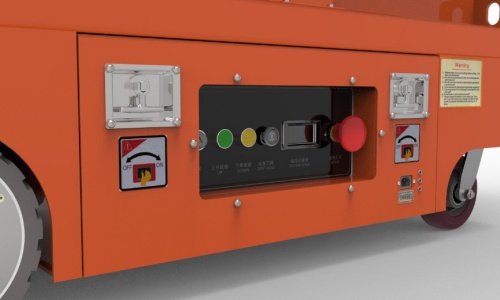

The electrical control section of the all-electric mini scissor lift’s chassis is equipped with an emergency lowering device and battery level display. Designed in a drawer style, it streamlines maintenance procedures and battery replacement, offering greater convenience for (maintenance) and ensuring smoother operational upkeep.

ASF small scissors

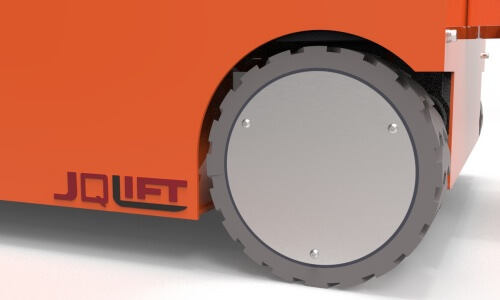

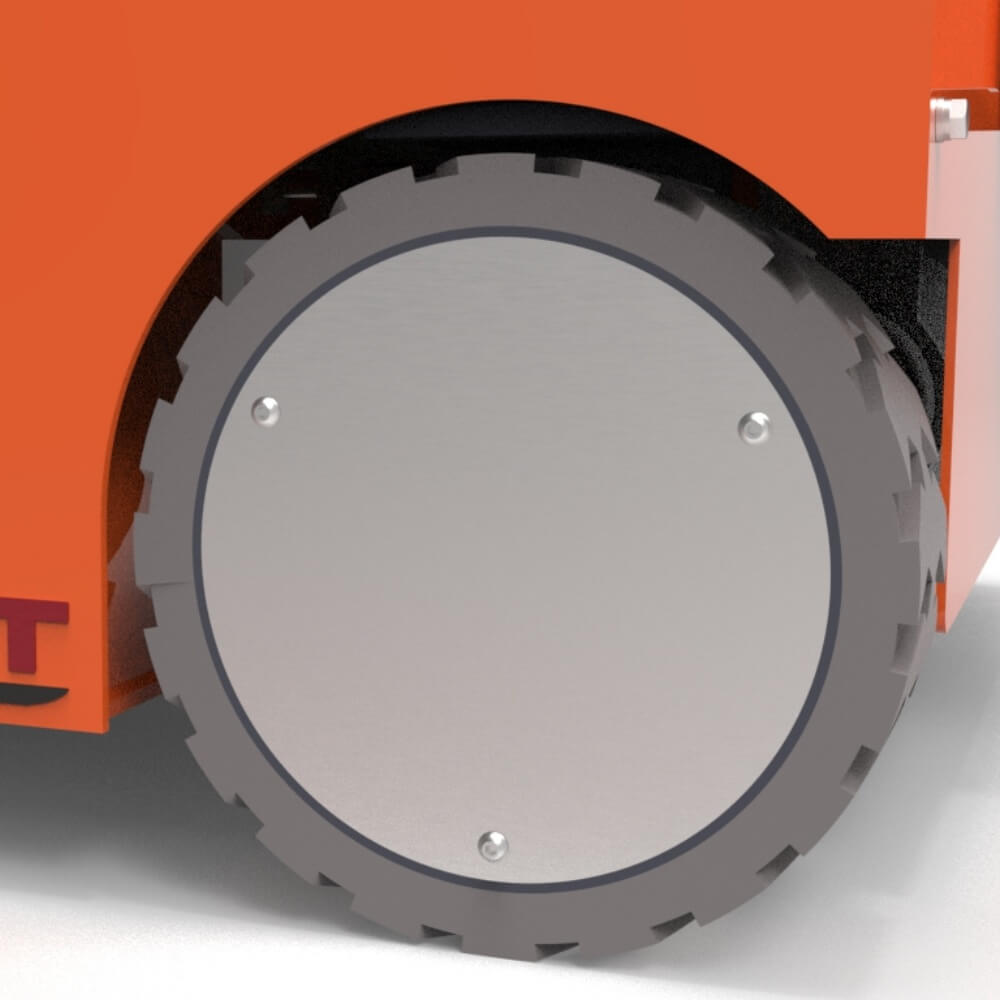

Featuring premium – quality drive wheels with a power output of 500W.

ASF small scissors

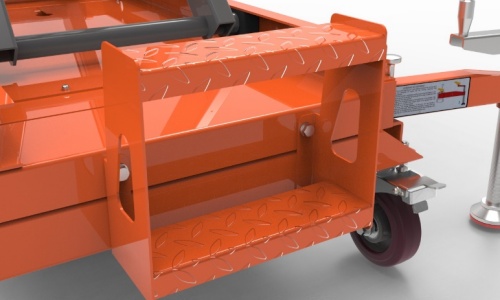

The stairs are made of high-quality checkered steel plates to prevent slipping.

ASF small scissors

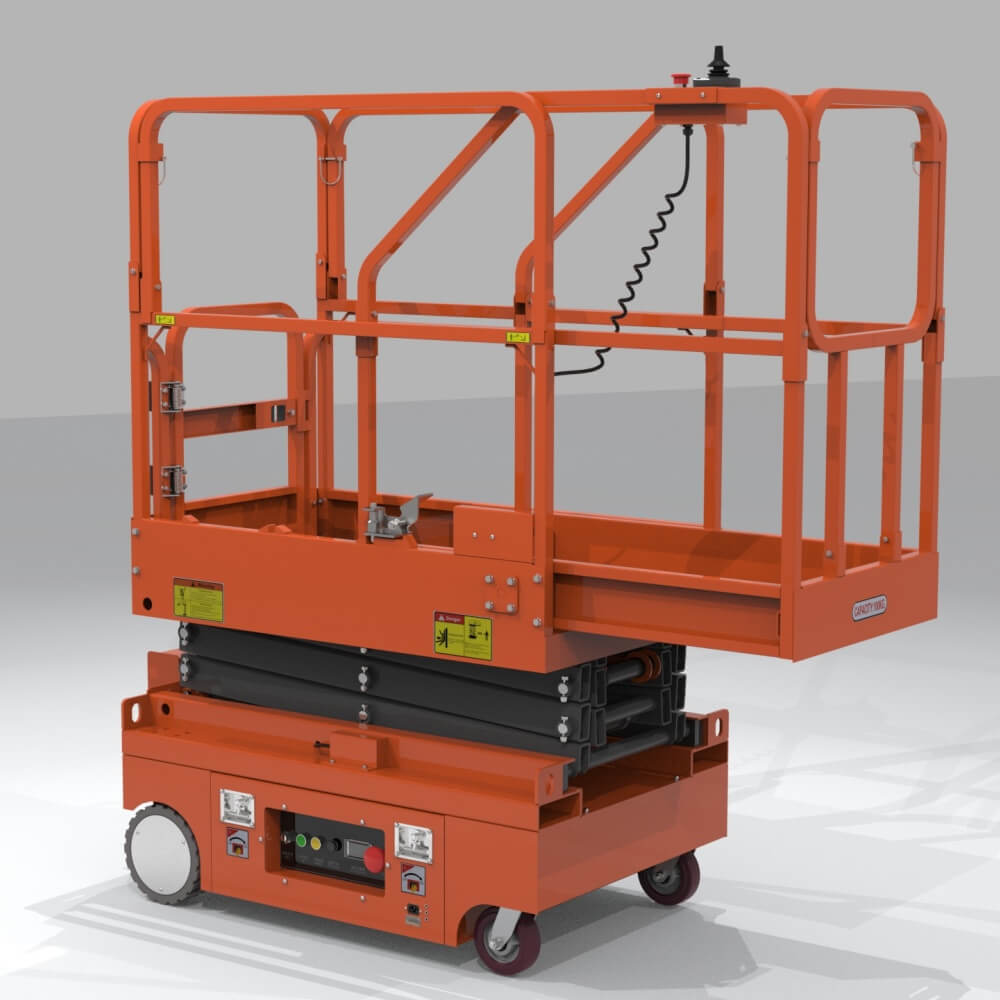

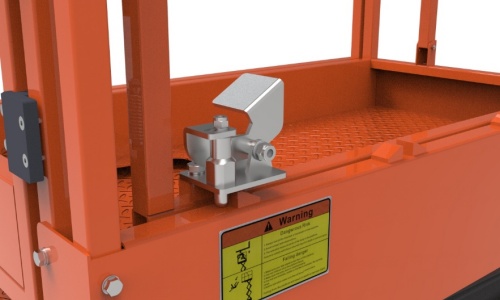

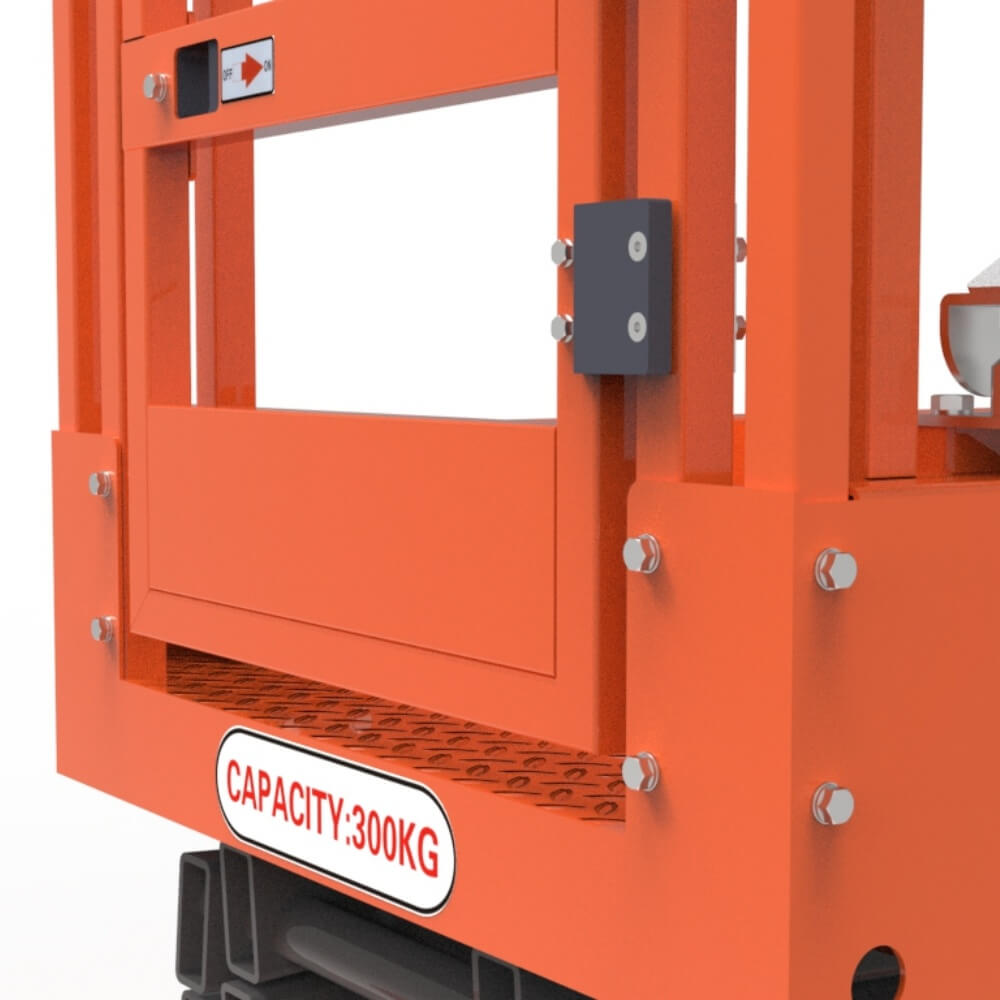

The platform surface is constructed with checkered plate. The inner platform allows an outward extension of 550 mm, equipped with a foot-operated locking mechanism that adopts integrated casting technology, ensuring robust durability.

parameter

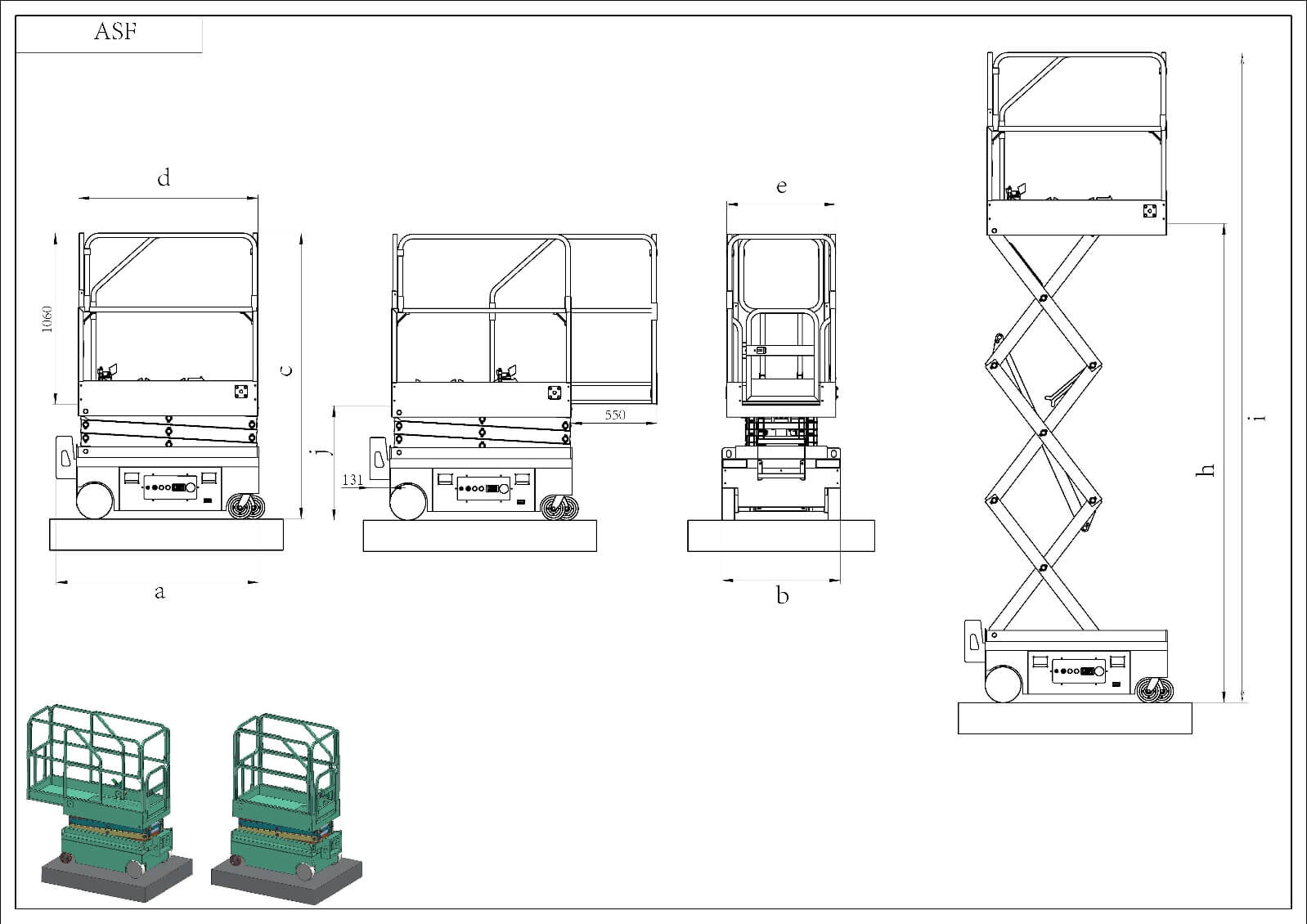

Specification ASF0.3-1.8 ASF0.3-3 ASF0.3-3.9 ASF0.3-4.8
Max.platform Height mm  (h) 1800 3000 3900 4800
Max.machine Height mm  (i) 2860 4060 4960 5860
Overall Length mm  (a) 1300
Overall Width mm （b） 760
Overall Height mm (c) 1645 1725 1805 1885
Platform length mm (d) 1155
Platform width mm (e) 600
Platform height above ground mm (j) 585 665 745 825
mm Ground clearance mm 60
Max load Kg 300
Extended platform load Kg 100Kg
Lifting Motor V/Kw 24/1.2
Traveling motor V/KW 2  X  24X0.5
Travel speed Km/h 0~3.5
Minimum turning radius mm 1600
 Battery voltage/capacity V/Ah 2  X  12/80
Time of rise S 11 17 23 29
Time of descent S 9 15 21 27
Charger V/A 24/15
Front tire size mm 2  X  Φ150*50
Rear tire size mm 4  X  Φ230*80
Overall Net Weight Kg 600 630 660 690

ASF small scissors

Support non-standard customization
ASF small scissors ASF small scissors



This equipment supports function customization tailored to clients’ specific needs.
