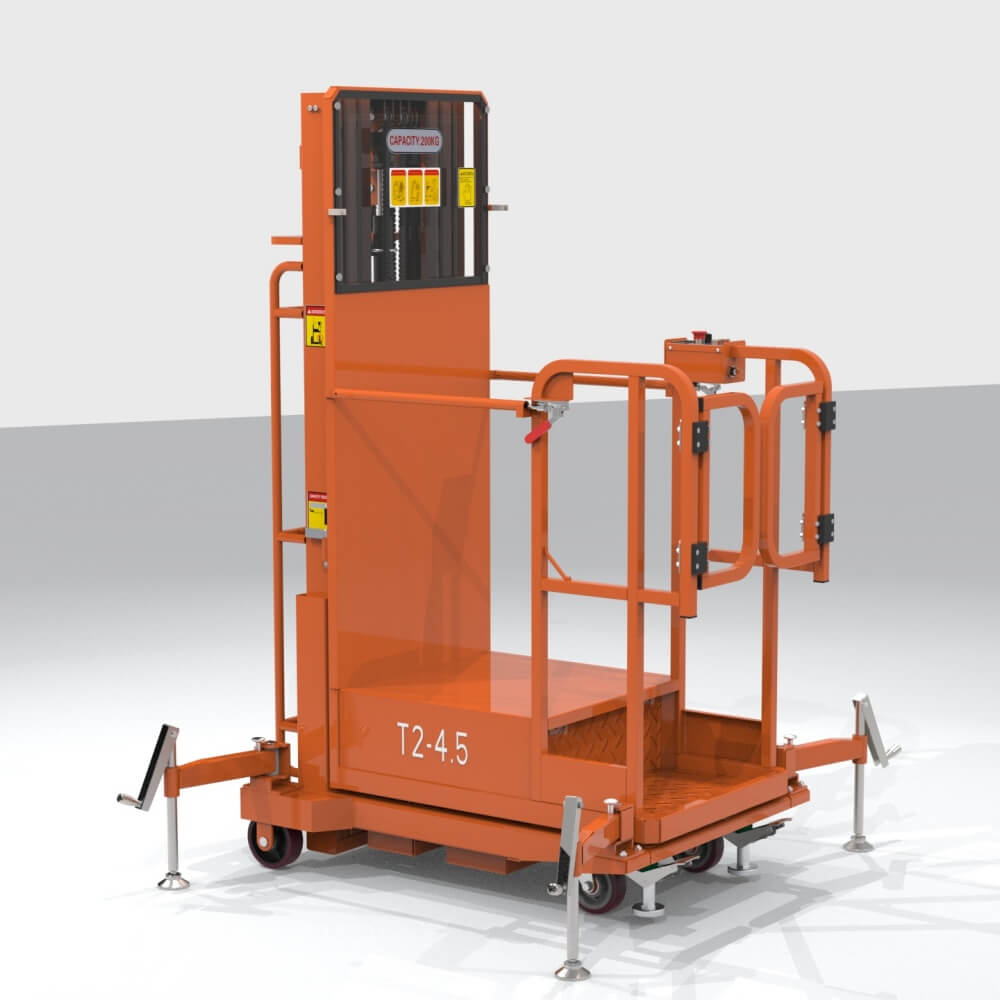

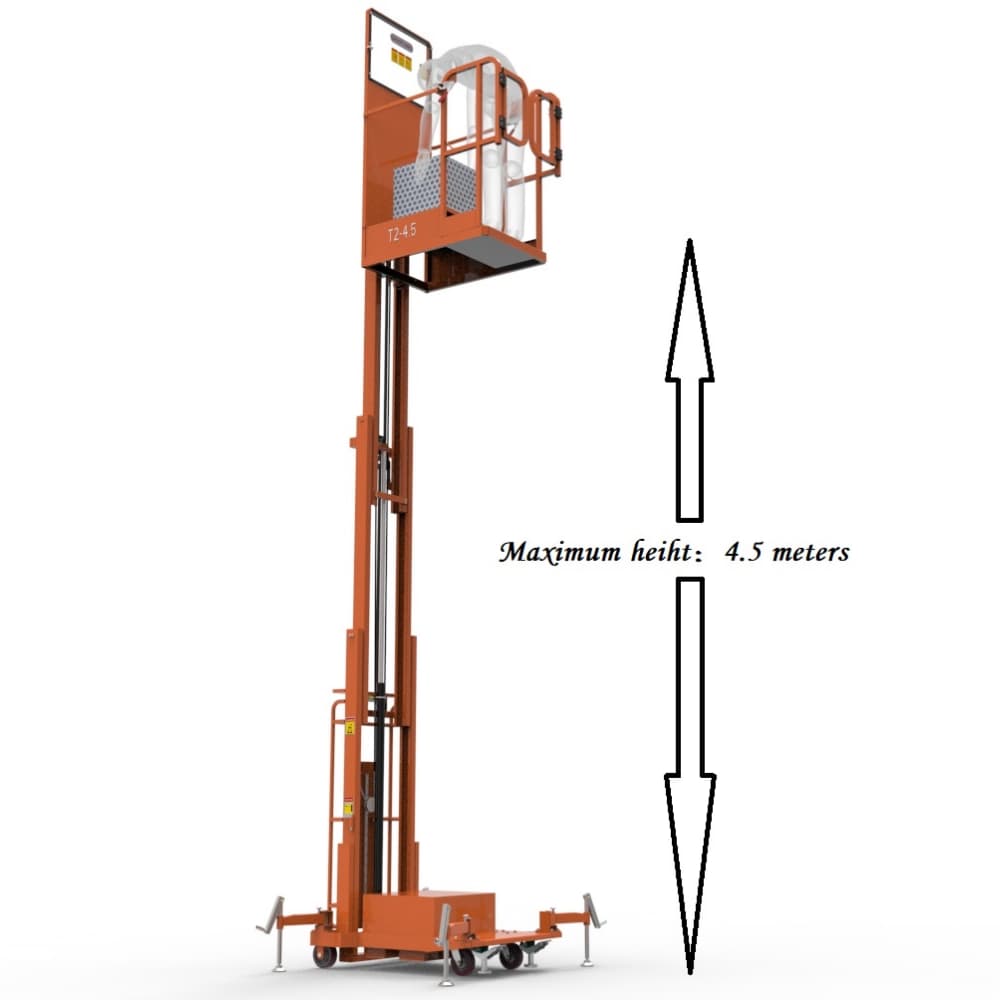

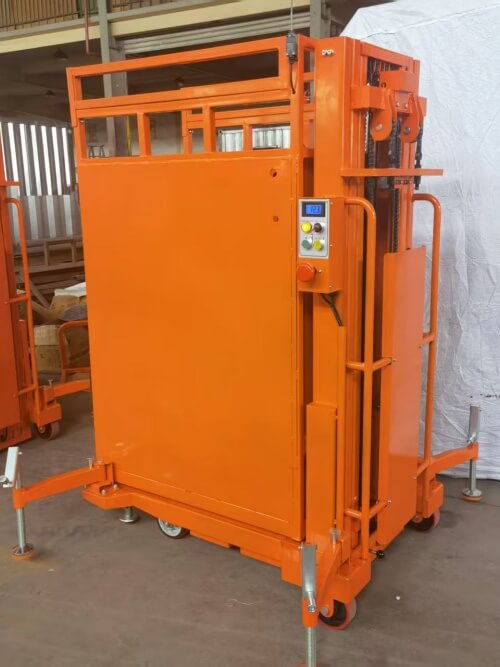

This aerial order picker is perfectly designed for warehouses and supermarkets. It can lift up to a maximum height of 4.5 meters, enabling efficient access to high-positioned goods. With a load capacity of 441 pounds (200 kilograms), it effectively handles order-picking tasks. Affordable and highly cost-effective, it serves as a remarkable warehousing tool.
This is the upper control panel, which incorporates a voltage display, lift-up and lift-down buttons, and features an emergency stop function.
The foot-operated braking system enhances safety during the equipment’s operation.

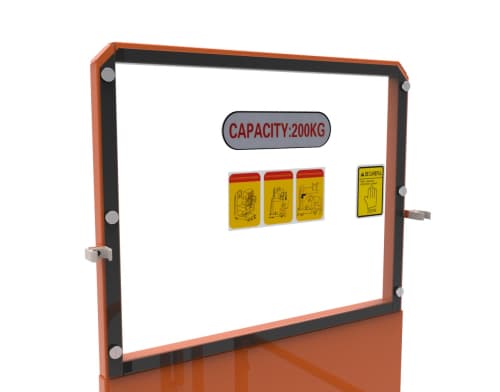

Equipped with a PC transparent back panel, it significantly enhances visibility.

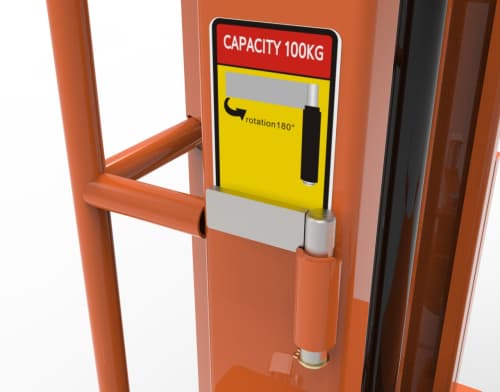

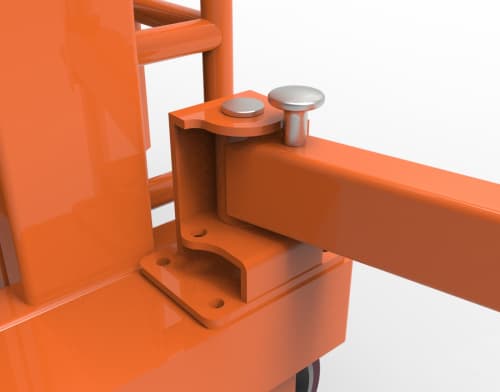

The maintenance bracket ensures heightened safety during battery repair or replacement.

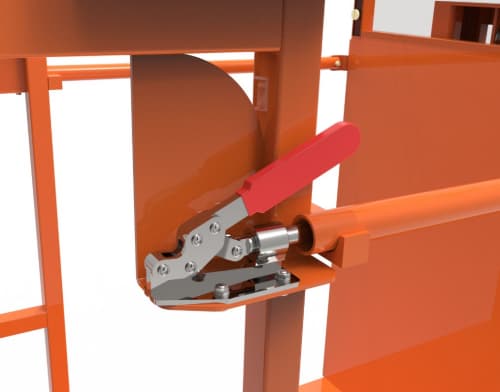

This guardrail locking mechanism is specifically engineered to prevent accidental cargo drops.

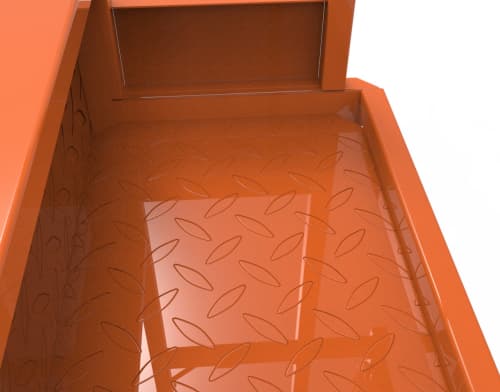

The standing platform is made of anti – slip checkered steel plate.

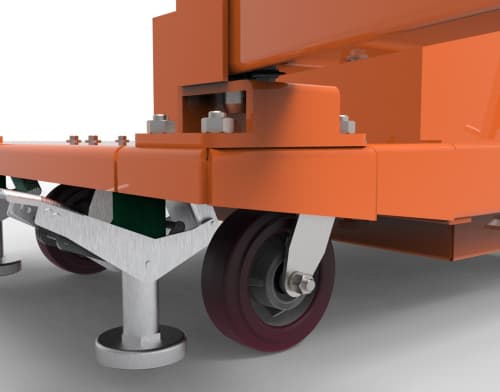

Always deploy outriggers before lifting.

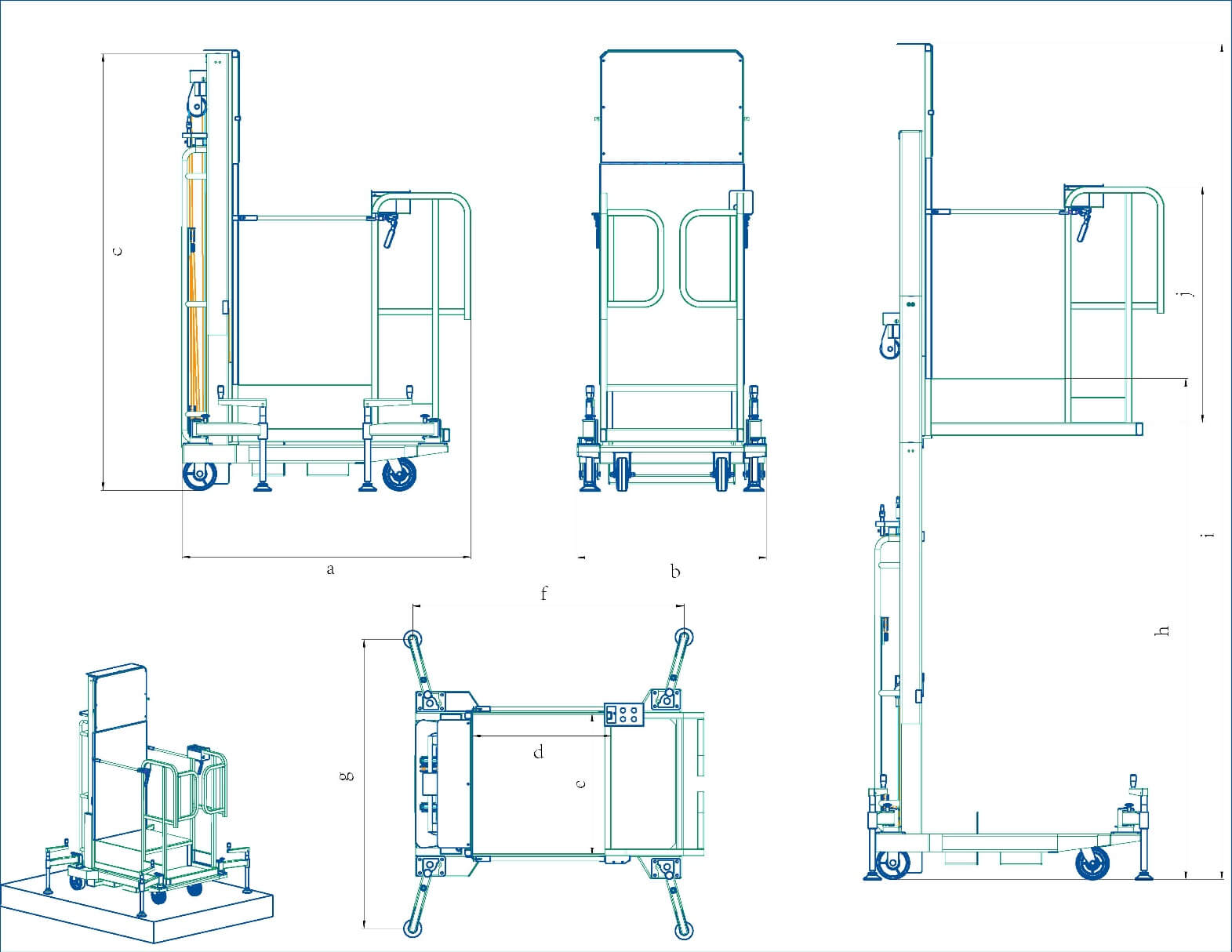

| Specification | T2-2.7 | T2-3.3 | T2-4 | T2-4.5 |
| Max.platform Height (h) | 2700 | 3300 | 4000 | 4500 |
| Max.machine Height (i) | 4000 | 4900 | 5400 | 6200 |
| Overall Length (a) | 1300 | |||
| Overall Width (b) | 840 | |||
| Overall Height (c) | 1760 | 2040 | 1810 | 1980 |
| Platform length (d) | 630 | |||
| Platform width (e) | 645 | |||
| Height of guardrail (j) | 1070 | |||
| Support foot expansion size (f X g) |
No support leg |
1230 X 1310 | ||
| Max load Kg | 200 | |||
| Lifting Motor V/Kw | 12/1.6 | |||
| Time of rise S | 19 | 22 | 21 | 24 |
| Time of descent S | 20 | 22 | 18 | 21 |
| Charger V/A | 12/15 | |||
| Battery voltage/capacity V/Ah | 12V/120Ah | |||
| Tire size mm | front wheel：Φ125*50 | front wheel：Φ150*50 | ||
| rear wheel：Φ150*50 | rear wheel：Φ150*50 | |||
| Overall Net Weight Kg | 320 | 350 | 410 | 450 |
 |
 |
 |
This equipment supports non-standard customization, offering:
Custom color options for the machine body

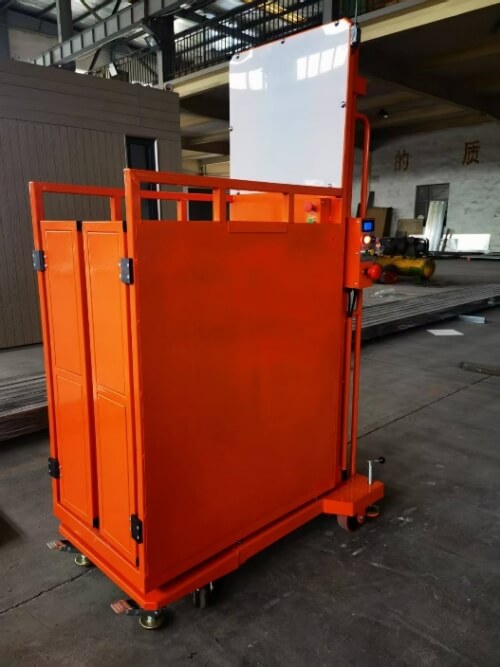

External enclosure modifications for platform sections
Flexible add-ons for various operational needs (e.g., power supply units, air hose connectors)
