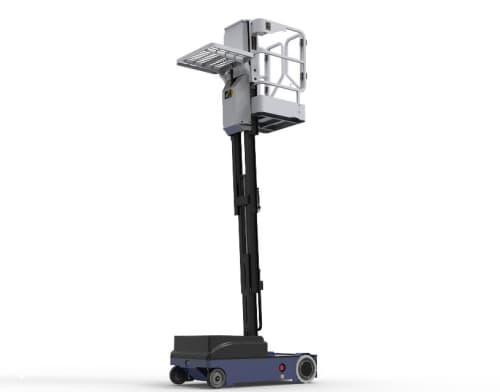

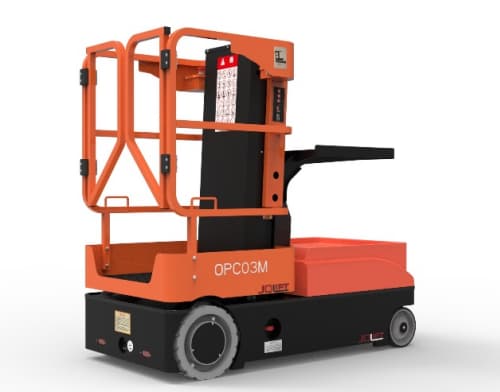

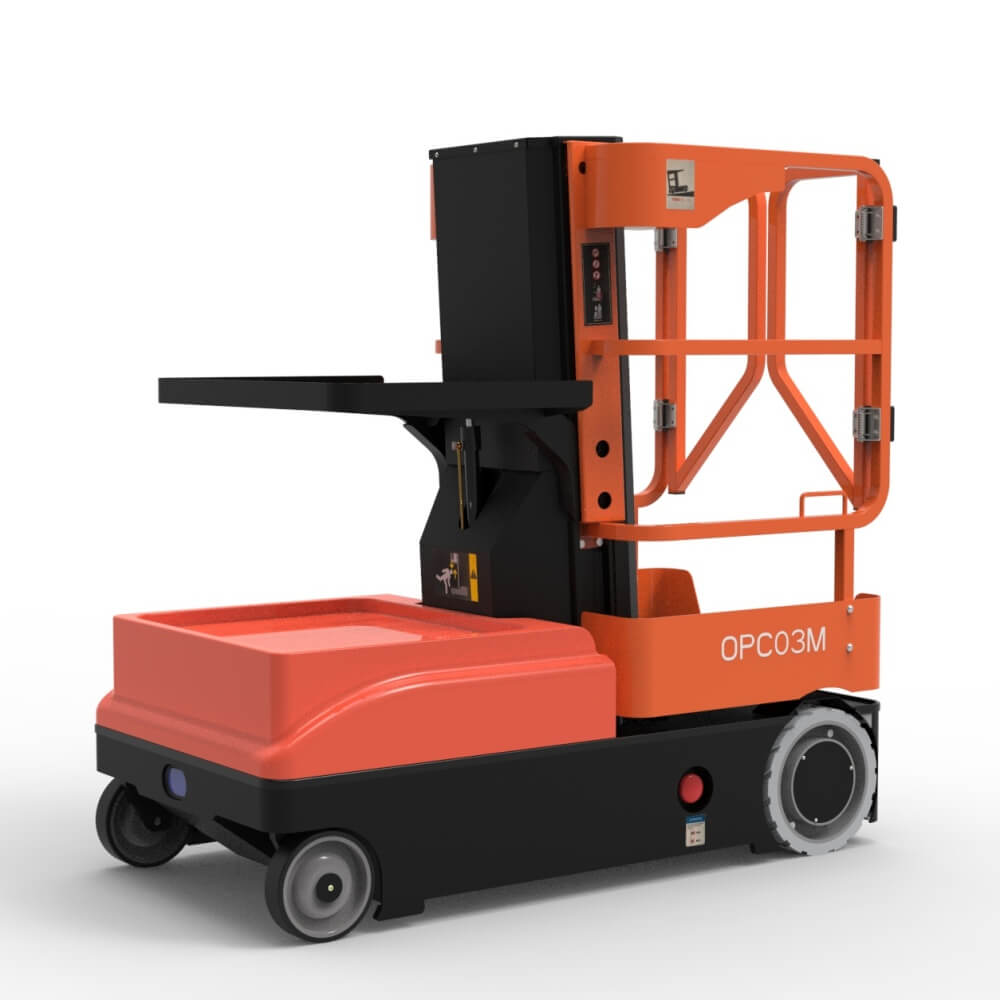

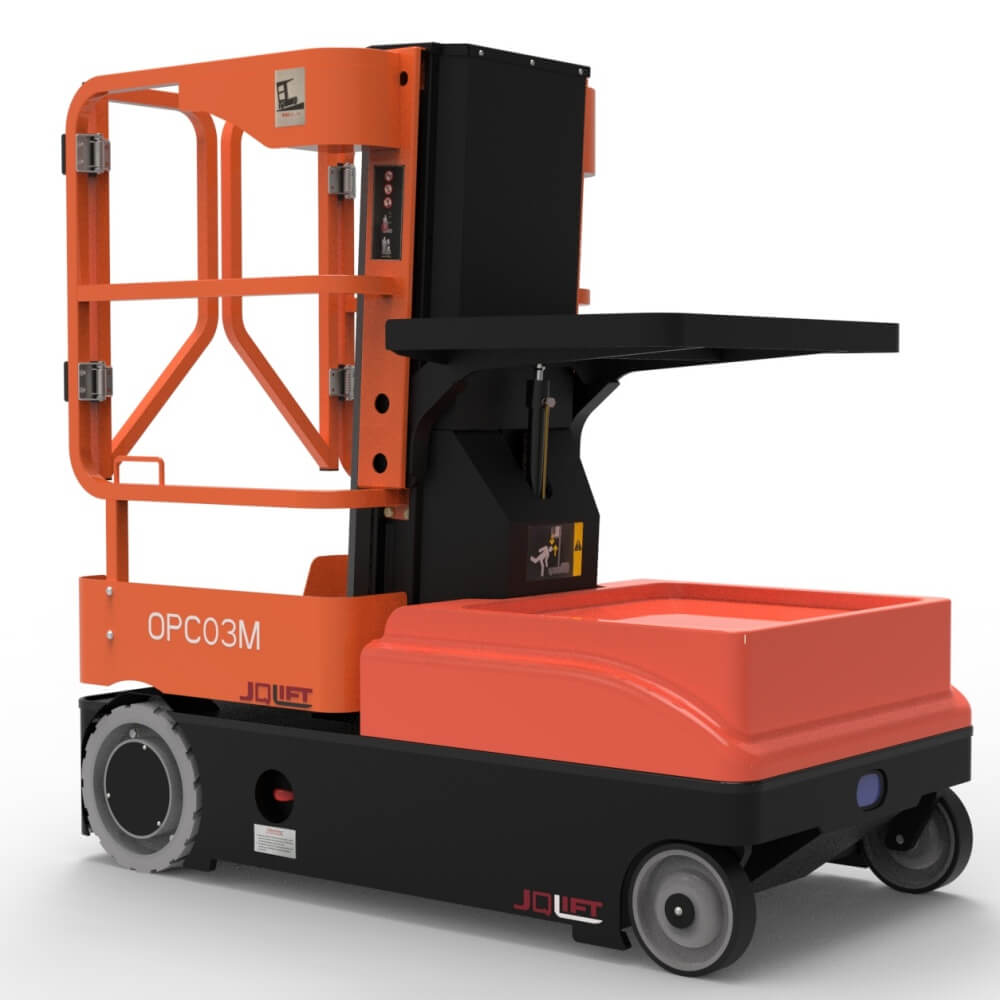

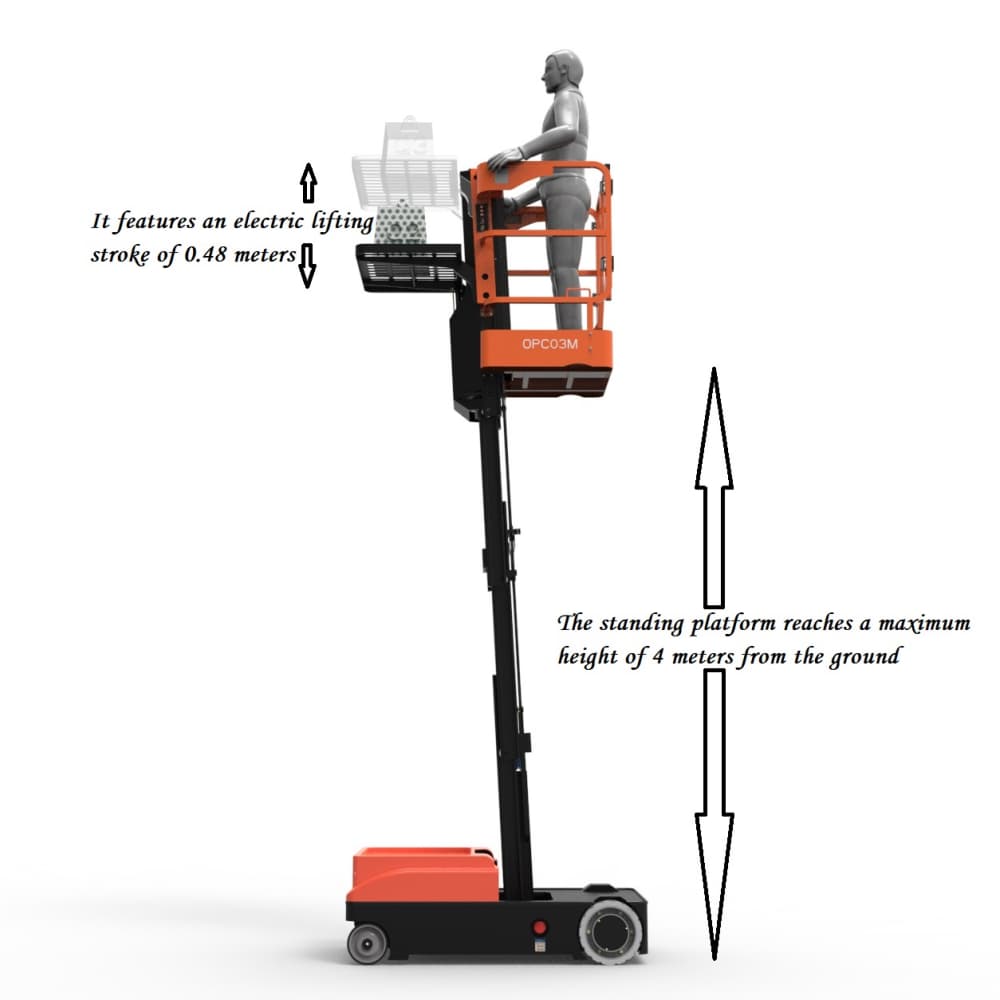

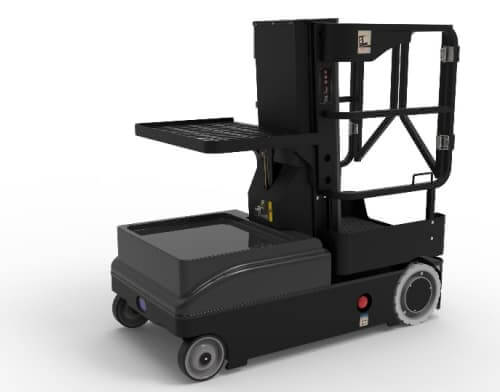

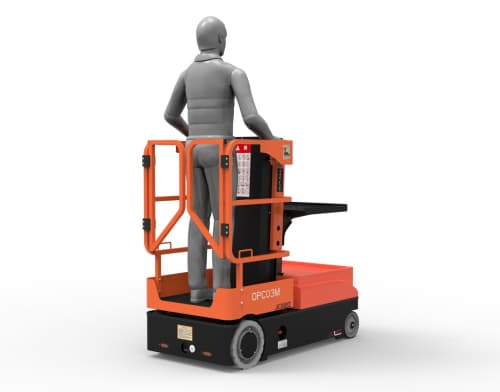

This vehicle is driven by double drive wheels, featuring a compact design yet offering remarkable lifting height. It enables 360° in-situ steering. The mast, crafted from H-beam steel, ensures stable and reliable lifting operations. Moreover, it minimizes platform sway. This product is widely applicable to various rack warehouse settings.

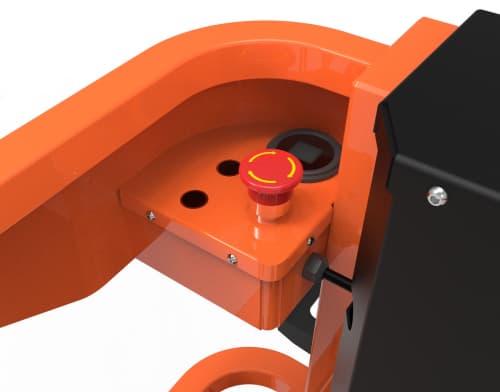

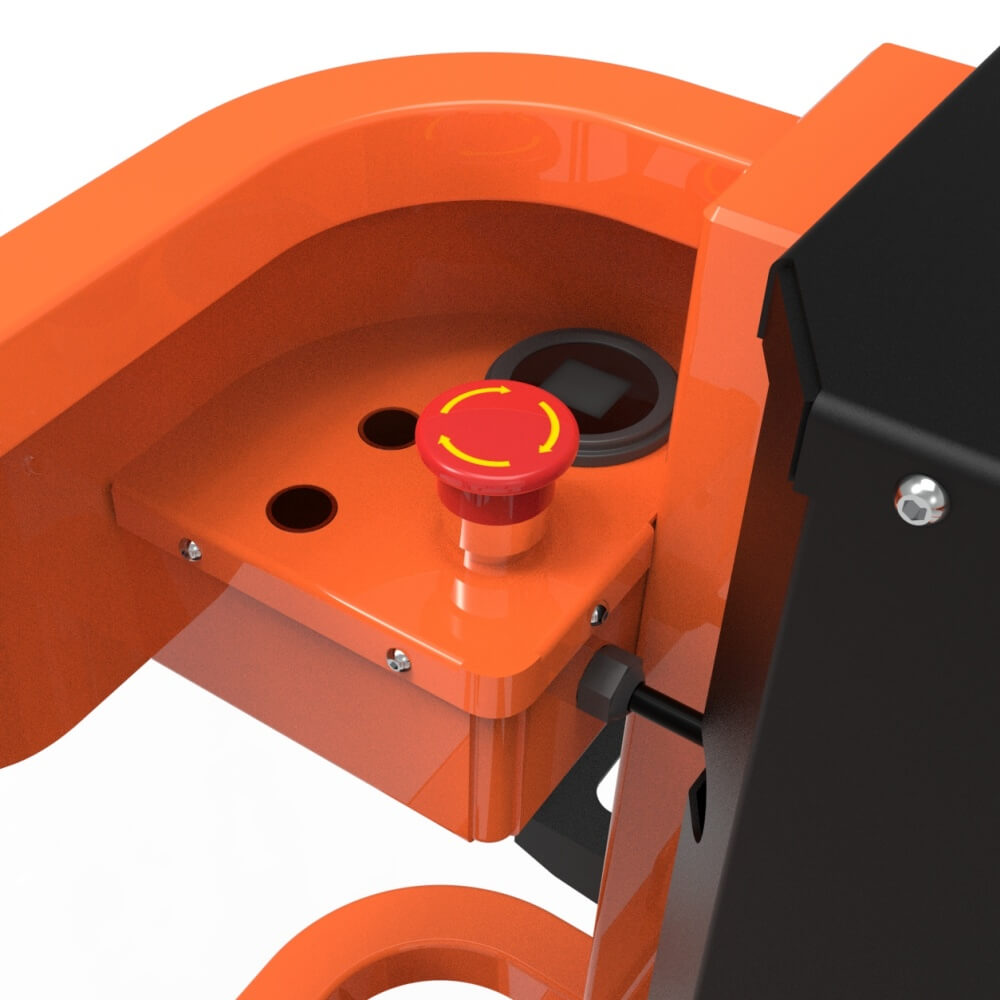

The functional area on the left-hand operation panel features battery level indication, along with lift-up/down buttons for the cargo platform and an emergency stop button for the equipment.

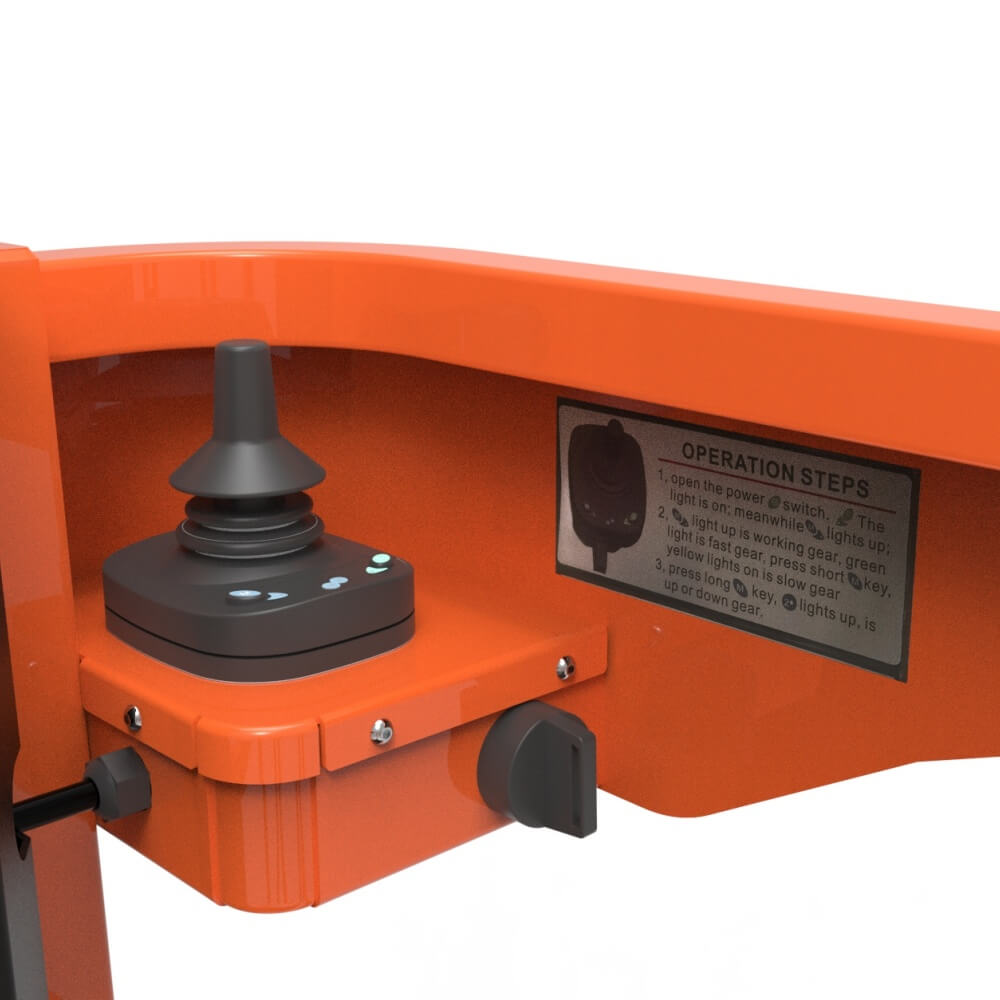

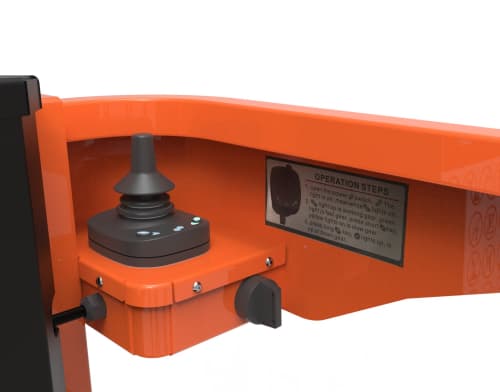

The functional zone on the right-hand operation panel controls the equipment’s movement, as well as the lifting and lowering of the man-carrying platform, and integrates a key switch for the entire machine. Additionally, this equipment is equipped with control handles sourced from Curtis, a renowned U.S. company.

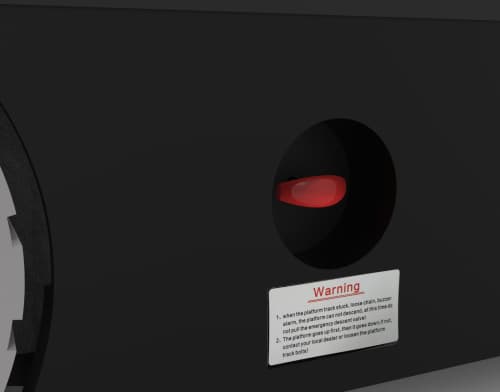

Emergency descent is enabled via a mechanical pull handle.

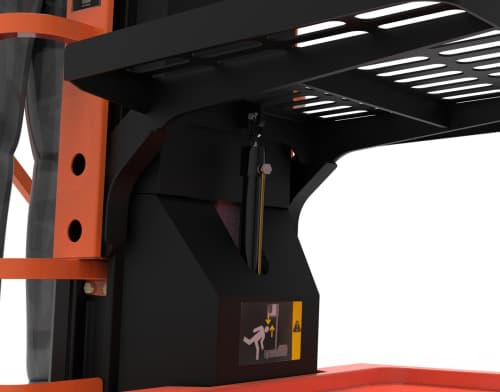

The electric cylinder controls the lifting and lowering of the cargo platform.

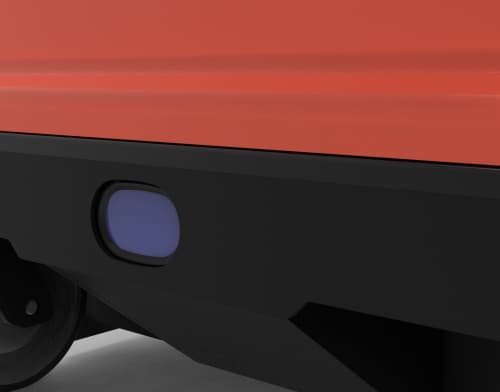

The front section of the equipment chassis is equipped with blue guiding lights, ensuring safer operation.
The rear of the chassis is equipped with two hazard lights. When the machine is operating, these lights can alert pedestrians in the vicinity to pay attention to safety.

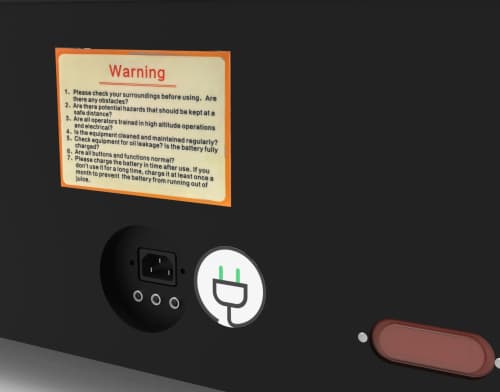

The rear of the machine is equipped with a built-in charging plug accompanied by a charging indicator light.

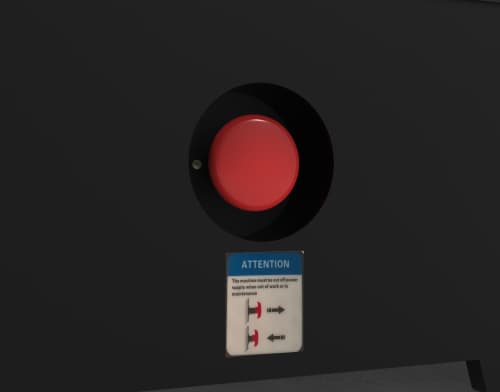

The side of the machine is equipped with a main power disconnect switch.

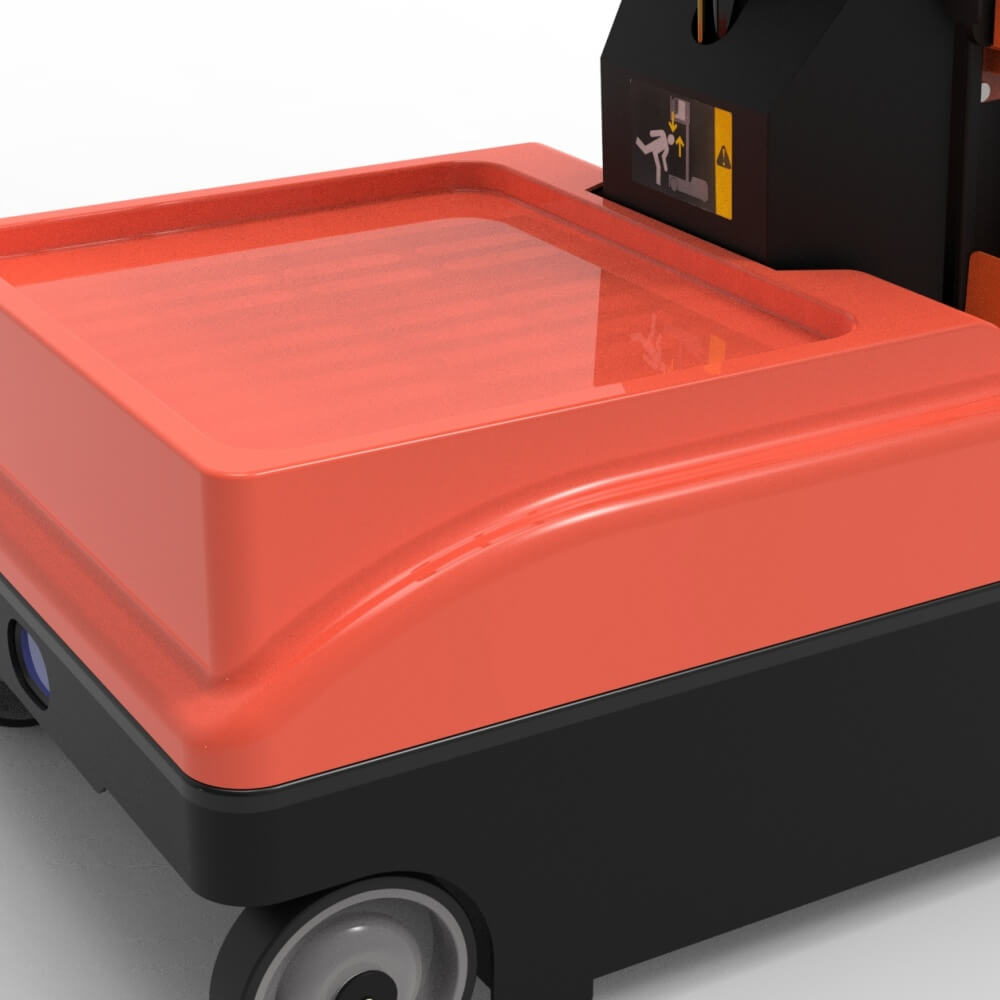

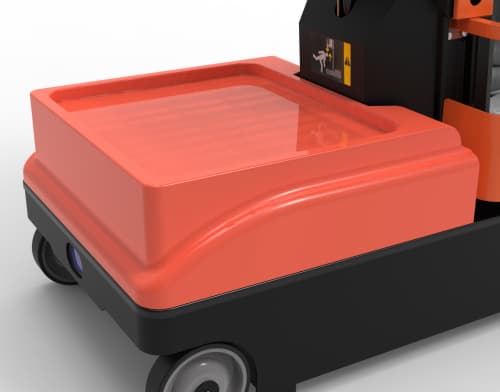

FRP cargo platform, sturdier and more durable.

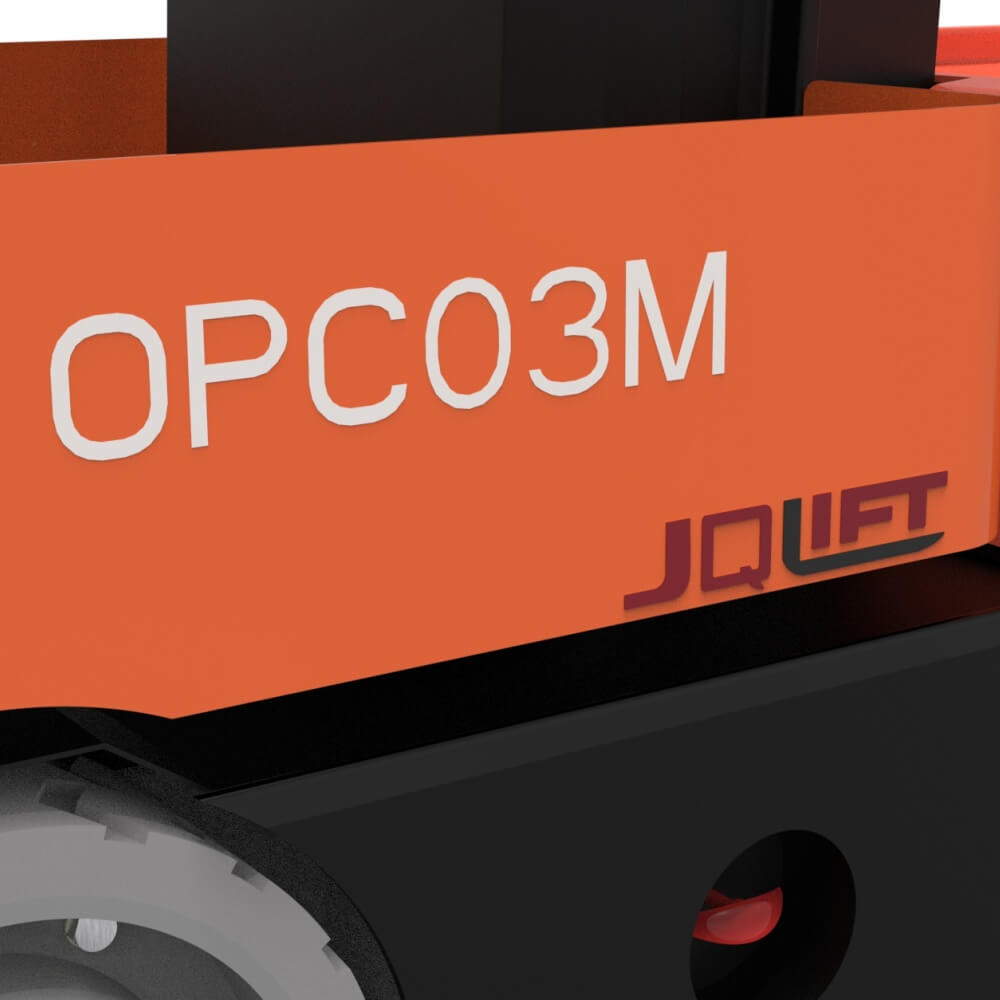

| Specification | OPC03M | ||
| Max.platform Height (h) | 3000mm | Max.machine Height (i) | 4069 mm |
| Overall Length (a) | 1480 mm | Overall Width（b） | 750mm |
| Overall Height (c) | 1465 mm | Height of guardrail（j） | 1040mm |
| Table Height（k） | 395mm | Support foot expansion size（g）（f） | g：25mm
f：50mm |
| Platform length (d)（d1） | d:685mm
d1:550 |
Platform width (e)(e1) | e:745mm
e1:740mm |
| Max load Kg Q1/Q2/Q3 | Q1:136 kg Q2:90Kg Q3:110Kg | ||
| Load platform travel （m） | 480mm | Lifting Motor V/Kw | 24V/0.8Kw |
| Minimum turning radius mm | 1700mm | Drive motor V/kw | 24V/0.5Kw |
| Max Climb Capability ° | 5°-8° | Travel speed Km/h | 0-4 |
| Lifting speed/ Descent speed m/s | 0.22/0.31 | DC model Battery voltage/capacity V/Ah | 2 X 12V/108 Ah |
| Front tire size mm | Φ200mm*50mm | DC model Charger V/A | 24V/15A |
| Tire size mm | Φ305mm*100mm | Overall Net Weight Kg | 790Kg |
| Specification | OPC04M | ||
| Max.platform Height (h) | 4000mm | Max.machine Height (i) | 5260mm |
| Overall Length (a) | 1480 mm | Overall Width （b） | 750mm |
| Overall Height (c) | 1760mm | Height of guardrail （j） | 1235mm |
| Table Height （k） | 500mm | Support foot expansion size（g）（f） | g：25mm
f：50mm |
| Platform length (d)（d1） | d:685mm
d1:550 |
Platform width (e)(e1) | e:745mm
e1:740mm |
| Max load Kg Q1/Q2/Q3 | Q1:136 kg Q2:90Kg Q3:110Kg | ||
| Load platform travel (m) | 480mm | Lifting Motor V/Kw | 24V/0.8Kw |
| Minimum turning radius mm | 1700mm | Drive motor V/kw | 24V/0.5Kw |
| Max Climb Capability ° | 5°-8° | Travel speed Km/h | 0-4 |
| Lifting speed/ Descent speed m/s | 0.22/0.31 | DC model Battery voltage/capacity V/Ah | 2 X 12V/108 Ah |
| Front tire size mm | Φ200mm*50mm | DC model Charger V/A | 24V/15A |
| Tire size mm | Φ305mm*100mm | Overall Net Weight Kg | 910Kg |
 |
 |
 |
 |

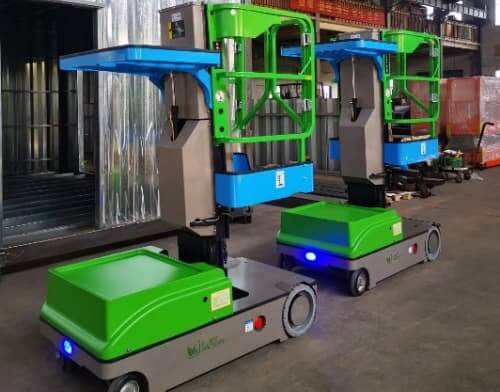

Customers can freely select color combinations according to their preferences.
