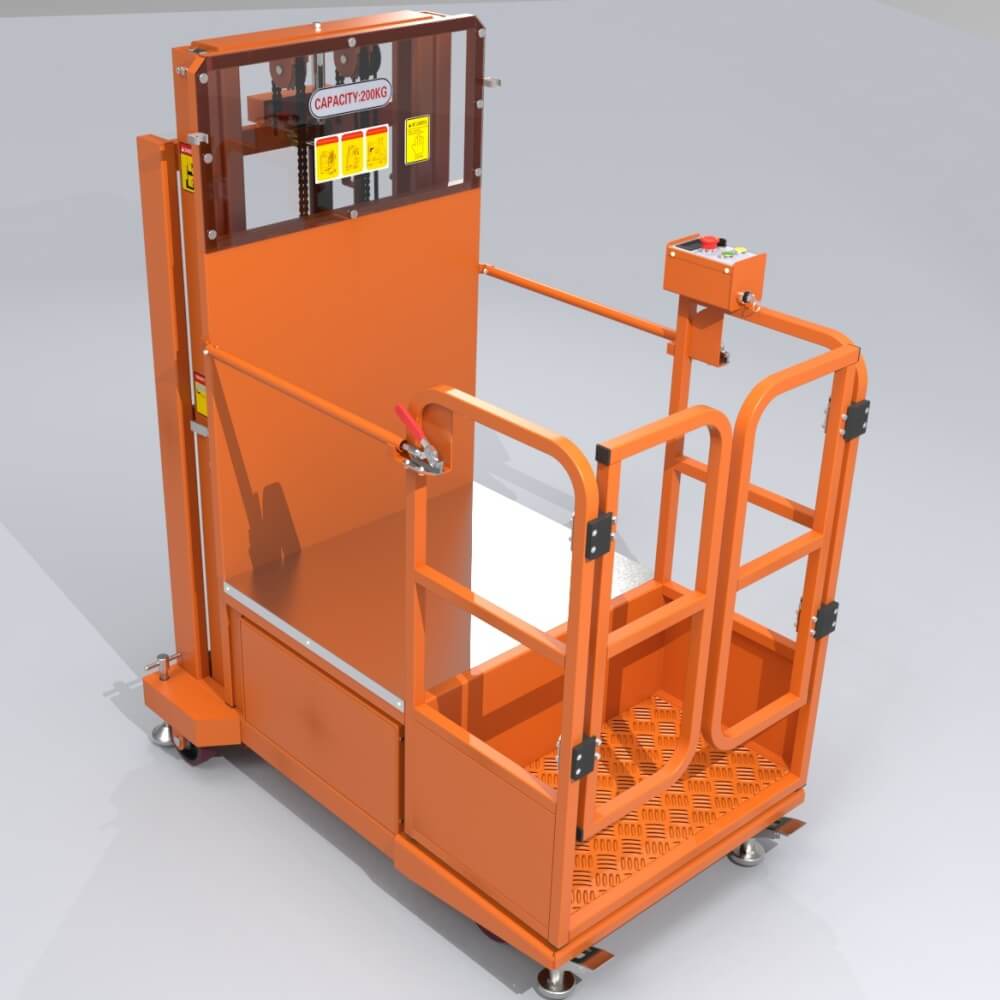

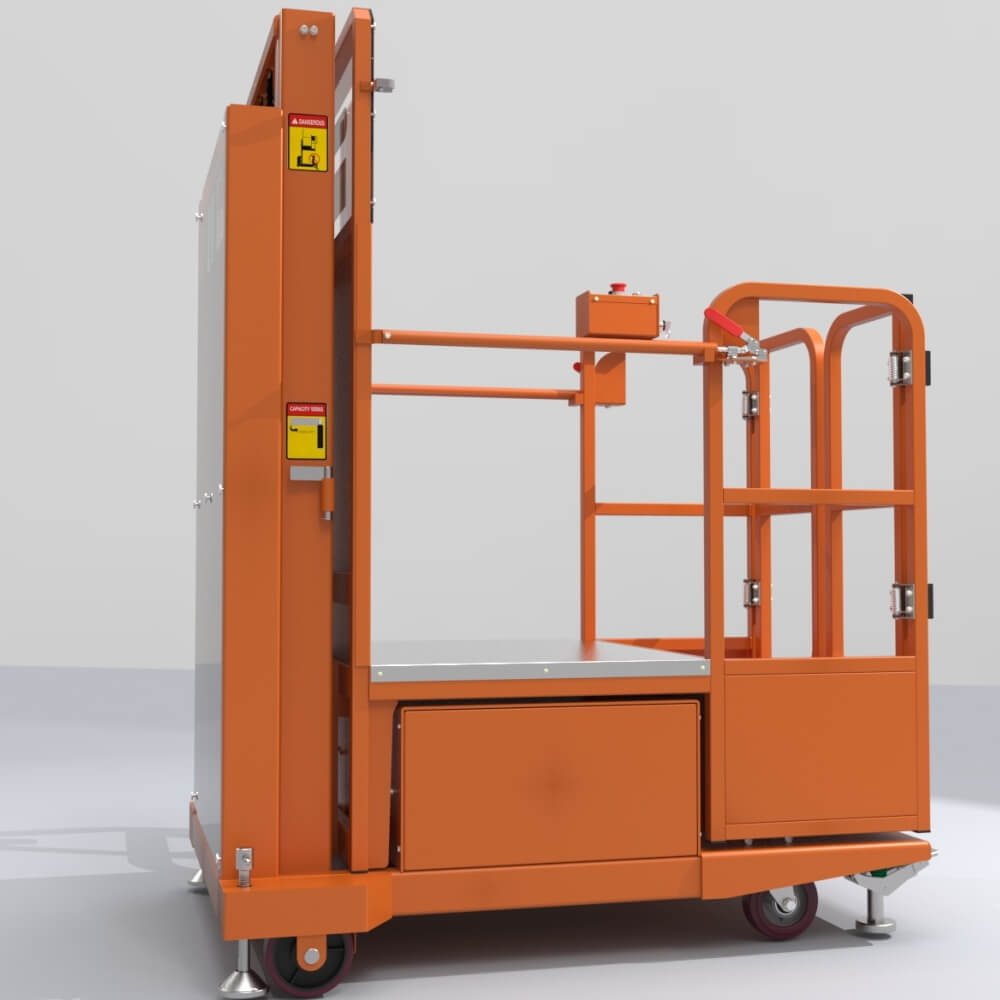

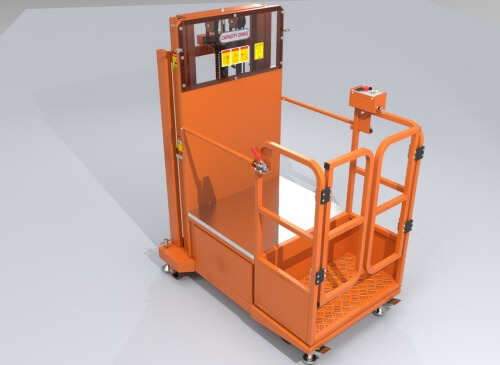

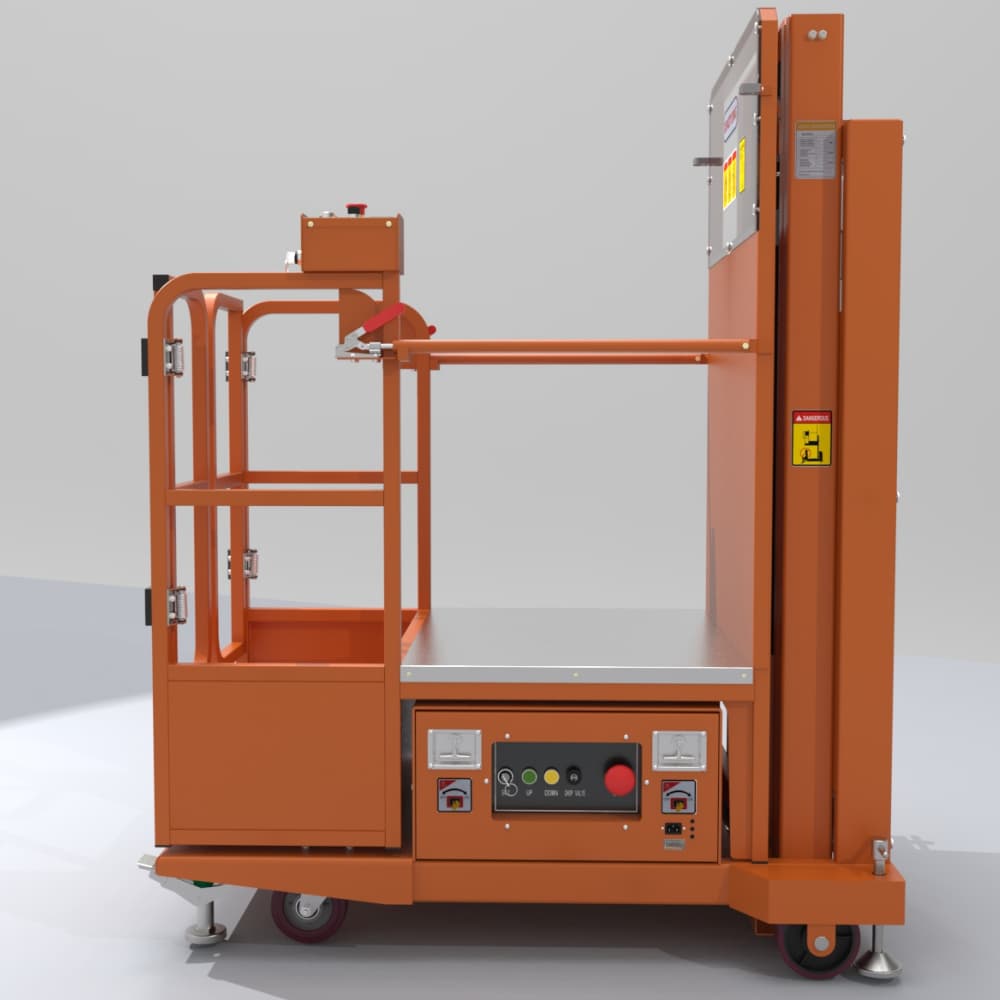

This semi-electric order picker is meticulously designed for individuals with larger statures, boasting a more spacious cargo platform and standing area. Compared with fully electric counterparts, this semi-automatic model demonstrates enhanced cost-effectiveness.

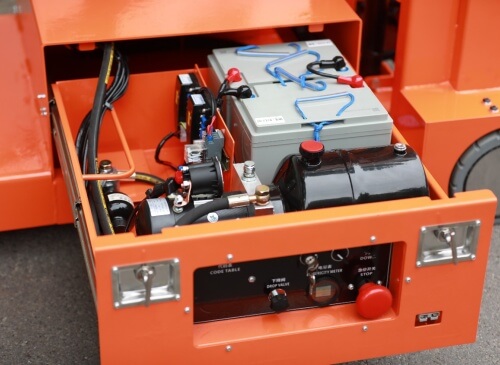

The equipment features a drawer-style pull-out design, which significantly streamlines daily maintenance and upkeep—making routine care more efficient and user-friendly.
The design enables effortless battery replacement, allowing the equipment to operate continuously without downtime.

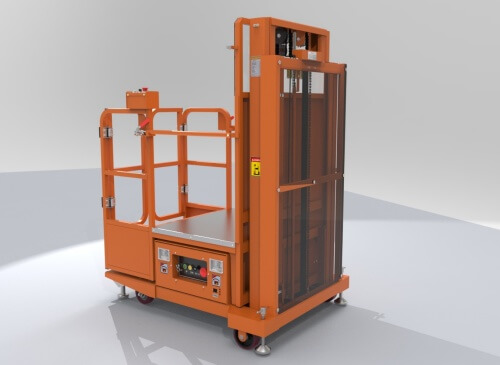

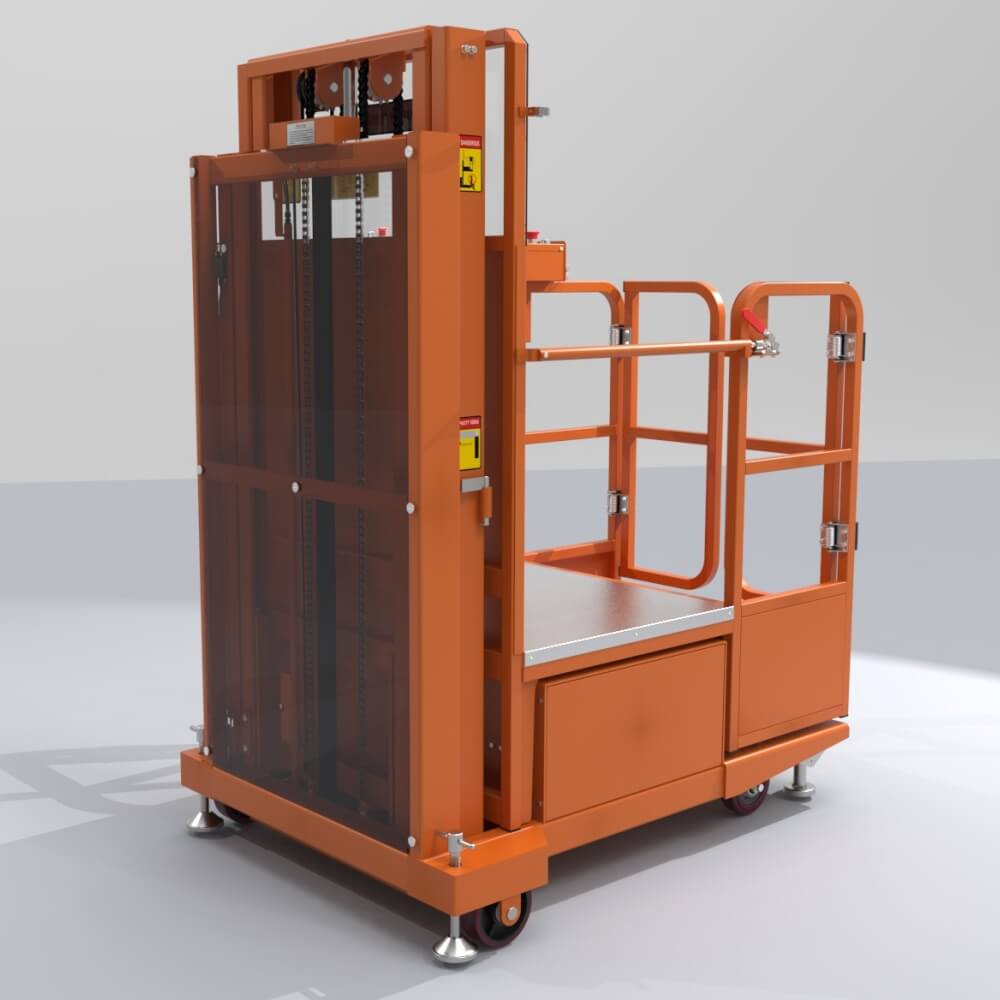

The rear part of the equipment is shielded by high-strength PC boards.

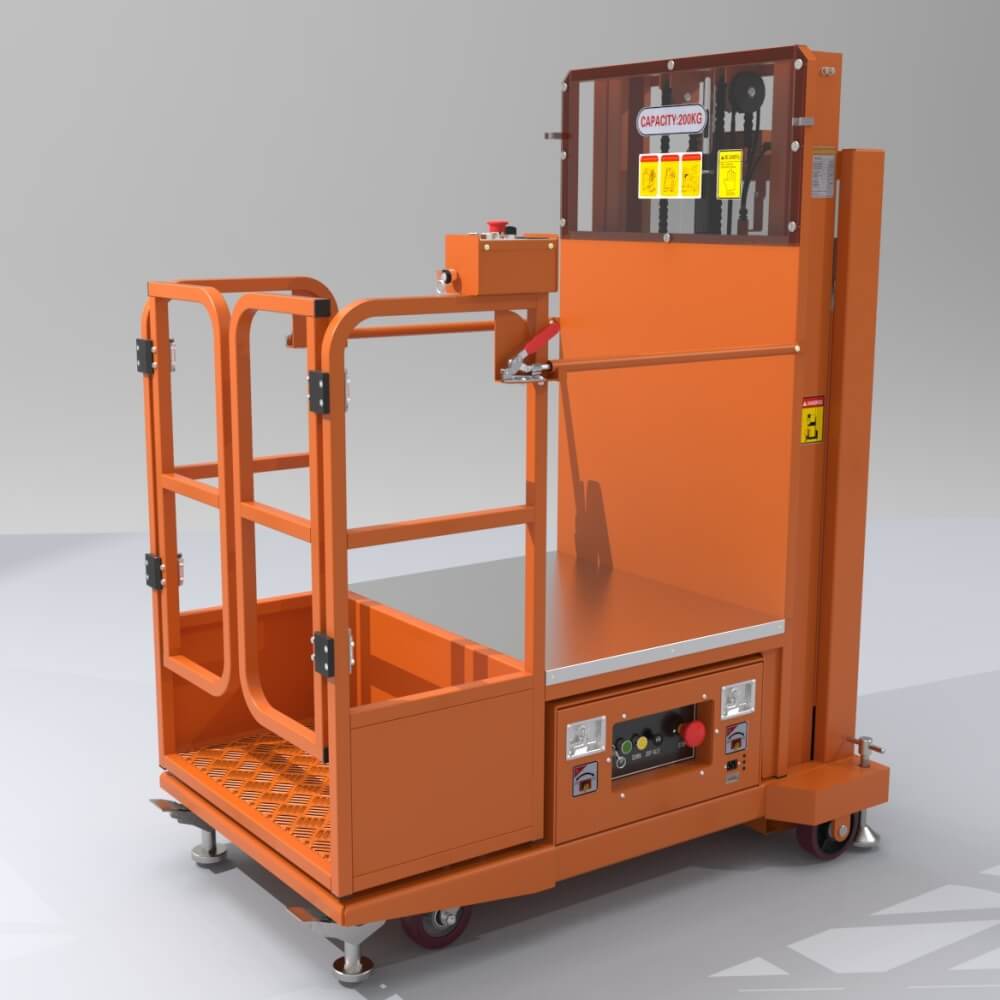

The cargo platform is expertly constructed with stainless steel plates, offering excellent wear resistance and rust-proof performance.
| Specification | DT2-2.7 | DT2-3.3 | DT2-4 | DT2-4.5 |
| Max.platform Height mm (h) | 2700 | 3300 | 4000 | 4500 |
| Max.machine Height mm (i) | 4000 | 4900 | 5400 | 6200 |
| Overall Length mm (a) | 1380 | |||
| Overall Width mm （b） | 1030 | |||
| Overall Height mm (c) | 1765 | 2045 | 1815 | 1985 |
| Platform length mm (d) | 652 | Pedal length （d2） | 400 | |
| Platform width (e) | 807 mm | Tread width(e2) | 746 mm | |
| Height of guardrail (j) | 1040 mm | Pedal height（j2） | 245 mm | |
| Support foot expansion size(f X g) | No support leg | 1410 mm X 1470 mm | ||
| Max load Kg | 200Kg | |||
| Lifting Motor V/Kw | 12/1.6 | |||
| Time of rise S | 19 | 22 | 21 | 24 |
| Time of descent S | 20 | 22 | 18 | 21 |
| Charger V/A | 12/15 | |||
| Battery voltage/capacity V/Ah | 12V/120Ah | |||
| Tire size mm | front wheel：Φ150*50 | front wheel：Φ150*50 | ||
| Overall Net Weight Kg | 480Kg | 510 Kg | 570 Kg | 610 Kg |
