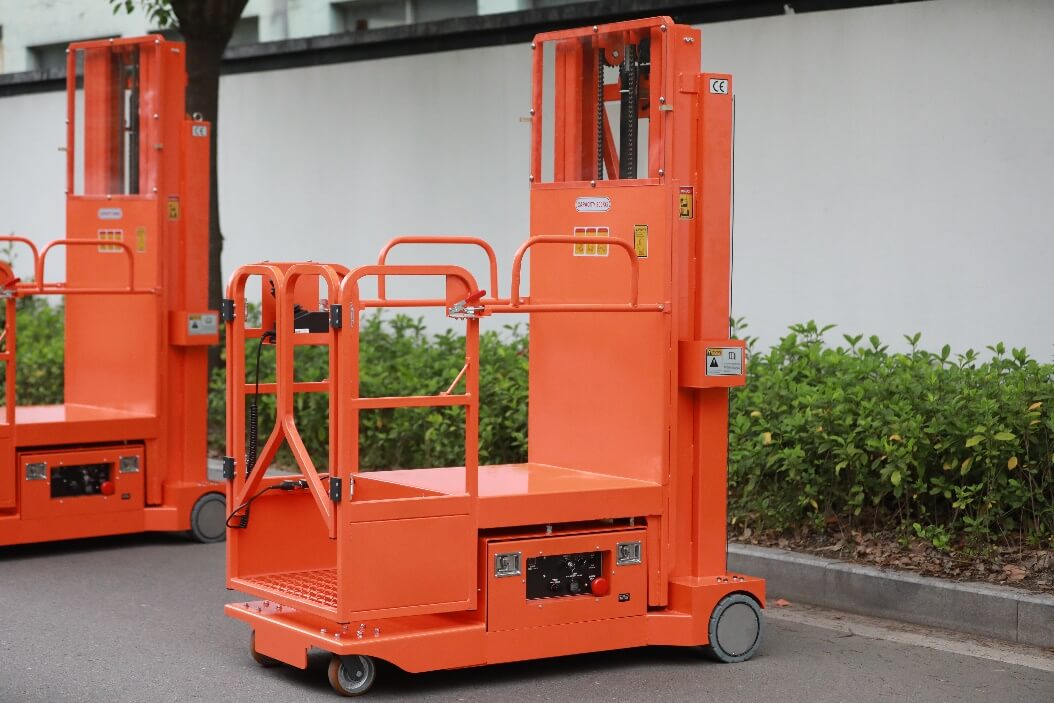

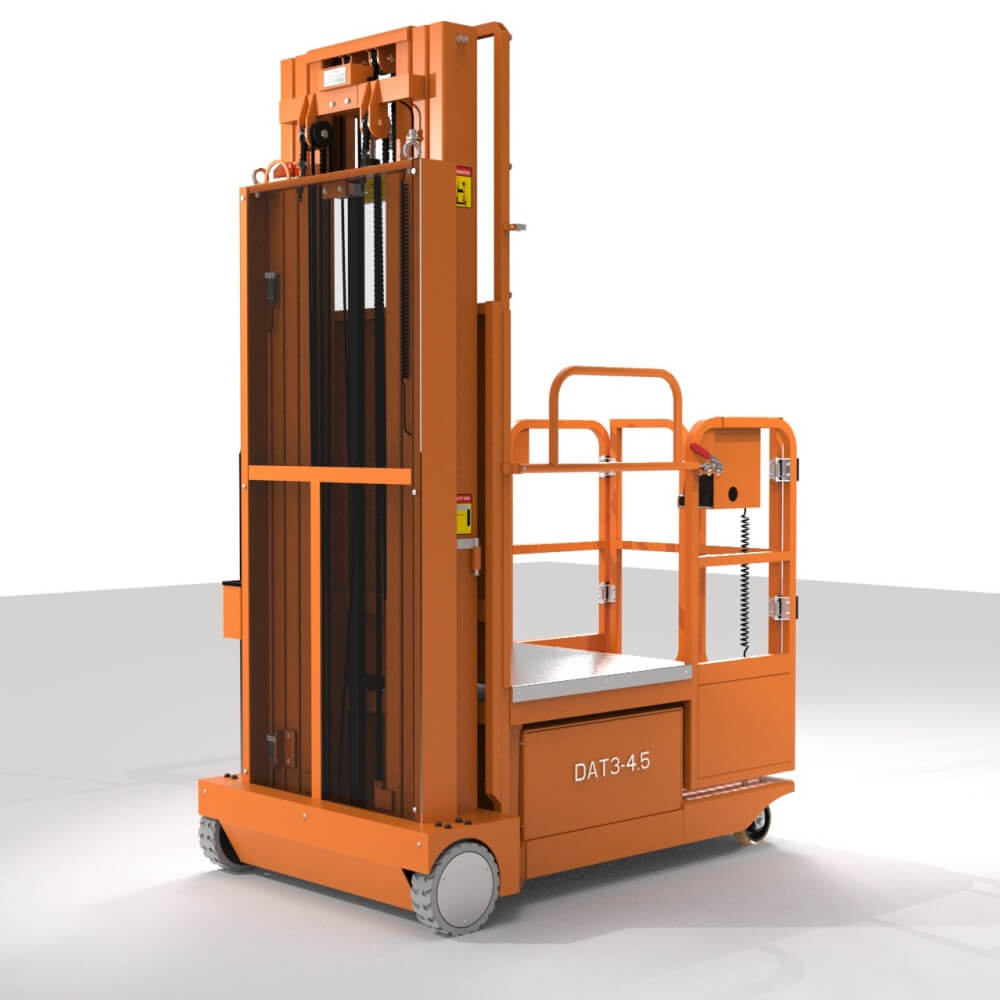

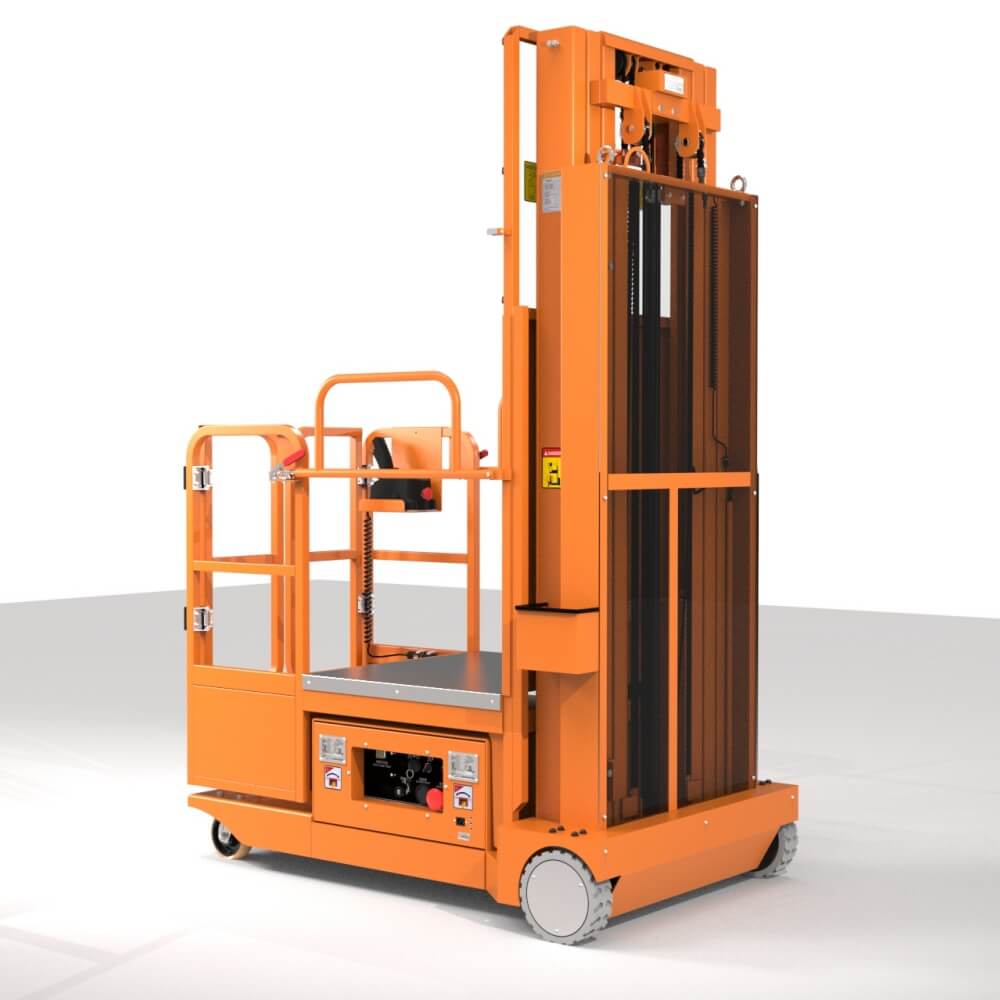

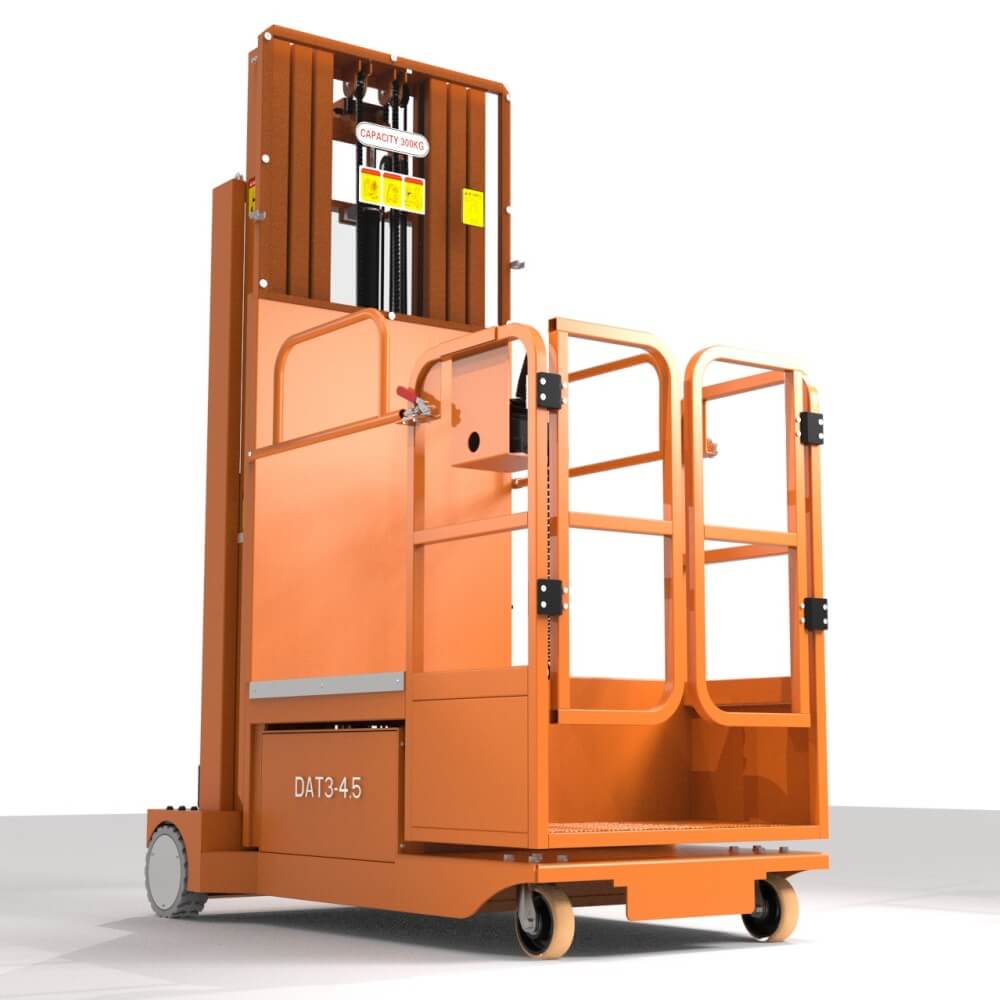

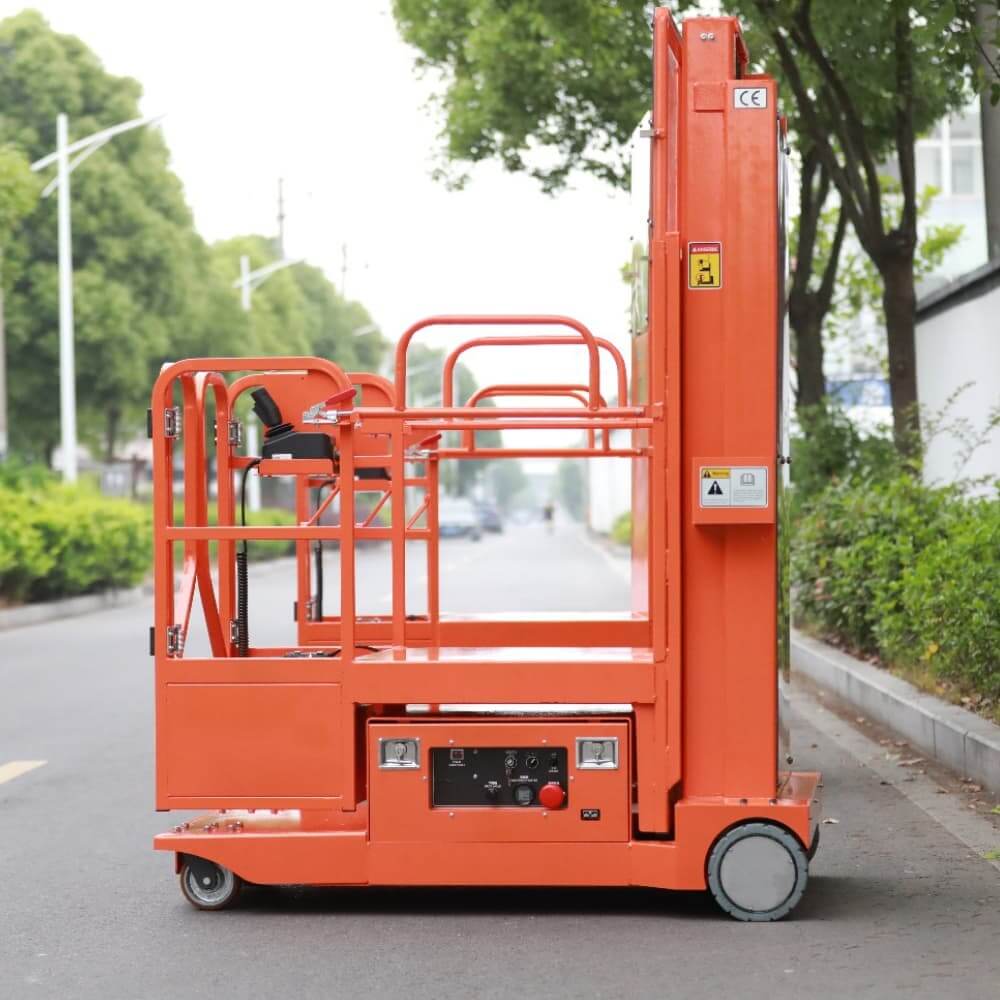

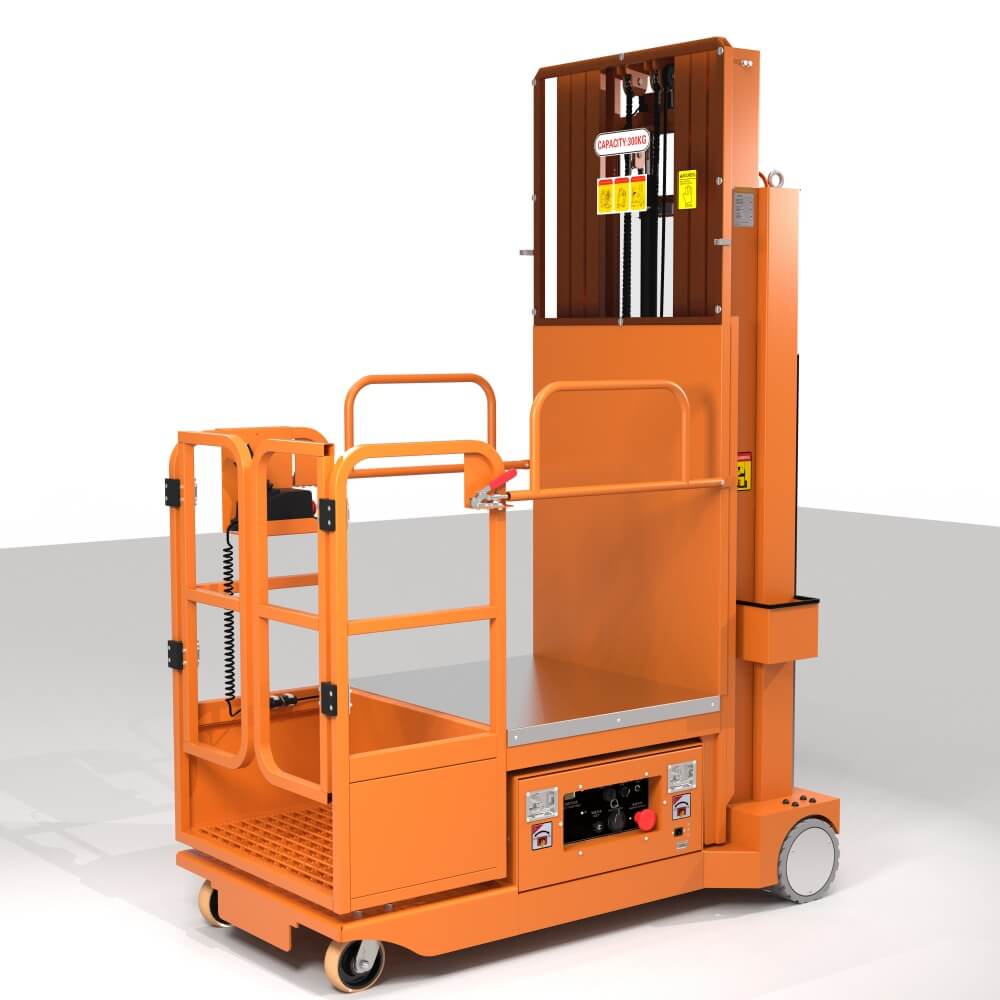

This fully electric order picker is specially engineered for individuals with larger body types, particularly tailored to meet the needs of overseas users. It boasts a wider and more expansive loading platform, alongside an enlarged standing area. The lifting mechanism ensures smoother vertical movement, making it a perfect fit for robust users.

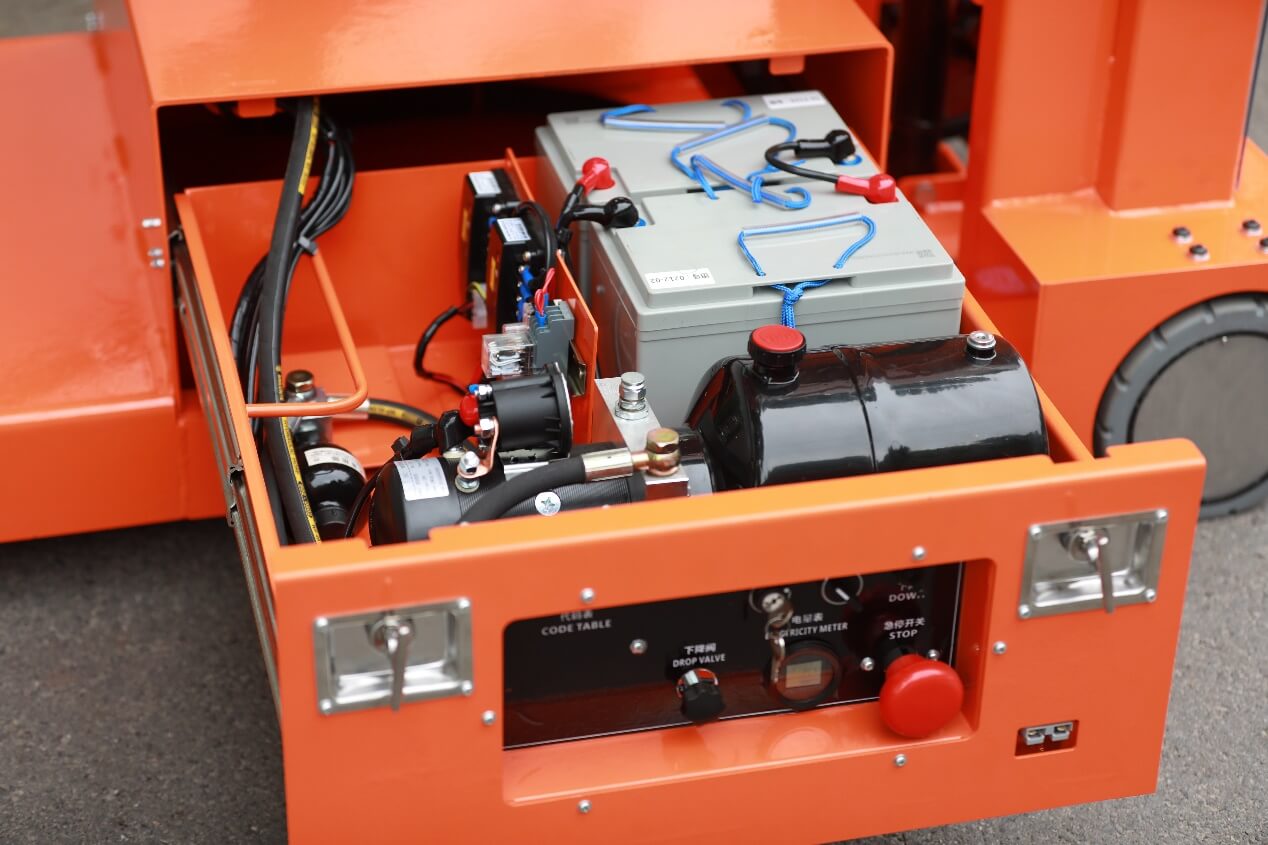

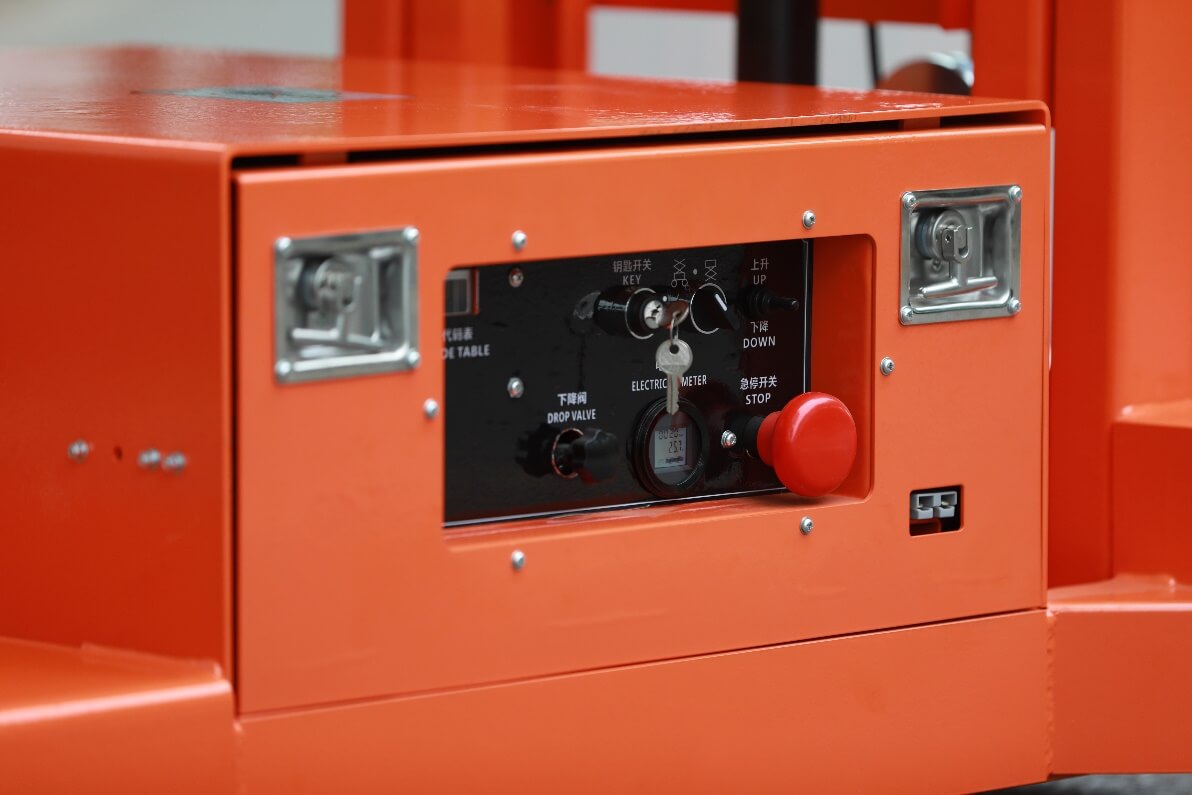

The equipment features a drawer-style pull-out design, which significantly streamlines daily maintenance and upkeep—making routine care more efficient and user-friendly.
The design enables effortless battery replacement, allowing the equipment to operate continuously without downtime.

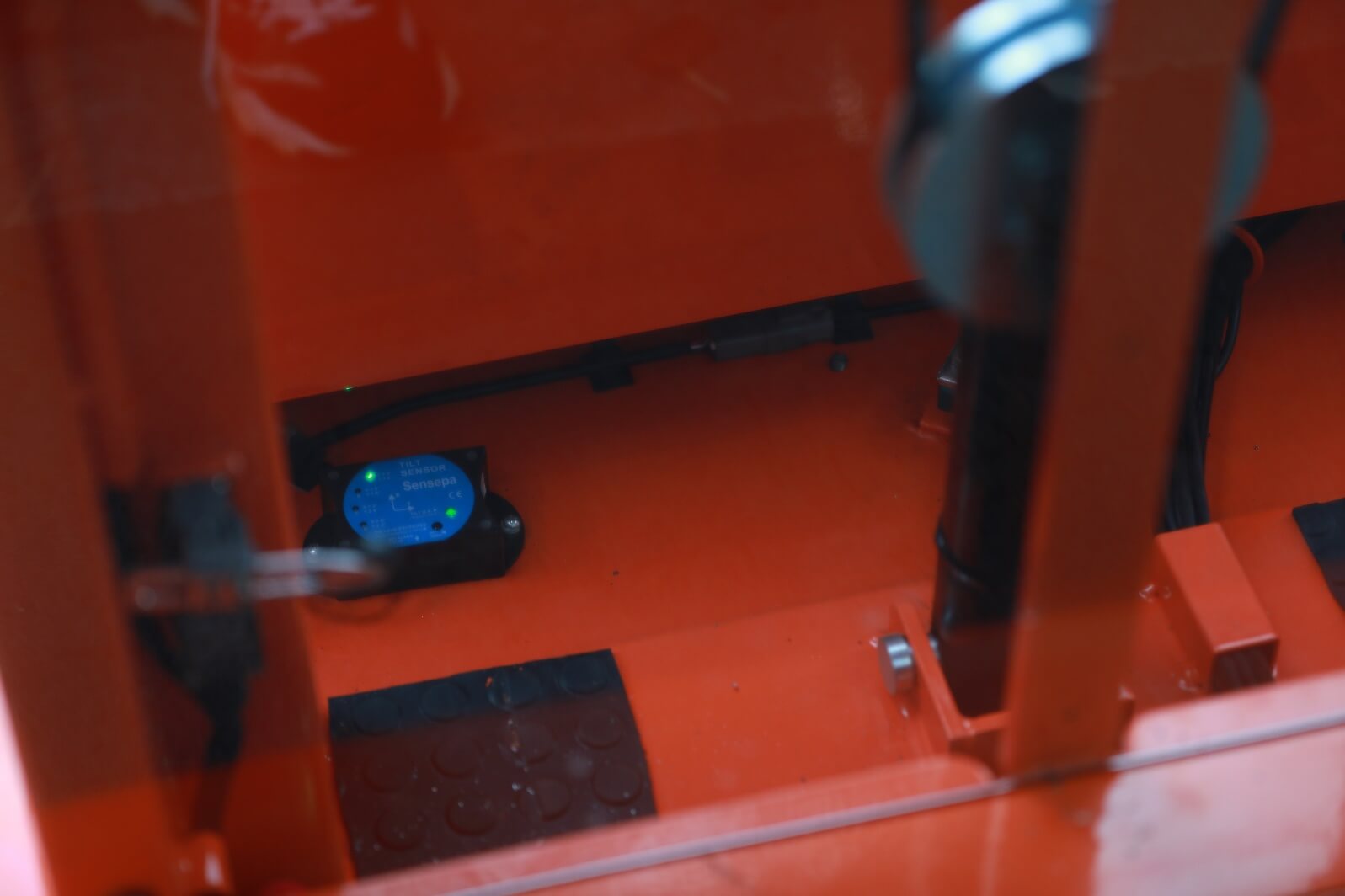

The electronic level comes with tilt protection. When the equipment detects that the machine’s tilt angle exceeds the safe threshold, it will automatically inhibit upward movement.
The equipment is equipped with grated anti-slip hollowed-out pedals.

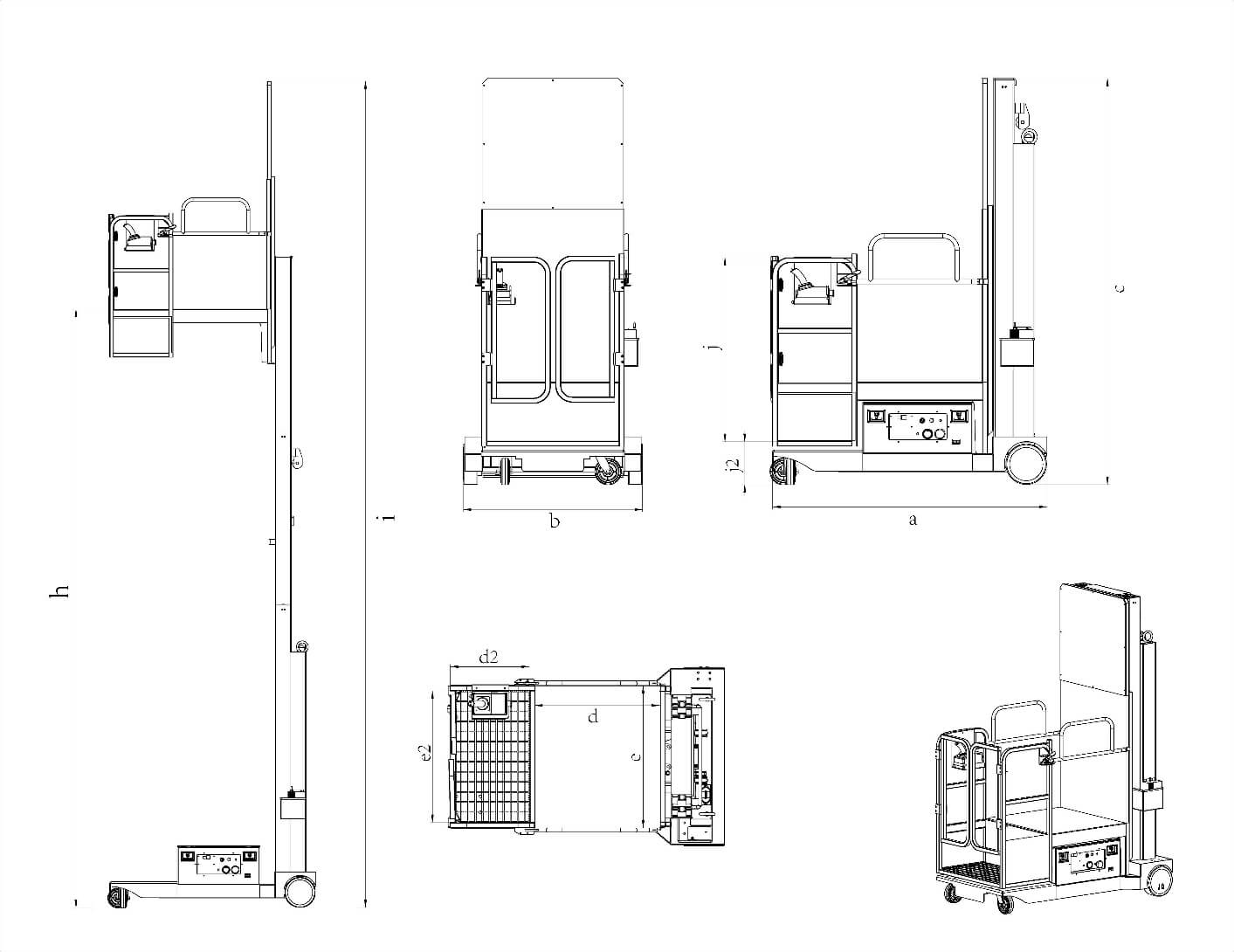

| Specification | DAT3-2.7 | DAT3-3 | DAT3-3.5 | DAT3-4 | DAT3-4.5 |
| Max.platform Height mm (h) | 2700 | 3000 | 3500 | 4000 | 4500 |
| Max.machine Height mm (i) | 4425 | 4575 | 4825 | 6005 | 6255 |
| Overall Length mm (a) | 1554 | ||||
| Overall Width mm（b） | 1015 | ||||
| Overall Height mm (c) | 1960 | 2110 | 2360 | 2060 | 2310 |
| Platform length mm (d) | 707 | Pedal length（d2） | 448 | ||
| Platform width mm (e) | 807 | Tread width (e2) | 746 | ||
| Height of guardrail mm (j) | 1040 | Pedal height （j2） | 245 | ||
| Travel speed Km/h | 0.8km/h-4km/h | ||||
| Max load Kg | 300 | ||||
| Lifting Motor V/Kw | 24V/2.2Kw | ||||
| Drive motor V/KW | 24V/0.5Kw | ||||
| Minimum turning radius mm | 1560 mm | ||||
| Max Climb Capability ° | 5°-8° | ||||
| Charger V/A | 24V/15A | ||||
| Battery voltage/capacity V/Ah | 24V/105Ah | ||||
|
Tire size mm |
front wheel：Φ150mm*50mm | ||||
| rear wheel：Φ230mm*80mm | |||||
| Overall Net Weight Kg | 700 | 724 | 754 | 860 | 890 |
