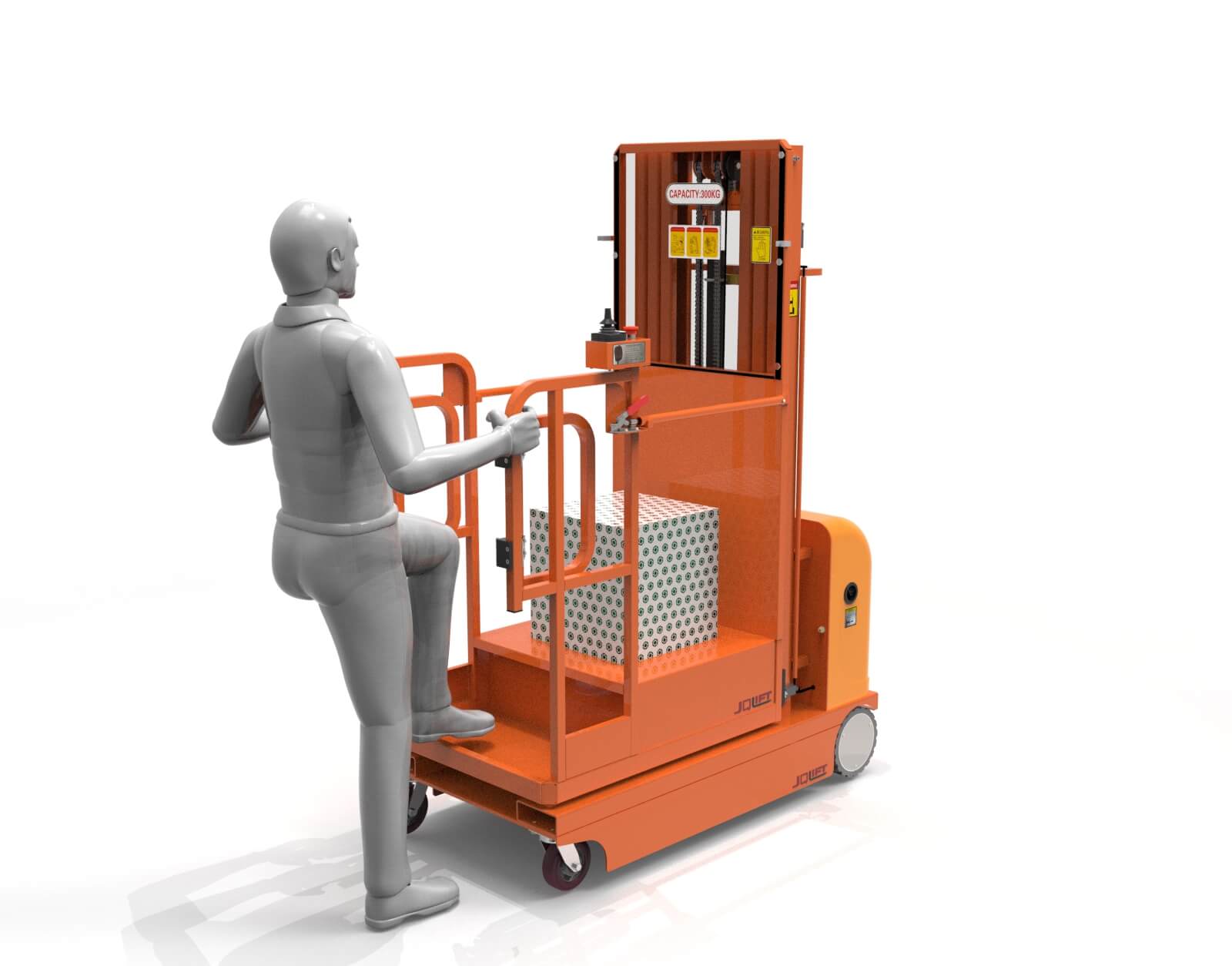

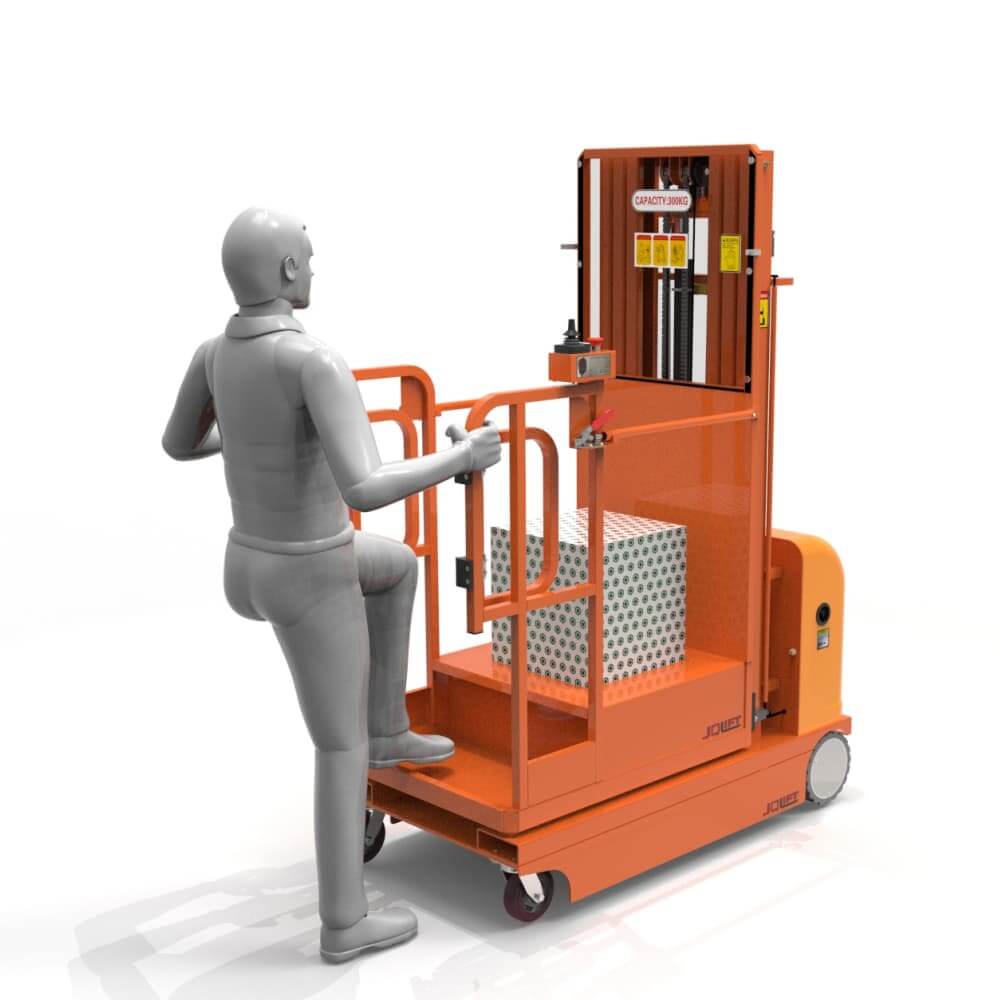

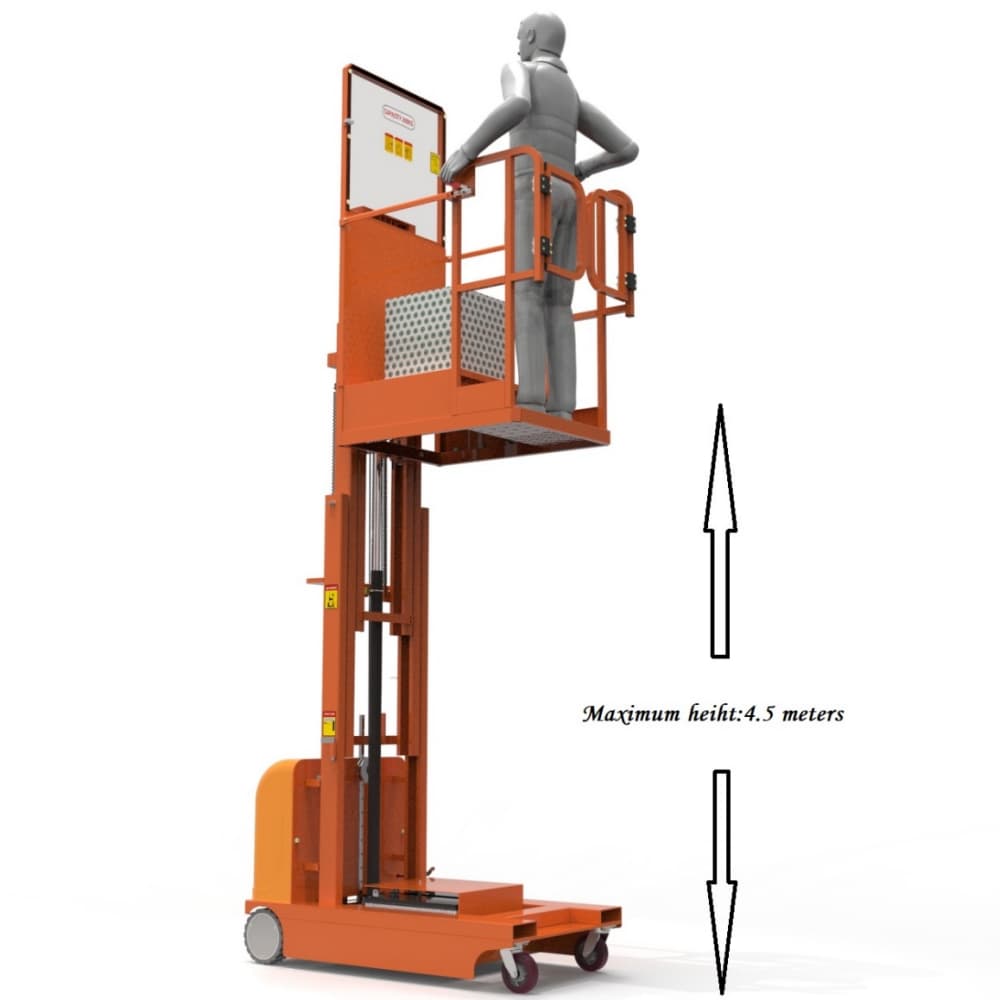

This aerial order picker is perfectly designed for warehouses and supermarkets. It can elevate to a maximum height of 4.5 meters, facilitating efficient access to high-positioned goods. With a load capacity of 661 pounds (300 kilograms ), it efficiently handles picking tasks. Equipped with two electric rear wheels, it ensures flexible steering, allowing smooth and agile movement in various storage settings.

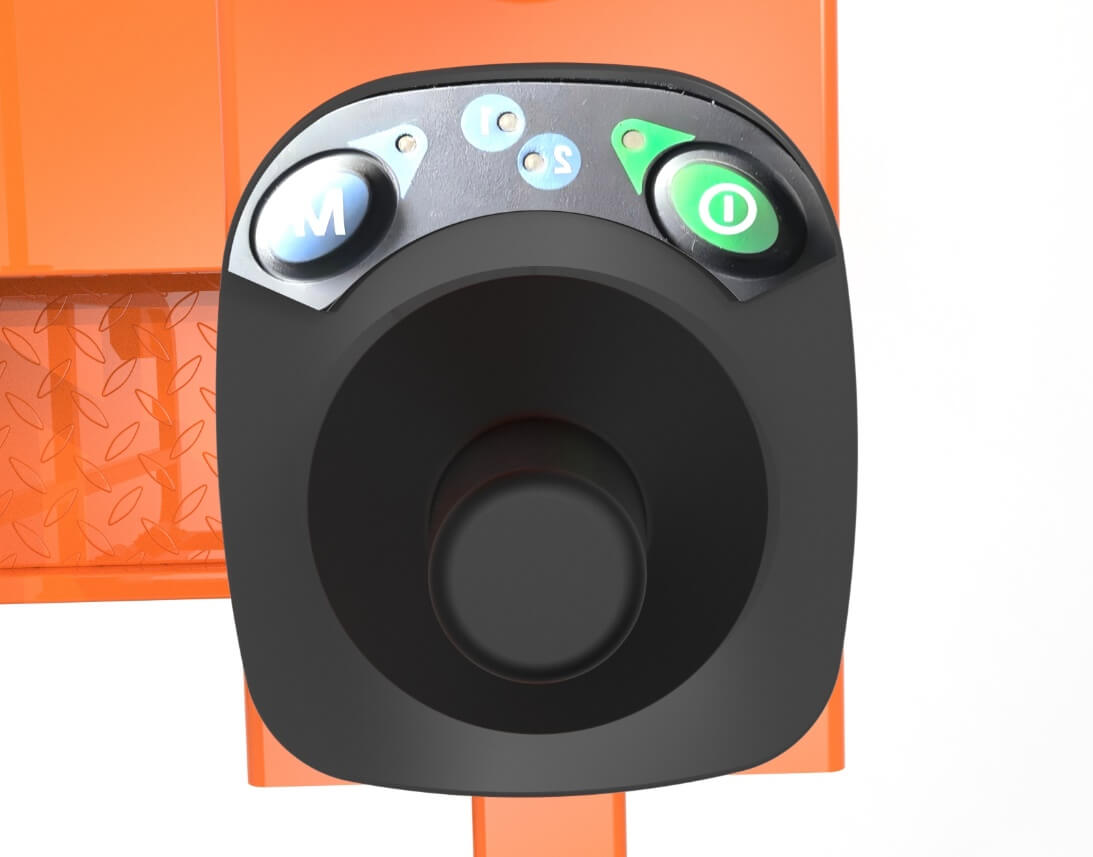

The compact control handle supports 360-degree omnidirectional steering, ensuring precise and accurate maneuvering.

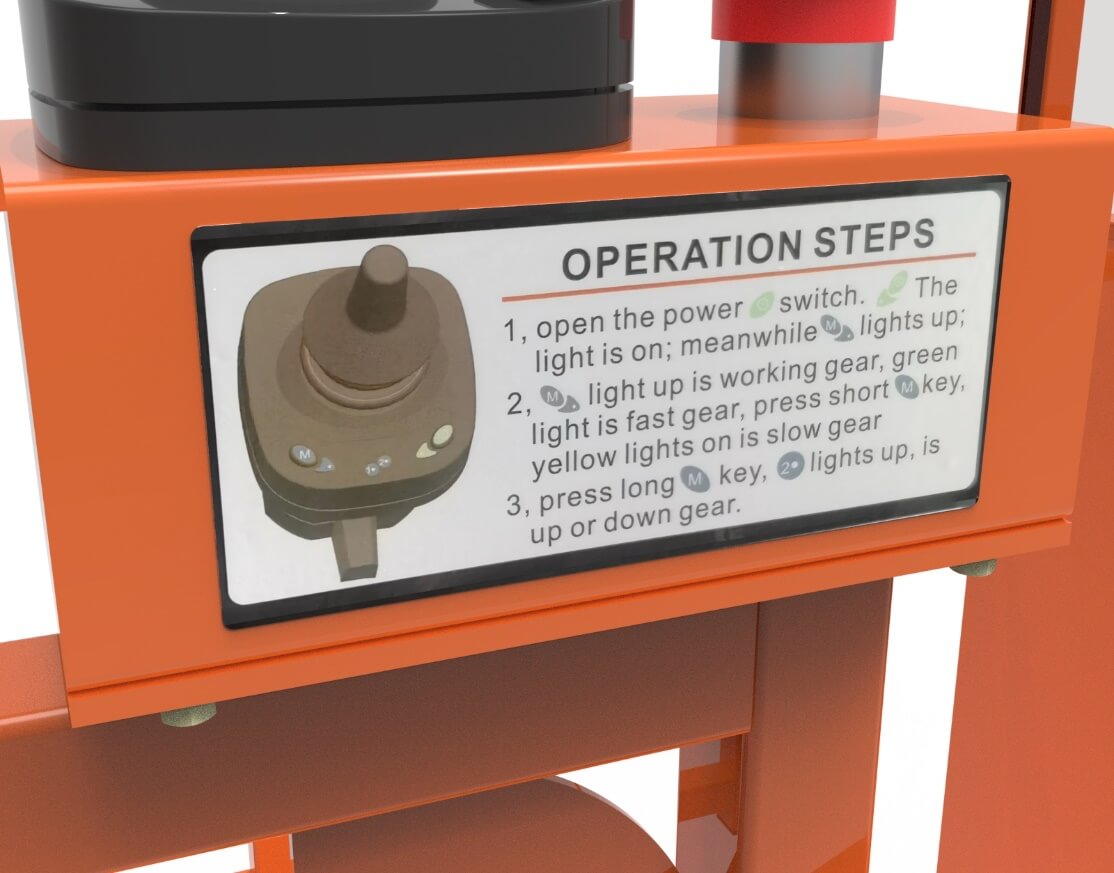

Operation Steps for the Handle.

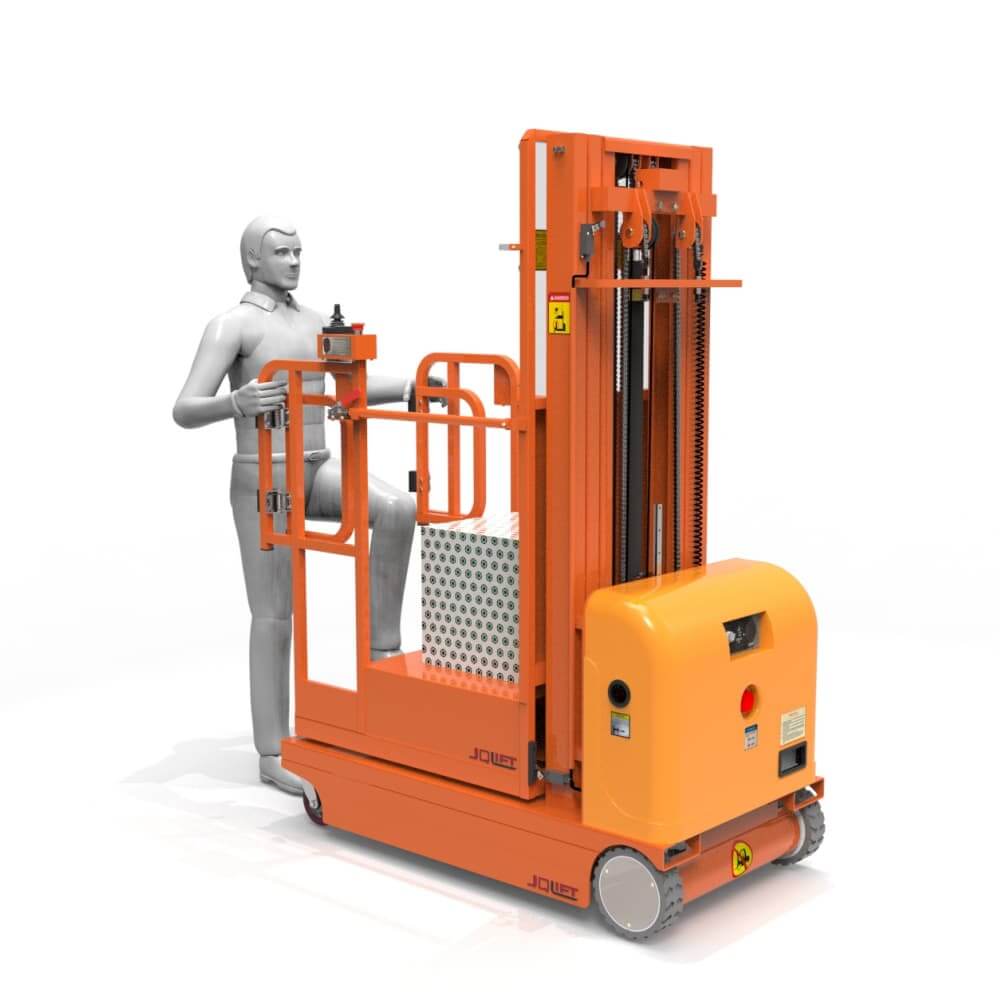

This equipment is equipped with standard safety features. It includes an anti-fall mechanism designed to prevent the platform from accidental drops when the C-channel mast gets stuck mid-air—caused by lubrication problems or extended service life. Additionally, it is furnished with an electronic level device, an anti-explosion tubing mechanism, and an overload alarm system.

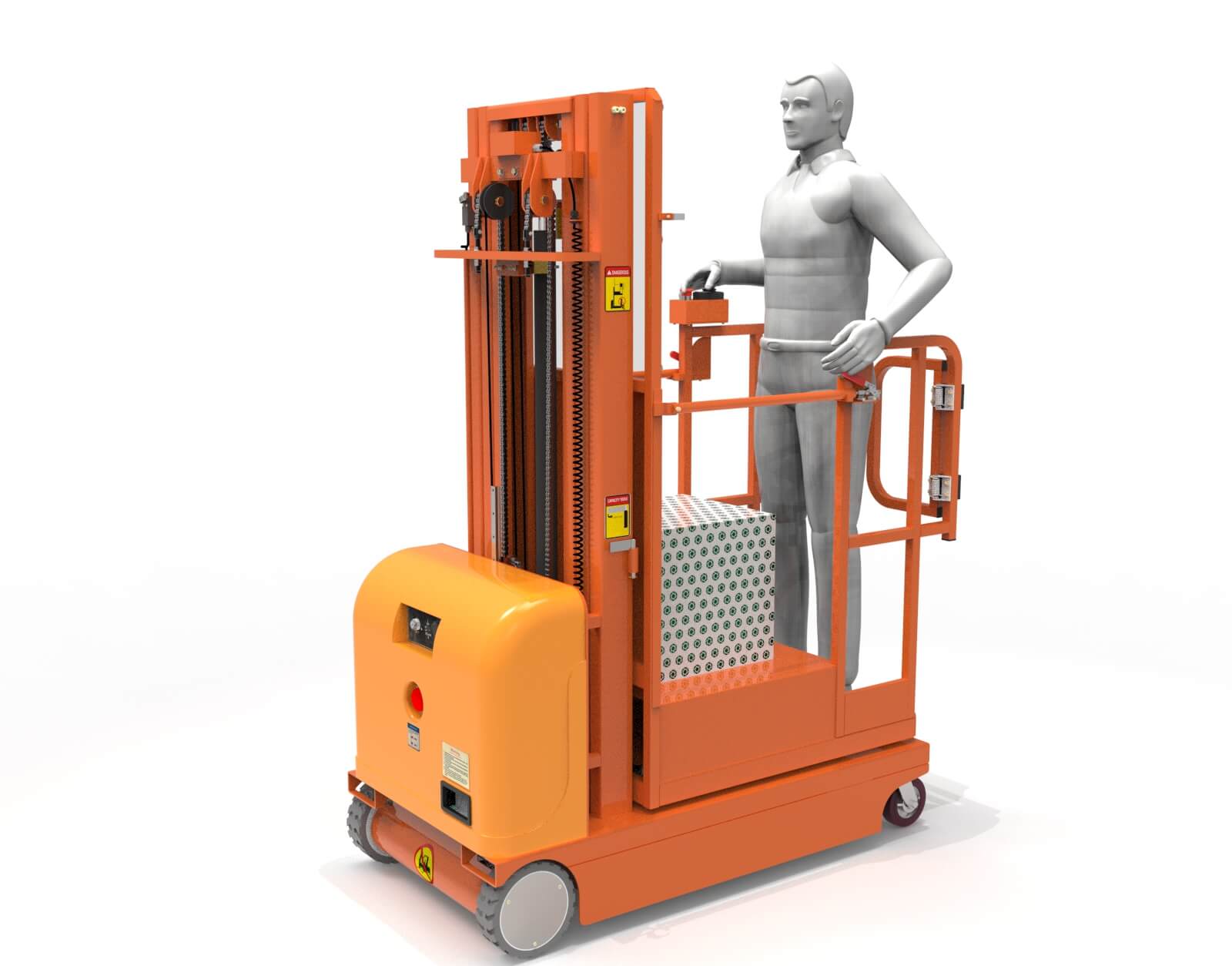

The stairs are made of high-quality checkered steel plates to prevent slipping.

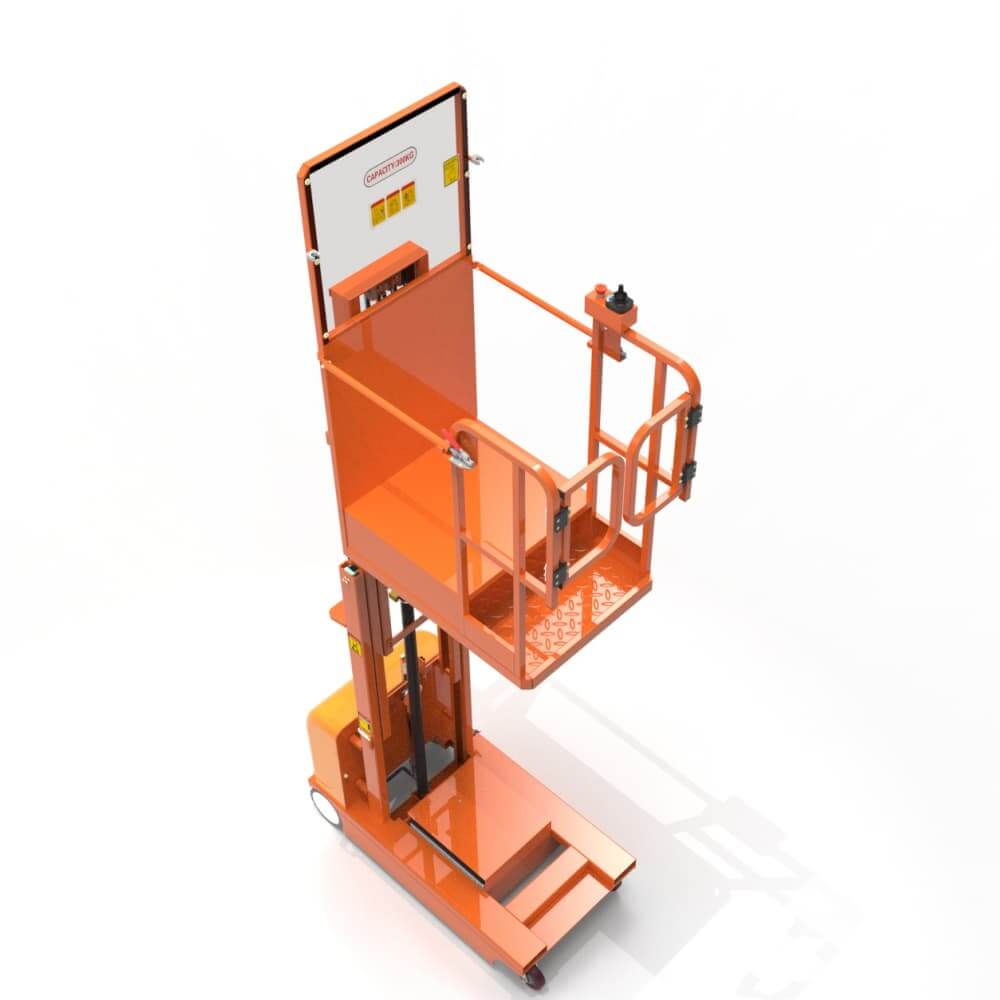

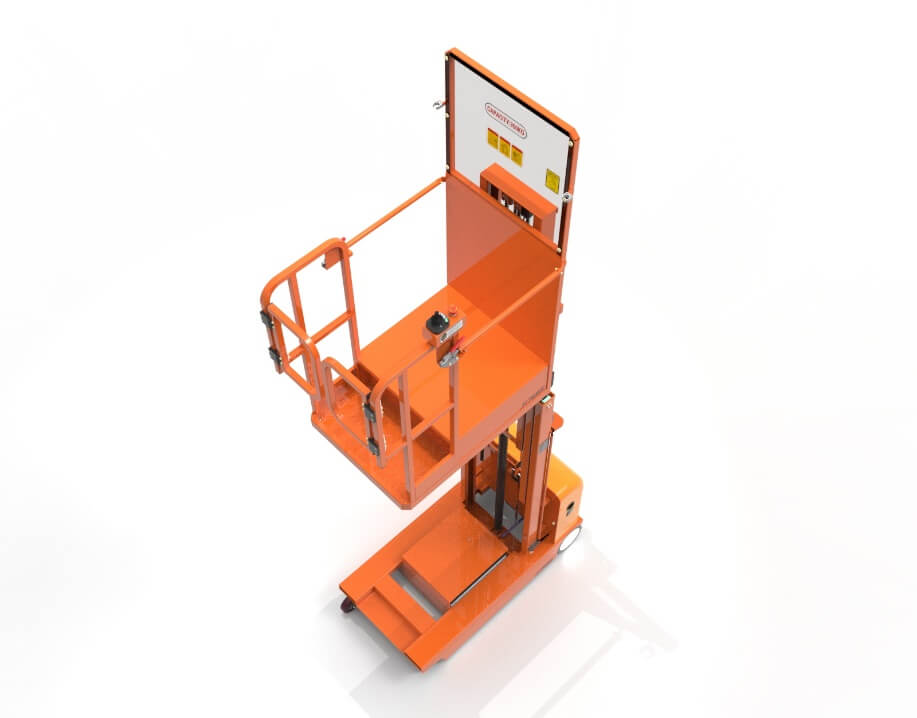

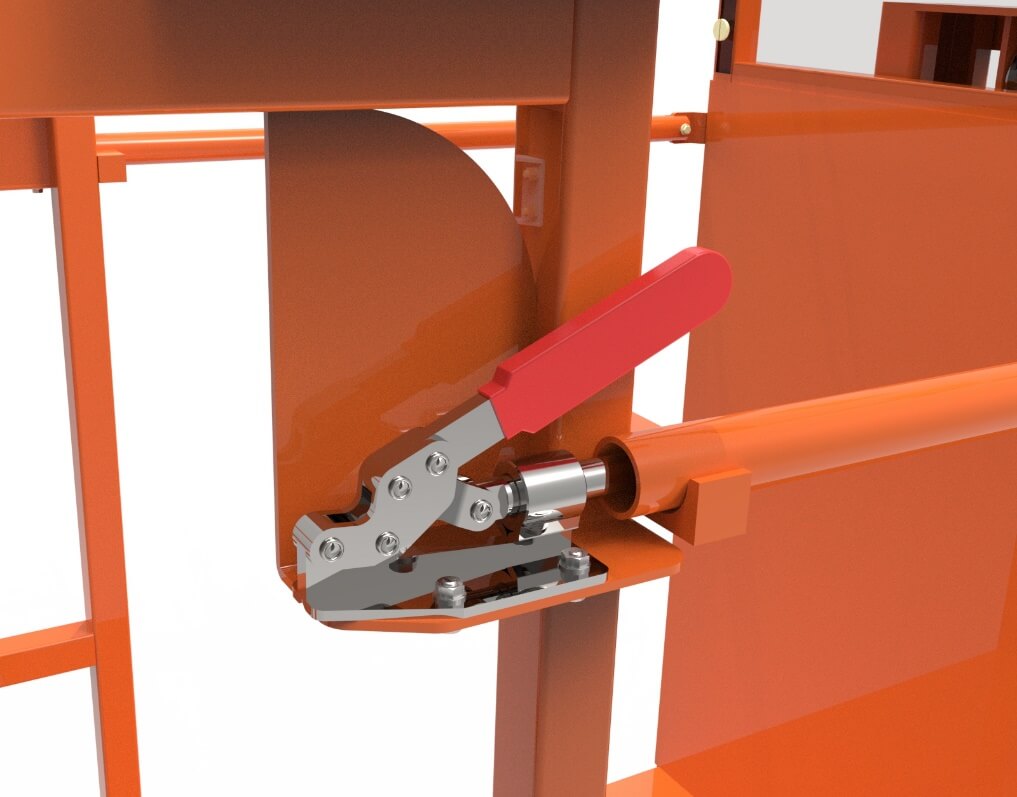

This guardrail locking mechanism is specifically engineered to prevent accidental cargo drops.

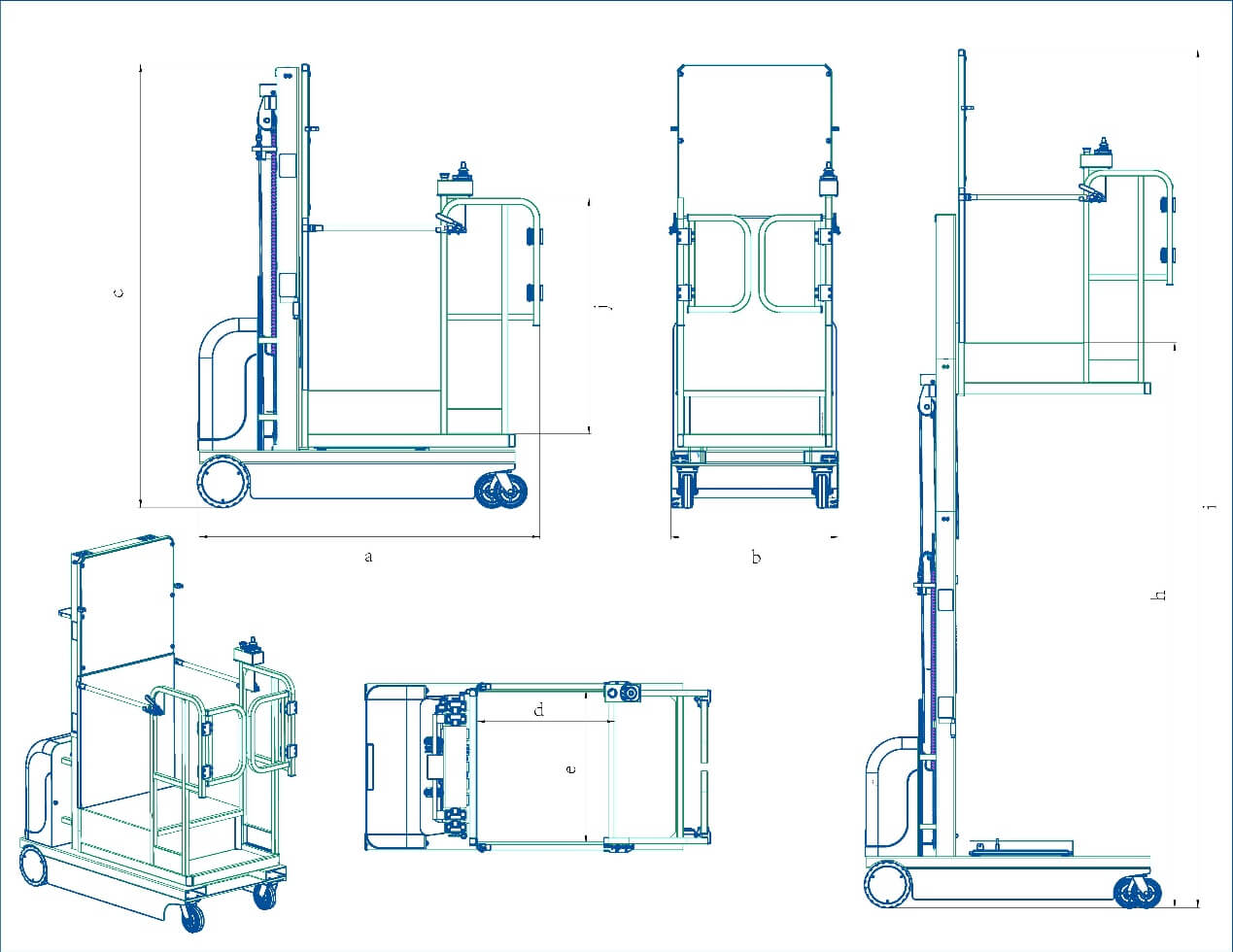

parameter
Max.platform Height (h)
2700
3000
3500
4000
4500
Max.machine Height (i)
3929
4379
5129
5310
5974
Overall Length (a)
1540
Overall Width （b）
760
Overall Height (c)
1765
1915
2165
1846
2010
Platform length (d)
630mm
Platform width (e)
690mm
Height of guardrail (j)
1070mm
Travel speed Km/h
0.8km/h-4km/h
Max load Kg
200Kg
Lifting Motor V/Kw
24V/2.2Kw
Drive motor V/KW
24V/0.5Kw
Minimum turning radius mm
1500mm
Max Climb Capability °
5°-8°
Charger V/A
24V/15A
Battery voltage/capacity V/Ah
24V/120Ah
Tire size mm
front wheel：Φ150mm*50mm
rear wheel：Φ230mm*80mm
Overall Net Weight Kg
560Kg
580Kg
600Kg
662Kg
682Kg
Support non-standard customization
This equipment offers enhanced safety features. It is equipped with an anti – over – topping device and an electronic level gauge, ensuring a higher level of security during operation.
In addition to safety upgrades, we also provide customization options. You can choose the color of the equipment according to your personal preferences, allowing it to better integrate with your working environment.
Moreover, we support the addition of extra features. For example, you can have a power outlet installed on the operating platform for convenient use of electrical tools. You can also opt to add an air pipe connector, which is especially useful for pneumatic tools. This flexibility ensures that the equipment can be tailored to meet your specific work requirements.
